Το Alpine ILX W690D ειναι δεκτης πολυμεσων με 7'' οθόνη αφης υψηλής ανάλυσης WVGA (800x480). Αναπαραγωγή FLAC, MP3, WMA playback (from USB). Διαθετει ραδιο (FM, AM, DAB, DAB+) και δεκτη Bluetooth. Είσοδος οπισθια USB. Ισχυς 4x50Watt (4x16Wrms), 3x RCA pre out.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

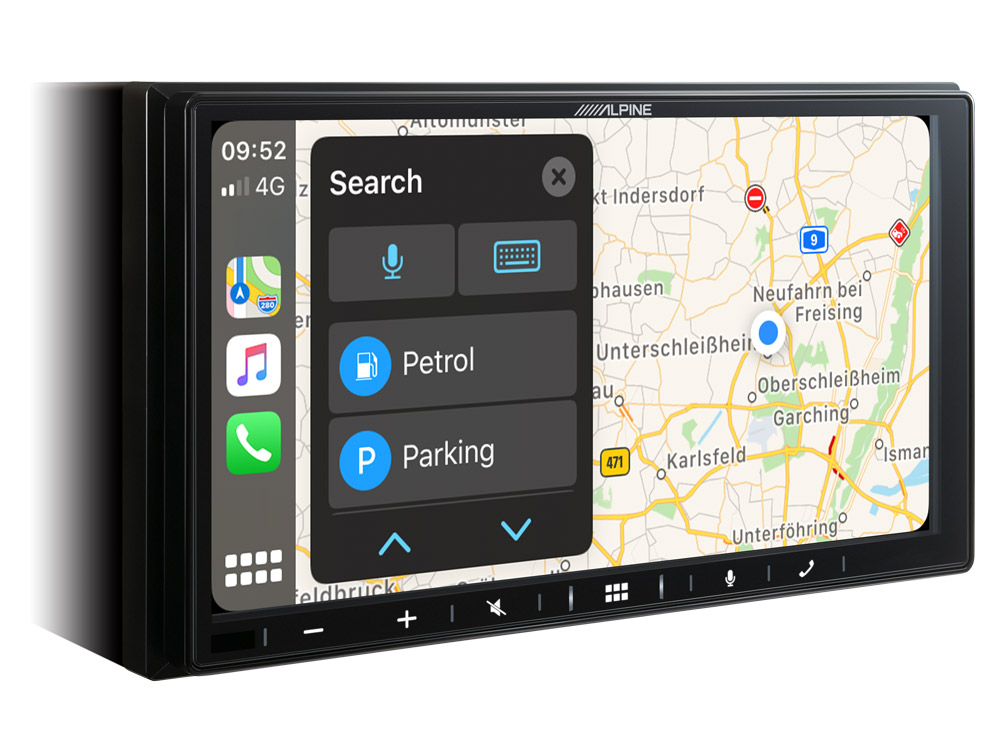

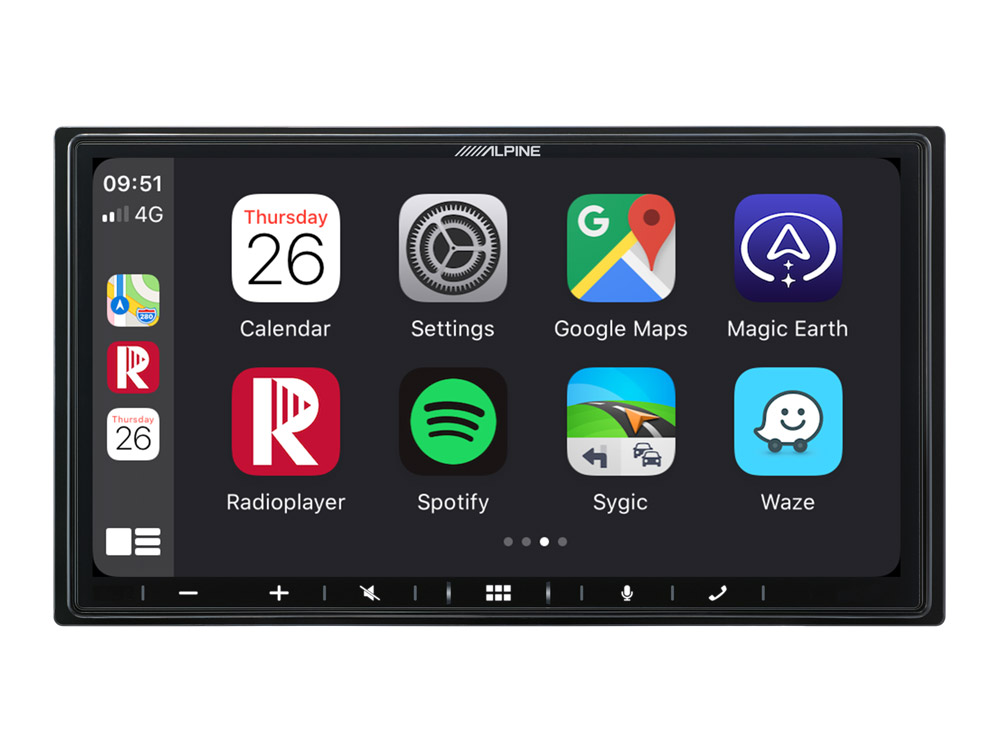

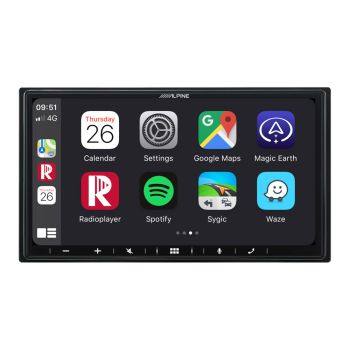

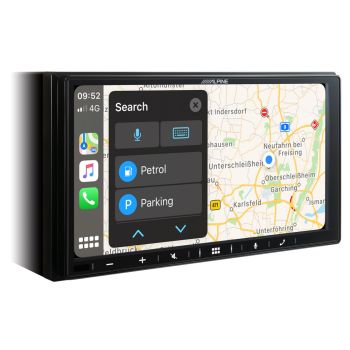

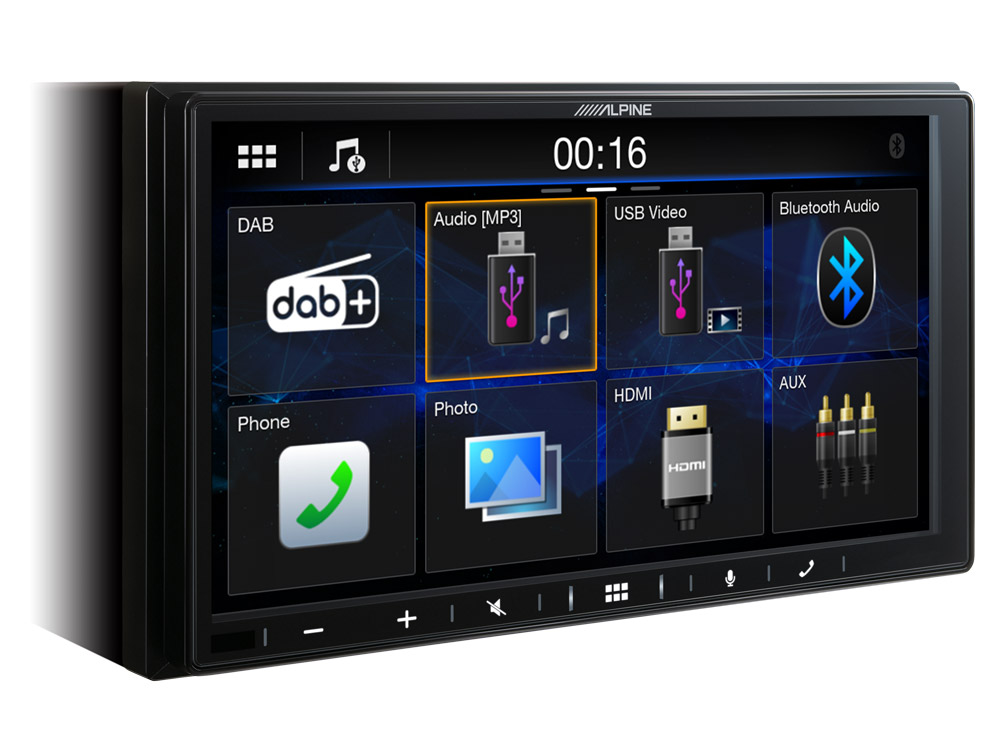

The Alpine iLX-W690D Digital Media Receiver features a 7-inch hi-res capacitive touchscreen, which works perfectly with smartphone connectivity features like Apple CarPlay and Android Auto. It is designed to give smartphone users all features they want and need to enjoy their car rides. The built-in DAB+ digital radio tuner lets you enjoy radio stations in excellent sound quality, while the high-speed charging function for smartphones ensures that your phone battery is rapidly charged. Bluetooth audio streaming allows everyone in the car to contribute with their phones and music to the party on the road.
The unit features a very shallow installation depth of only 6 cm, which allows installation even in vehicles without full DIN-sized installation docks.

Specifications

GENERAL

• 7-inch capacitive touch screen with swipe graphical user interface
• DAB+ Digital Radio Tuner
• AM / FM (RDS) Tuner
• Preset Stations (FM: 2x6 / DAB: 3x6 / AM: 1x6)
• Works with Apple CarPlay
• Works with Android Auto
• 5-Band Graphic EQ
• 10 EQ Pre-Sets
• Digital Crossover
• 6-Chanel Digital Time Correction
• Media Xpander
• Independent Source Volume Level Setting
• Built-in Bluetooth for audio streaming and hands-free operation
• Included microphone
• 1 A/V AUX Input (RCA)
• 1 Video Output (RCA)
• 2 RCA Camera Inputs (front and rear)
• HDMI Input
• 3 PreOuts (4 Volts)
• KTA-450 and KTA-200M Power Pack Ready
• Built-in Rear USB port
• USB video, audio and photo playback
• Steering Wheel Remote Control Ready
• Remote Control Ready
• Various vehicle specific installation kits available

SPECIFICATIONS
MONITOR SECTION

• Screen Size: 7 inch
• LCD Type: Transparent type TN LCD
• Operation System: TFT active matrix
• Number of Picture Elements: 1,152,000 pcs. (800 × 480 × 3 (RGB))
• Effective Number of Picture Elements: 99% or more
• Illumination System: LED

TUNER SECTION

• FM Tuning Range: 87.5 – 108.0 MHz
• AM Tuning Range: 531 – 1,602 kHz
• Signal-to-Noise Ratio: 65 dB
• DAB Tuning Range: 174.928 – 239.2 MHz
• Usable Sensitivity: -92dBm
• Signal to Noise Ratio Band III: 70dB

USB SECTION

• USB requirements: USB 2.0
• Max. Power Consumption: 1,500 mA (CDP Support)
• USB (Play From Device) / USB (Mass Storage Class)
• File System: FAT16/32
• Dynamic Range: 95 dB (at 1 kHz)
• Signal-to-Noise Ratio: 100 dB
• WAV / FLAC / MP3 / WMA / AAC Audio Playback (from USB)
• MP4 / MOV / AVI / WMV / MPG Video Playback (from USB)
• JPG / PNG / BMP Photo Playback (from USB)

HDMI SECTION

• Input Format: 720p/480p/VGA

BLUETOOTH SECTION

• Bluetooth Specification: Bluetooth V4.1
• HFP (Hands-Free Profile)
• PBAP (Phone Book Access Profile)
• A2DP (Advanced Audio Distribution Profile)
• AVRCP (Audio/Video Remote Control Profile)

GENERAL

• Power Requirement: 14.4 V DC (11–16 V allowable)
• Operating temperature: -20 degree Celsius to + 60 degree Celsius
• Power Output: 4x 50 Watts
• Weight: 1.0 kg

CHASSIS SIZE

• Width: 178 mm
• Height: 100 mm
• Depth: 60 mm
