QUAD II-Forty

Mονοφωνικος ενισχυτης 40wrms . H τιμη αφορα ζευγος τελικων .

4500.00€

Διαθεσιμότητα: 1-3 ημέρες

ΔΩΡΕΑΝ ΑΠΟΣΤΟΛΗ ΣΕ ΟΛΗ ΤΗΝ ΕΛΛΑΔΑ

Mονοφωνικος ενισχυτης 40wrms . H τιμη αφορα ζευγος τελικων .

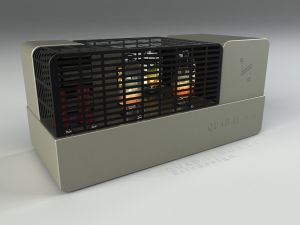

The Quad II-forty retains the elegance of the 1950s Quad II but with a level of sophistication, a build quality and finish rarely seen on any product old or new. The chassis has been substantially increased in size to accommodate the much larger components, all of which are hard wired by hand following a similar topology to the original. The modern listener demands a higher output than the fifteen watts of the original Quad II. The new Quad II-forty uses larger output valves, KT88s instead of KT66s, and a more robust power supply utilising a 5U4G rectifier valve. The input valves are now military specification 6SH7s instead of EF86s

Power Output 40WRMS
Total Harmonic Distortion @ 700Hz 0.3% at 40W
0.03% at 1W
Residual hum and noise Better than -80dB
Frequency response 10Hz to 30kHz (+0dB/-0.5dB)
Damping Factor 20 @ 700Hz (ref. 8 ohm)
Power Consumption 180VA maximum
Loudspeaker Taps 4 Ohm, 8 Ohm
Input valves 2 x 6SH7
Output valves 2 x KT88
Rectifier valve 1 x 5u4G
Sensitivity 1VRMS
Dimensions (H x W x D) 185 x 200 x 390mm
