O Tsakiridis Devices Reference Amplifier ειναι τηλεχειριζομενος δικαναλος ενισχυτης ταξης ΑB1. 2x100 wrms με λυχνιες KT170.  Ενσωματωνει την τεχνογνωσια 35 χρονων εκπεφρασμενη με τα ποιοτικοτερα υλικα (Mundorf Supreme Silver Gold Oil, Rike Audio QCap4 Copper Oil. αντιστασεις metal film 1%, ασημοκολληση WBT)

Δυνατοτητα ακροασης, ανταλλαγης και δοσεων.

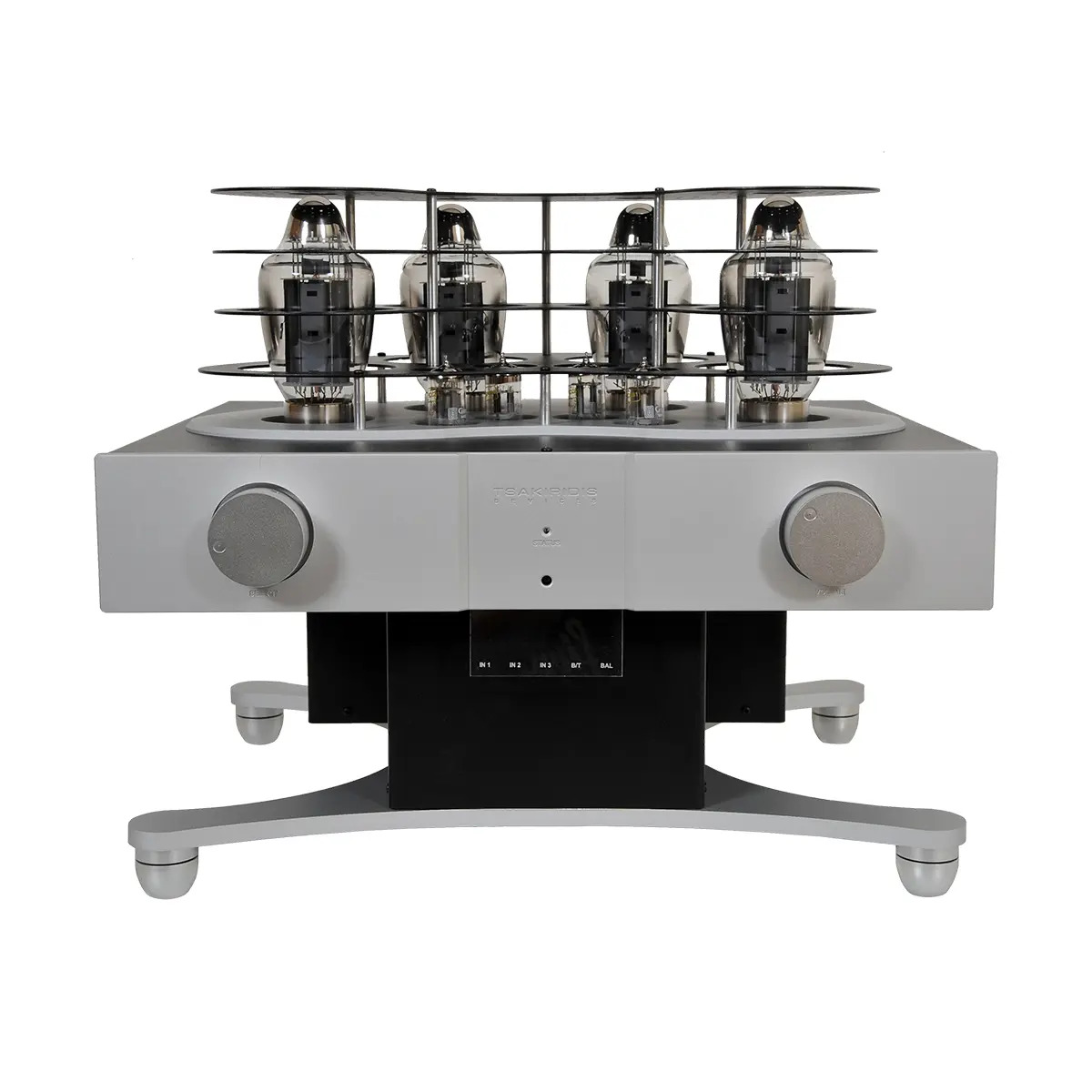

The Tsakiridis Devices Reference Amplifier powered by two KT170 tubes, the Reference Amplifier delivers up to 100W per channel, driving any loudspeaker with effortless authority. At its heart lie handcrafted 16-layer output transformers, wound with high-purity copper and premium core materials, ensuring exceptional clarity, imaging, and musical depth.

Every component is hand-selected and silver-soldered, featuring low-noise, metal film 1% tolerance low noise non-inductive power resistors and Mundorf Supreme Silver Gold Oil and Rike Audio QCap4 Copper Oil capacitors, chosen for their purity and tonal refinement.

The circuit employs self-bias configuration and independent, shielded compartments for each stage to minimize interference and distortion.

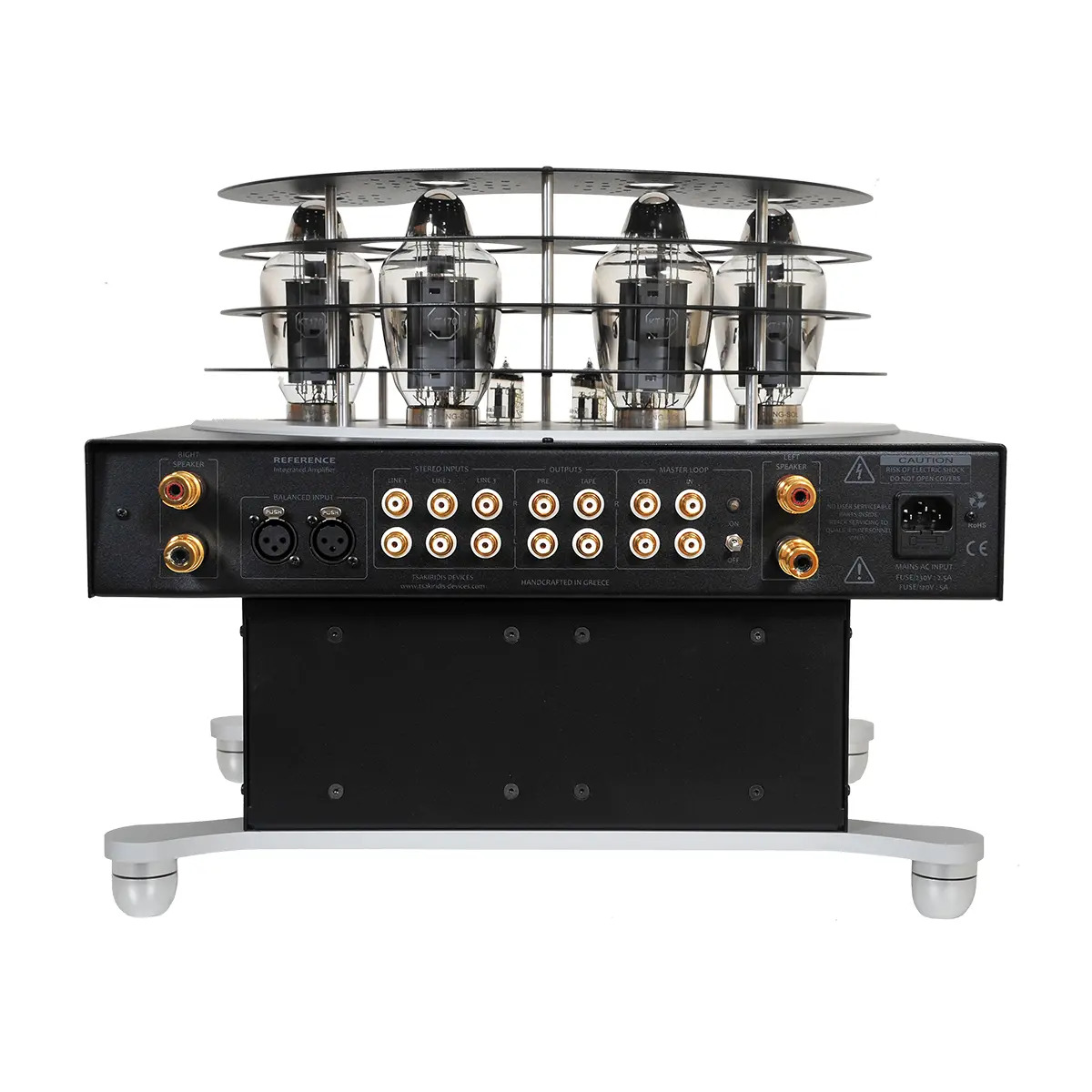

Inputs include 1 balanced XLR, 3 single-ended RCA and a master loop for external processors. A classic Alps Blue volume control, gold-plated connectors, WBT-0710 NextGen binding posts, and a solid aluminum remote control complete the design.

A tube monitoring and protection circuit constantly checks each KT170, preventing any damage and indicating faults via the front LED.

The Reference Amplifier is not just a technical achievement — it’s a statement of craftsmanship and passion. Designed, built, and tested in Greece, it embodies the essence of pure, emotive, high-end tube sound that connects you directly with the music.

Features

• Inputs: 3 single ended line inputs, 1 XLR balanced
• Outputs: 1 pre output, 1 tape output
• Other connections: Master loop
• Input selection: High grade signal relays
• Input/Output connectors: RCA, XLR gold plated
• Speaker connectors: WBT-0710 Next Gen
• Remote control: Yes
• Volume control: Blue Alps
• Power supply capacitors: High quality Long life electrolytic capacitors
• Signal capacitors: Premium quality Oil Capacitors (Mundorf / Rike Audio)
• Power resistors: Metal film 1% tolerance low noise non-indictive
• Low power resistors: Metal film 1% tolerance
• Power transformer: Handmade 400W
• Output transformer: Handmade 16 layer 6N copper high quality core
• Driving stage tubes: Premium quality 4x12AT7
• Power tubes: 4xKT170

Specifications

• Output Power: 2x100W
• Input impedance: 50 kOhm
• Output impedance: 6 Ohm
• Input sensitivity: 350mV
• Signal to Noise Ratio (SNR): 89db
• Channel separation: 78db
• Rise time: 6us at 10kHz
• Harmonic distortion: 10W at 1kHz 0.30%
• Frequency response: -3db 2Hz-87000Hz
• Power supply energy: 250Joule
• Power consumption: 290W
• Weight: 27kgr
• Dimensions (WxDxH): 41x36x38 cm
