Ο StormAudio Evo Processor ειναι AV home cinema προενιχυτης 20 εως 32 καναλιων. Υποστηριζει Dolby Atmos, Auro-3D, DTS:X Pro, IMAX Enhanced, MPEG-H, Sony 360 Reality Audio, Dirac, Roon.

Εγγυηση αντιπροσωπειας. Δυνατοτητα δοσεων.

The Evo is the first purely digital immersive sound processor on the home theater market. It's the only answer to pure digital installations that are now commonly required in "resimercial" projects, mixing studios or luxury marine markets.

With AES/EBU or AoiP (AES67/Dante) interfaces, it is also today the only processor on the market allowing for interfacing to Digital Cinema Processors playing DCP content and providing up to 32 channels in digital format to the network.

Variations

• Evo 20 AES/EBU: 20 channel AES/EBU output (RJ45)
• Evo 32 AES/EBU: 32 channel AES/EBU output (RJ45)
• Evo 20 AoIP: 20 channel AES67 input/output (RJ45)
• Evo 32 AoIP: 32 channel AES67 input/output (RJ45)

Features

• Compact and modular design
• Software-based upgradeable platform
• Advanced Decoder - StormAudio ADEC
• Decoding of up to 32 discrete channels (Auro 3D, Dolby Atmos, DTS:X Pro, IMAX Enhanced, MPEG-H, Sony 360 Reality Audio)
• Dirac Live licenses included: Room Correction + Multi-Subwoofer Bass Control + Active Room Treatment
• StormXT ambiance expander
• Expert Bass Management with flexible bass routing
• Multizone capability with Dirac Live calibration in each zone

Specifications

• Main Features:
  • Auro-3D
  • Dolby Atmos
  • DTS:X Pro
  • IMAX Enhanced
  • MPEG-H
  • Sony 360 Reality Audio
  • StormXT Channel Expander
  • All Grades of Dirac Live License Included
  • Dirac Live Active Room Treatment: Unlimited speakers
  • StormMonitoring Remote Monitoring
  • Output Channels: 20, expandable up to 32 channels optionally
• Surround Processing:
  • Decoding / Upmixing: 20 channels, expandable up to 32 channels optionally
  • Maximum Input Sampling Rate: 192kHz
  • Post-Processing Sampling Rate: 48kHz
  • Dirac Live Runtime with High-Resolution Mixed-Phase Filters
  • Standard & Expert Bass Management
  • Flexible Bass Routing: Up to 6 zones in Expert Mode
  • Multi-Subwoofer Channels: Unlimited
  • Multi-Way Crossover: Up to 4 per channel, 6–48dB/octave, Linkwitz-Riley / Butterworth
  • Parametric EQ: Up to 20 filters per channel
• HDMI:
  • 7 x HDMI Inputs
  • 2 x HDMI Outputs
  • HDMI 2.1a
  • HDCP 2.3
  • Matrix Capability for Multi-Room
  • 4K UHD
  • Rec. BT.709 / Rec. BT.2020
  • HDR10
  • HDR10+
  • HLG
  • Dolby Vision
  • Color Space / Subsampling: RGB, YCbCr, 4:4:4, 4:2:2, 4:2:0
  • Deep Color: 12bpc
  • Maximum Resolution: 8K / 4K 120fps, 18Gbps
  • 3D Support
  • OSD
  • ARC / eARC

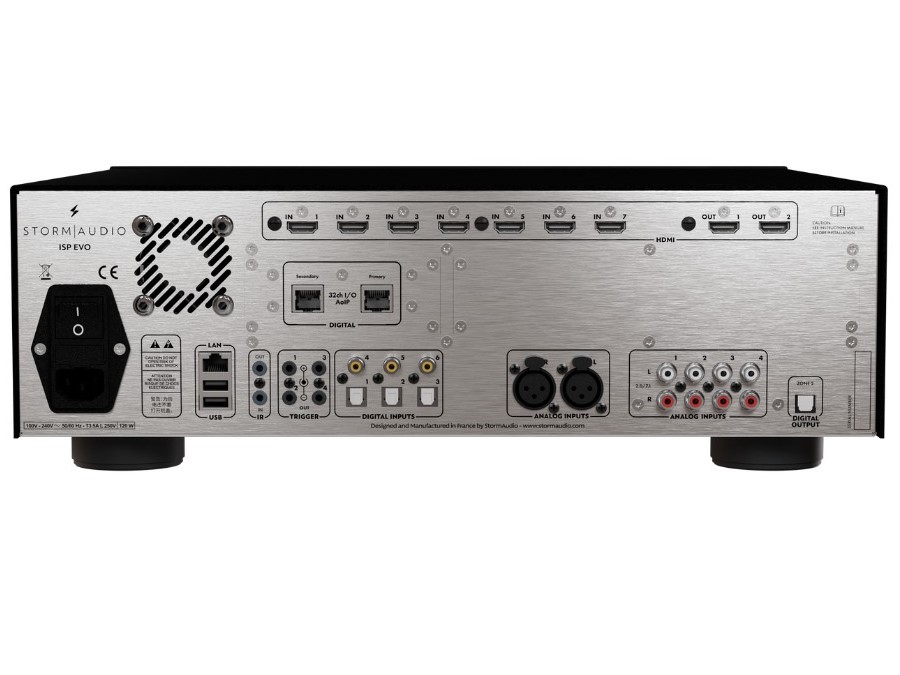

• Audio Inputs:
  • Roon Ready Endpoint
  • 3 x Coaxial Digital Inputs
  • 3 x Optical Digital Inputs
  • AES/EBU Digital Input: 16 channels, DCI compatible, optional
  • 1 x XLR Balanced Stereo Input
  • 4 x RCA Unbalanced Stereo Inputs
• Audio Outputs:
  • Zone 2 Stereo Downmix: Digital Optical
  • AES/EBU Digital Output: Up to 32 channels, optional
  • AES67 / Dante Audio over IP: Up to 32-channel output / 32-channel input, optional and not compatible with AES/EBU version
• Setup & Management:
  • Audio Zone Configuration
  • Individual Theater and Zone Source Selection: Main & Zone 2
  • Theater and Zone Listening Presets: Unlimited
  • Dirac Live Profiles: 10 per Theater / Zone
  • Setup Backup and Restore
  • Firmware Update via USB / Network
• Control & Connectivity:
  • 2 x USB Type-A Ports for Upgrade and Monitoring
  • Ethernet
  • 4 x Trigger Outputs
  • 1 x IR Remote Input
  • 1 x IR Remote Output with Input Loop-Through
  • Front-Panel IR Remote Sensor

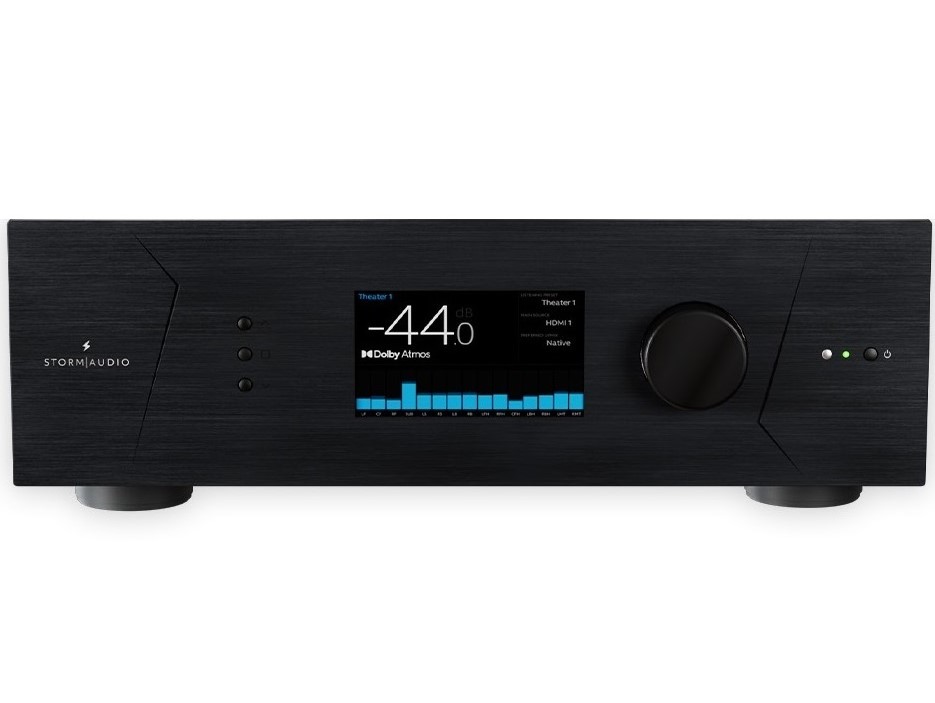

  • 5-inch TFT Front-Panel Display
  • Advanced Front-Panel Control
  • Web-Based Product Configurator
  • TCP/IP API-Based Control
  • StormRemote Control Application for iOS / Android
  • Crestron
  • Control4
  • Savant
  • RTI
  • ELAN
  • Logitech Harmony IR Database Integration
  • IR Remote Control Handset
• Power Supply:
  • Voltage: 100–240V AC
  • Type: SMPS
  • Range Selection: Universal
• Chassis: Home / rack installation with removable rack ears
• Size: 3RU
• Dimensions: 442 x 402.2 x 132.7 mm, W x D x H, excluding rack ears and feet
• Additional Rack Ear Width: 40 mm total
• Additional Feet Height: 20 mm
• Package Dimensions: 550 x 550 x 280 mm
• Net Weight: 8kg
