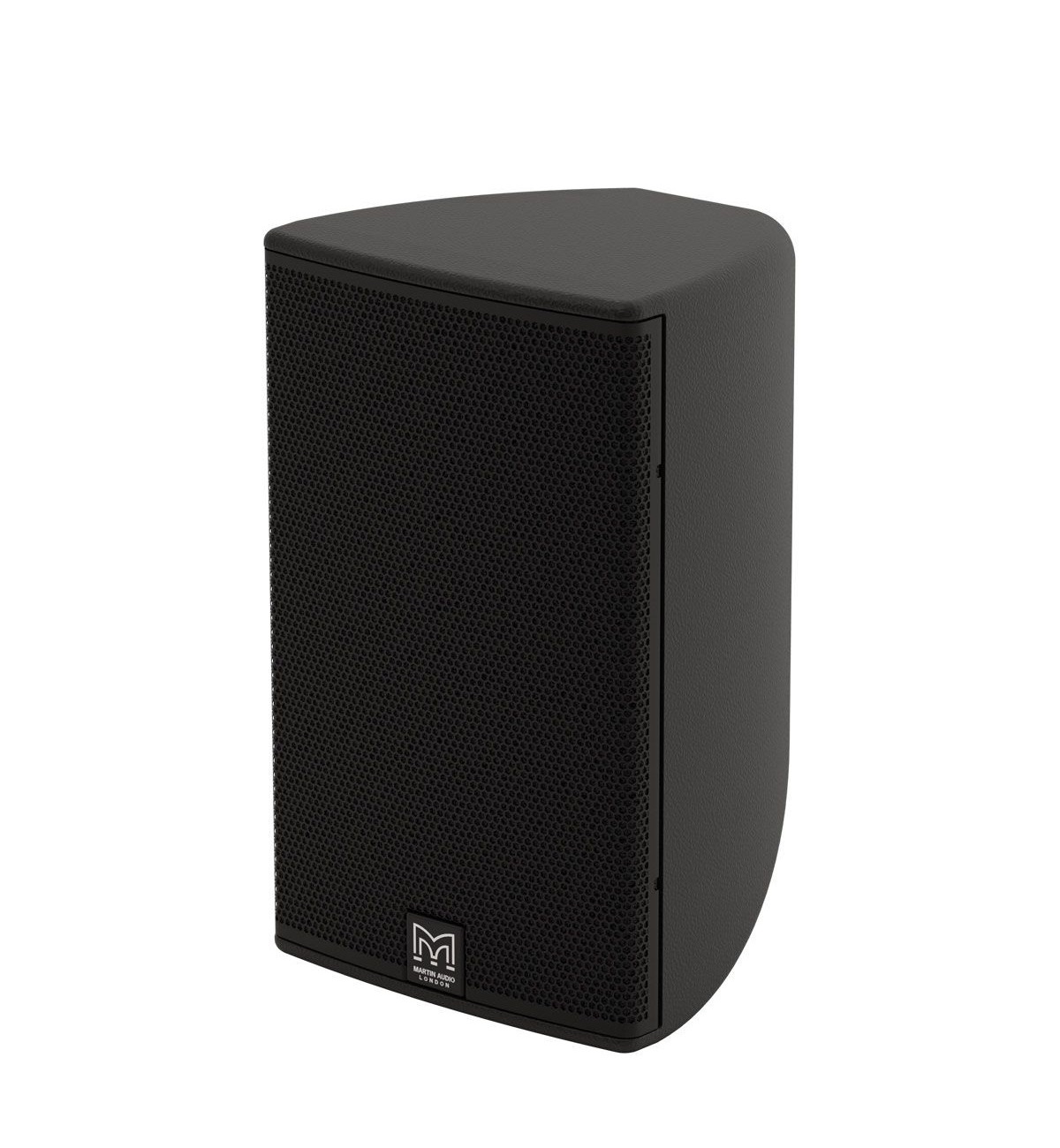

Το Martin Audio CDD6 ειναι επαγγελματικο ηχειο 8Ω, 2 δρομων με 1x 6.5" woofer και 1x 1" fabric dome tweeter.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

The ultra-compact CDD6 is a two-way passive loudspeaker system designed to fulfil the requirement for full-frequency dynamic performance from a very small enclosure. Featuring a 6.5” (165mm) LF/1” (25mm) HF Coaxial Differential Dispersion driver, its extremely small size and sleek lines make it ideal for visibly-unobtrusive applications. It can also be used as a fill system in conjunction with larger CDD Series models and, with the addition of an SX subwoofer, can reproduce surprisingly high levels of music program.

Applications

• Bars and Restaurants
• Museums and AV Spaces
• Convention Centres
• Hotels
• Retail Outlets
• Leisure Centres
• Houses of Worship

Features

• Ultra-Compact, CDD™ passive two-way system
• Coaxial Differential Dispersion™ technology
• Elegant ABS moulded enclosure
• User-rotatable coaxial drive unit
• Vertical and horizontal mounting options
• Screw-free perforated steel grille
• 8Ω nominal impedance
• Discreet mounting accessories
• Black or white standard colour options

Specifications

• Type: Ultra-compact, coaxial Differential Dispersion passive two-way system
• Frequency Response: 80 Hz - 20 kHz (±3 dB), -10 dB @ 70 Hz
• Driver:
  • LF: 6.5" (165 mm) / 1.5? (38 mm) voice coil, long excursion, ferrite motor
  • HF: 1" (25 mm) voice coil, fabric dome with neodymium motor
• Rated Power: 150 W AES, 600 W peak
• Sensitivity: 91 dB
• Maximum SPL: 113 dB continuous, 119 dB peak
• Nominal Impedance: 8 Ω
• Dispersion (-6 dB): 110°?80° horizontal, 80° vertical (user-rotatable)
• Crossover: 2.5 kHz passive
• Enclosure: 9 litre composite material
• Finish: Black or white textured paint
• Protective Grille: Perforated steel with scrim cloth backing (black or white)
• Connectors: Low-profile 13A push-lock
• Pin Connections: Input+, Input -, Link -, Link +
• Fittings: 4 ? M6 inserts for wall / ceiling brackets
• Dimensions (W ? H ? D): 21.0 ? 32.5 ? 21.0 cm
• Weight: 5.69 kg
