Το Dorpo X300 είναι 8K UHD media player με επεξεργαστή Amlogic S928X-K, μνήμη 6GB LPDDR4X και αποθήκευση 64GB eMMC. Υποστηρίζει έξοδο HDMI 2.1a έως 8K@60fps και 4K@120fps, 12-bit color depth και BT.2020, καθώς και HDR formats Dolby Vision, HDR10+, HDR10 και HLG. Υποστηρίζει Dolby/DTS bitstream και PCM έως 192kHz, διαθέτει DAC AKM4432 για την αναλογική έξοδο RCA, ενσωματωμένη θύρα SATA 3.0 για δίσκο 3.5" έως 24TB, καθώς και συνδεσιμότητα Gigabit Ethernet και Wi-Fi 6. Εξοδοι: 1x RCA Line, 1x Optical και 1x Coaxial.

Εγγύηση Αντιπροσωπείας. Δυνατότητα δόσεων.

Key Points

8K/4K high-frame-rate HDMI output with HDR formats
X300 supports HDMI 2.1a video output up to 8K@60fps and 4K@120fps. It supports Dolby Vision, HDR10+, HDR10 and HLG, with 12-bit color depth and BT.2020 wide color gamut for compatible displays and projectors.

Audio bitstream support and dedicated DAC for analogue output
The player supports Dolby and DTS bitstream output and PCM up to 192kHz over HDMI and S/PDIF. It also includes an AKM4432 DAC for stereo analogue RCA output, allowing direct connection to integrated amplifiers or active speakers.

Local-library architecture with internal HDD bay
An internal 3.5" SATA 3.0 HDD bay supports capacities up to 24TB, enabling local playback of large movie/music libraries and reducing dependency on external USB storage for high-bitrate content.

Network performance and control options for AV integration
X300 includes Gigabit Ethernet and dual-band Wi-Fi 6 for network playback and system control. Integration options include HDMI CEC, RS232, Trigger in/out, LAN control and smartphone app control, alongside an IR/BT dual-mode remote.

Specifications

• General Specifications
  • Model: Dorpo X300
  • Product type: 8K UHD Media Player
  • System: FunplayUI 2.0 (based on Android 11)
  • CPU: Amlogic S928X-K
  • GPU: ARM Mali-G57 MC2
  • Memory: 6GB LPDDR4X
  • Internal storage: 64GB eMMC
  • DAC: AKM4432
  • Remote control: Backlit IR + Bluetooth dual-mode remote with learning + air mouse
• Video (HDMI Output)
  • HDMI output: HDMI 2.1a
  • Video output: 8K@60fps, 4K@120fps
  • HDR formats: Dolby Vision, HDR10+, HDR10, HLG
  • Color depth: 12-bit
  • Color gamut: BT.2020 wide color gamut
• Audio
  • HDMI audio: Dolby, DTS, PCM up to 192kHz
  • Coaxial output: Dolby, DTS, PCM up to 192kHz
  • Analogue audio output (RCA):
    • Output level: 2.1Vrms (±0.1Vrms)
    • SNR: >103dB @ 1kHz
    • DNR: >97dB @ 1kHz
    • Crosstalk: >114dB @ 1kHz
    • Frequency response: -1 ~ +0.3dB (20Hz–20kHz)
• Decoding Support
  • Video decoding: H.265 / AV1 / VP9 / AVS3 / AVS2 up to 8K@60fps
  • HDR decoding: Dolby Vision, HDR10, HDR10+, HLG

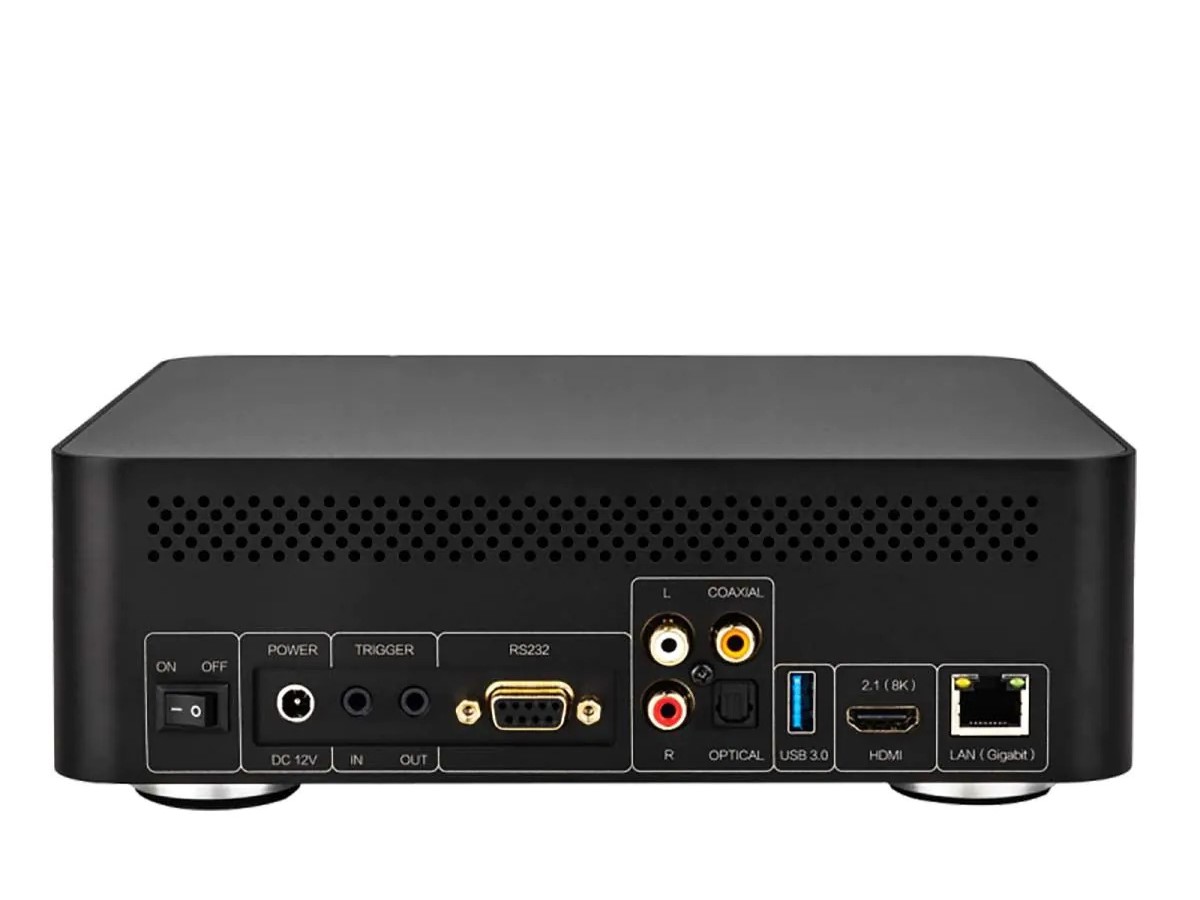

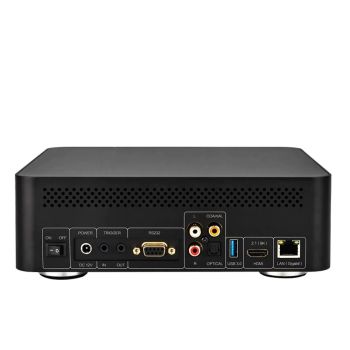

• Connectivity & Interfaces
  • USB ports:
    • USB 3.0 × 3
    • USB 2.0 × 1
  • HDD bay: 3.5" SATA 3.0 HDD bay (up to 24TB)
  • Network:
    • LAN: 10/100/1000 Mbps (Gigabit Ethernet)
    • Wi-Fi: Dual-band 2.4G + 5G Wi-Fi 6
  • Audio outputs:
    • Analogue stereo output: RCA (L/R)
    • Digital audio output: Coaxial / Optical (S/PDIF)
  • Control:
    • Bluetooth remote control
    • IR control
    • RS232
    • HDMI CEC
    • Trigger in/out
    • LAN control
    • Smartphone app control
• Power
  • Power supply: Switching power supply
  • Mains input: 100V–240V, 50/60Hz
• Dimensions
  • Dimensions (W × D × H): 230 × 188 × 68 mm (excluding feet)
