JL Audio MHD600/4-24V - 4 καναλιων

Ο JL Audio MHD600/4-24V ειναι τετρακαναλος ενισχυτης 4x150wrms στα 4ohms class D. Διαθετει ενεργο κροσσοβερ HiPass και LowPass (για sub). Δεχεται τροφοδοσια 24V DC.

1433.00€

Διαθεσιμότητα: 1-3 ημέρες

ΔΩΡΕΑΝ ΑΠΟΣΤΟΛΗ ΣΕ ΟΛΗ ΤΗΝ ΕΛΛΑΔΑ

Ο JL Audio MHD600/4-24V ειναι τετρακαναλος ενισχυτης 4x150wrms στα 4ohms class D. Διαθετει ενεργο κροσσοβερ HiPass και LowPass (για sub). Δεχεται τροφοδοσια 24V DC.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

For 24V systems only: 4-Channel Class D Marine Full-Range Amplifier, 150 W x 4 @ 1.5-4 Ω

This compact, multi-channel powerhouse employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 150 W x 4 or 300 W x 2. Tight power supply regulation keeps distortion down and maximizes sound quality.

The MHD600/4-24V is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. It can also be deployed, on its own, as a very capable 3-channel system amplifier with 150W x 2 to the satellites and 300W x 1 to a subwoofer system.

This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.

This amplifier is designed for operation in vessels with 24 volt, negative-ground electrical systems. Use of this product in vessels with positive ground and/or voltages other than 24 V may result in damage to the product and will void the warranty.

Rated Continuous (RMS) Power @ 28.8 V

@ 4 Ω	150 W RMS x 4
@ 3 Ω	150 W RMS x 4
@ 2 Ω	150 W RMS x 4
@ 1.5 Ω	150 W RMS x 4
Bridged @ 8 Ω	300 W RMS x 2
Bridged @ 4 Ω	300 W RMS x 2

Rated Continuous (RMS) Power @ 25 V

@ 4 Ω	150 W RMS x 4
@ 3 Ω	150 W RMS x 4
@ 2 Ω	150 W RMS x 4
@ 1.5 Ω	150 W RMS x 4
Bridged @ 8 Ω	300 W RMS x 2
Bridged @ 4 Ω	300 W RMS x 2

General Specifications

Frequency Response	6 Hz - 30 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power	>110 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W	>88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω	>300 / 50 Hz
Damping Factor @ 2 Ω	>150 / 50 Hz
THD+N @ Rated Power	<0.03% @ 4 Ω per Ch.
Input Voltage Range @ RCA Inputs	Switchable from 200 mV - 2 V RMS to 800 mV - 8 V RMS
Min.Copper Power / Ground Wire Gauge	4 AWG wire
Fuse Rating	25 A (AFS, AGU or MaxiFuse™)

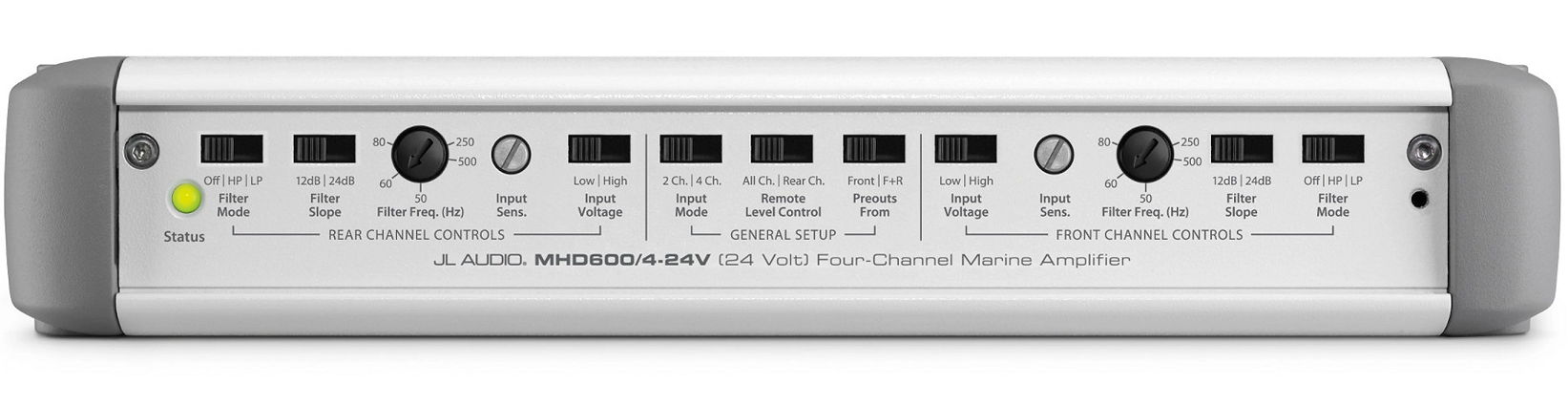

Signal Processing

Filter Mode(s)	Low-Pass or High-Pass
Filter Slope(s)	12/24 dB/octave
Filter Frequency Range	50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers	Yes
Filter Defeat Function	Yes
Remote Level Control	Optional (HD-RLC)
Remote Level Modes	2 or All Channels
Channel Input Mode Switch	Yes (2/4 ch.)
Pass-Through Preamp Output	Buffered
Source Channel Selection for PreOuts	Yes
