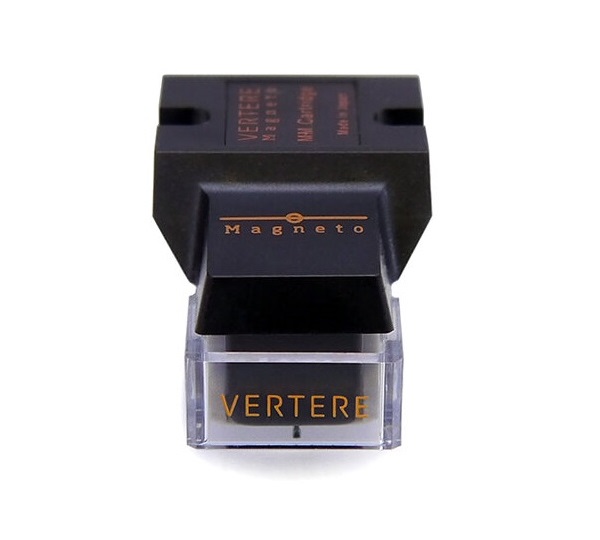

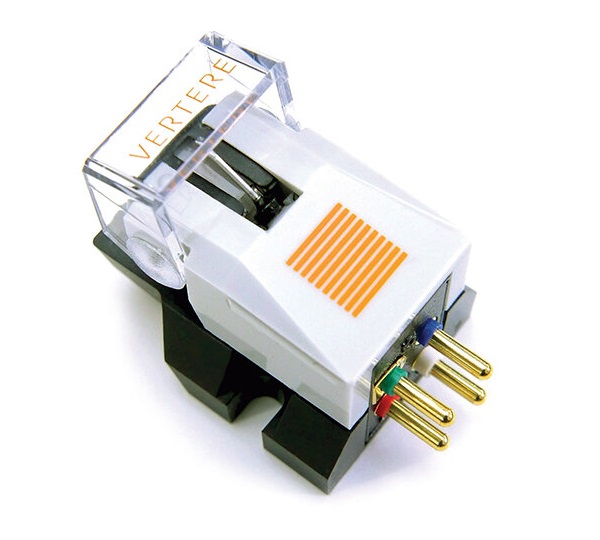

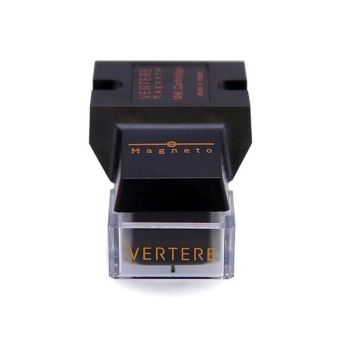

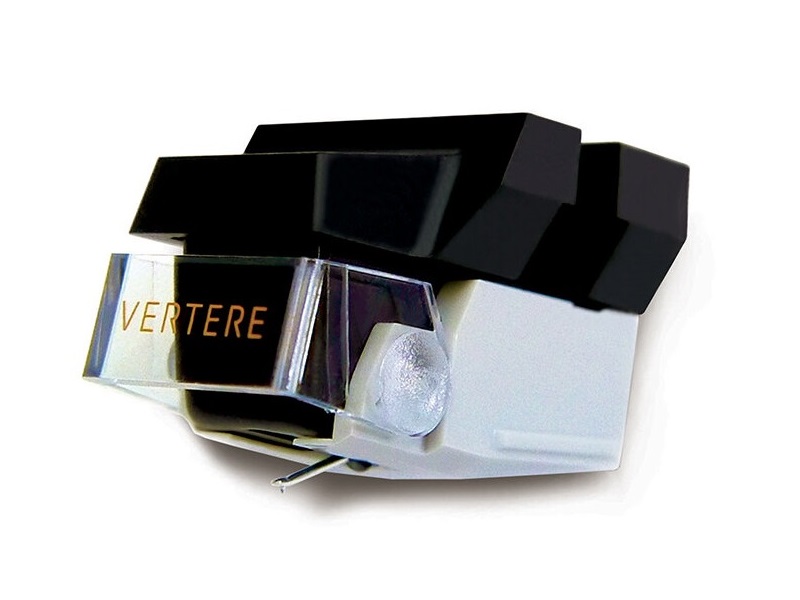

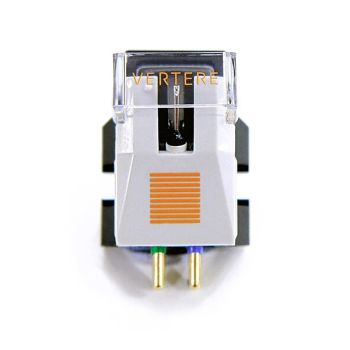

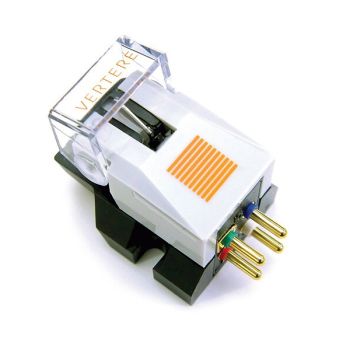

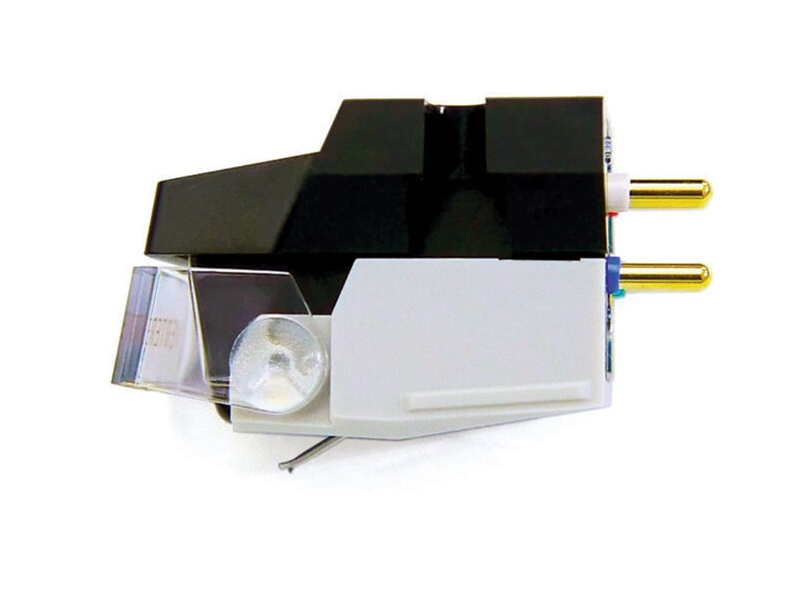

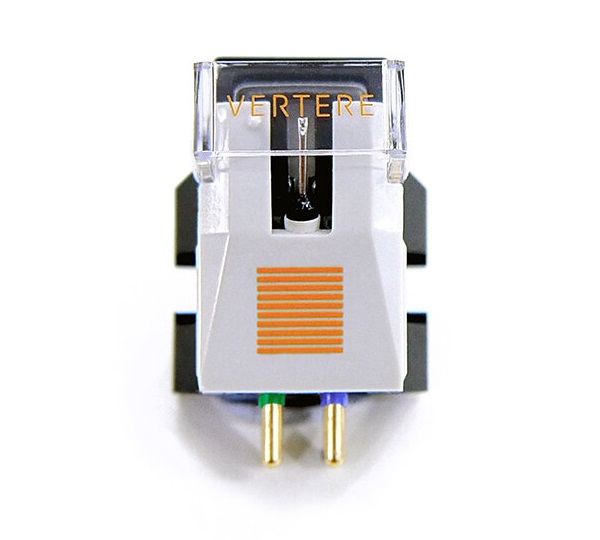

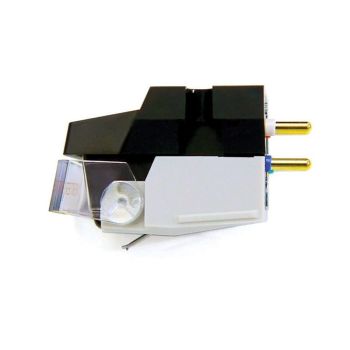

Η Vertere Magneto ειναι κεφαλη ΜΜ με ελλειπτικη βελονα. Frequency response 20Hz-23,000Hz, εξοδος 4.0mV. Made in England.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

The Dual Magnet design replicates the structure of the cutter head. A ‘V’ form two magnet design mimics the Left & Right channel sides of the record groove. This feature, with the permalloy centre shield plate, provides a higher frequency response with electrical crosstalk typically better than 40dB.

The Magneto utilises a finely finished Elliptical stylus to ensure outstanding tracking ability and super quiet tracing of the record groove. Use of laminated Para-toroidal coils with ‘V’ geometry of the magnets also gives rise to higher efficiency in generating the output signal.

The Magneto is an absolutely gem of a cartridge for any starter record playing system. It is factory fitted to our own DG-1S ‘Plug & Play’ Dynamic Groove record player package to provide you with an unparalleled musical performance.

Features

• Replaceable Stylus
• Integrated Stylus Guard
• Stainless Steel Fixing Bolts, Washer & Hex Thumb Nuts
• Easy Alignment Assist Marking

Specifications

• Frequency Response 20 - 23,000Hz
• Channel Separation 27dB (1kHz)
• Output Channel Balance 1.5dB (1kHz)
• Output Voltage 4.0mV (1kHz, 5cm/sec.)
• Vertical Tracking Angle 23?
• Vertical Tracking Force Range
• 1.8 – 2.2g (2.0g standard)
• Stylus Shape Elliptical Bonded
• Stylus Size 0.3 x 0.7 mil
• Stylus Construction Bonded Round Shank
• Cantilever Aluminium Tube
• Coil Resistance 800Ω (DC)
• Static Compliance 35 x 10?? cm/dyne
• Dynamic Compliance 8 x 10?? cm/dyne (100Hz)
• Recommended Load Impedance 47,000Ω
• Recommended Load Capacitance 100 – 200pF
• Weight 6.4g
• Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm
