Η Hana Umami Black ειναι κεφαλη κινητου πηνιου, χαμηλης εξοδου (low output), με diamond cantilever και διαμαντι nude microline. Εξοδος 0.3 mv.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Key Innovations

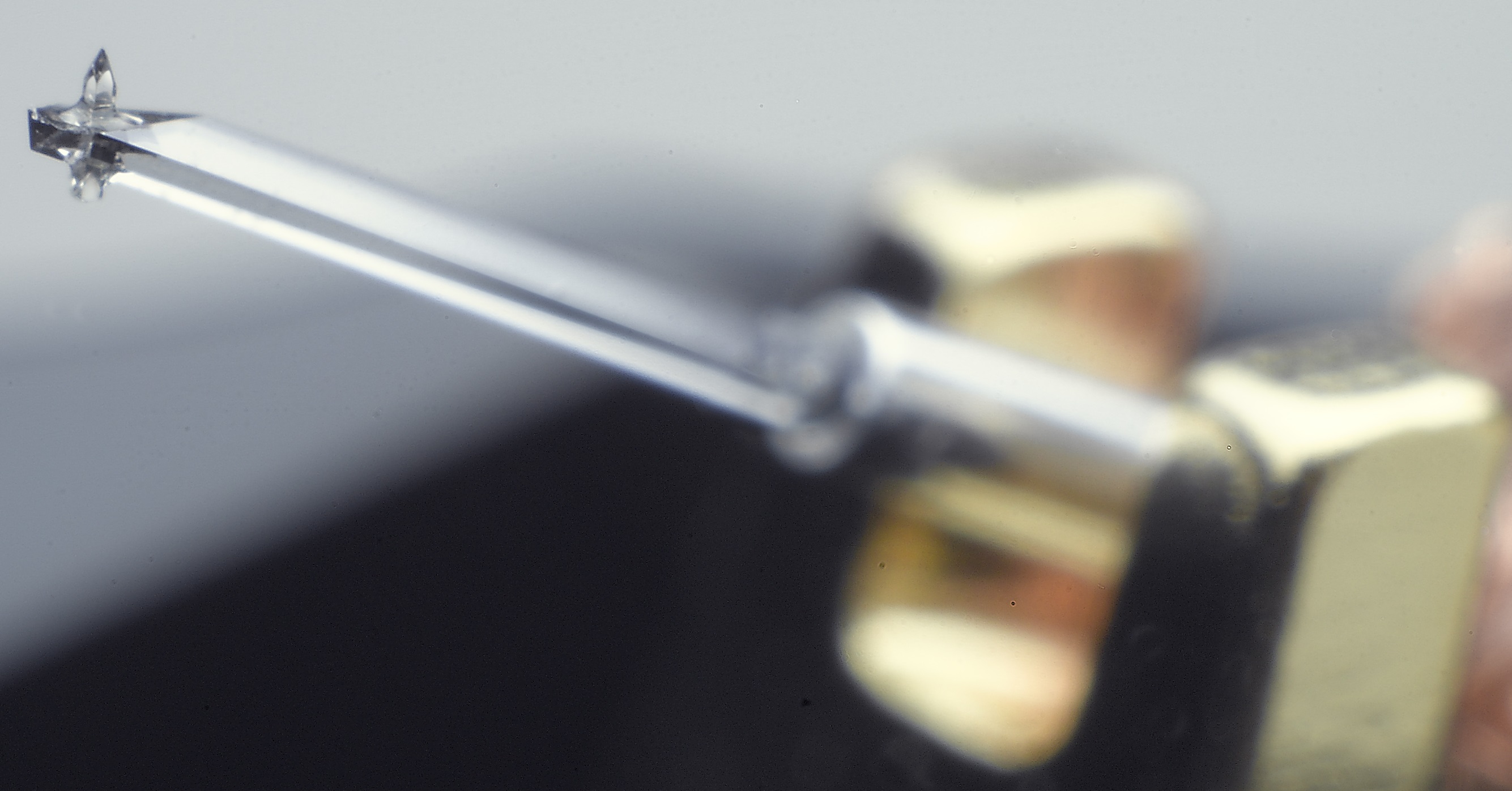

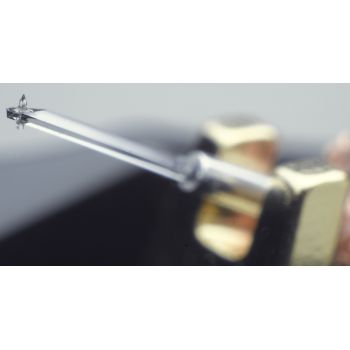

• Diamond Cantilever – First ever in a HANA cartridge, the diamond cantilever provides maximum rigidity for direct, precise signal transmission and exceptional clarity.
• High-Efficiency “OKD” Moving Coil Generator – Features an Integrated Pole Piece & Rear Yoke with Inverted U-shaped Front Yoke, cryogenically treated for higher signal purity.
• Inverted U Front Yoke – Controls resonance and aligns the magnetic field, creating a homogeneous flux field and minimizing tracing error.
• High-Power Rare Earth Magnet & Hybrid Armature – Uses a NdFeB magnet with a 2 mm square carbon-permalloy armature, hand-wound with 30 μm 4N copper wire, delivering 0.3 mV output at 5 Ω.
• Auricle™ Cartridge Body – Machined from A7075 aircraft-grade aluminum with a black zirconia inlay, inspired by the human outer ear, ensuring rigidity and damping.
• Special Urushi Lacquer Finish – Multi-stage thermoset lacquer process enhances both resonance control and visual elegance.
• Microline Nude Stylus – A 0.22 mm square nude diamond stylus that mirrors the original mastering head stylus, capturing subtle musical details.
• Cryogenic Processing – All magnetic and signal path parts are cryogenically treated for improved conductivity, reduced distortion, and greater tonal purity.

Specifications

• Body: Duralumin (A7075) – Auricle open-air
• Finish: Urushi lacquer through thermosetting process
• Cantilever: Diamond
• Stylus: Microline Nude Diamond
• Structure: “OKD” generator with Inverted U Front Yoke and Integrated Pole Piece and Rear Yoke
• Armature Material: Permalloy, 78% carbon-infused nickel-iron
• Armature Shape: 2 mm Square Plate
• Parts Material (Magnetic Circuit Material): Pure Iron
• Magnet: Neodymium (NdFeB)
• Coil Impedance: 5 Ω
• Output Voltage: 0.3 mV
• Load Impedance: ≈ 50 Ω (interpreted from "? 50 Ω")
• Generator (repeat): “OKD” generator with U Front Yoke, Integrated Pole Piece and Rear Yoke, Gold-plated Output Pins
• Frequency Response: 15-50,000 Hz
• Output Balance: 0.5 dB/1 kHz
• Channel Separation: 30 dB/1 kHz
• Tracking Weight: 2 g
• Trackability: 70 μm/2 g
• Dynamic Compliance: 10 × 10?? cm/dyne (100 Hz); Estimated at 17 × 10?? cm/dyne at 10 Hz
• Cartridge Weight: 11.3 g
