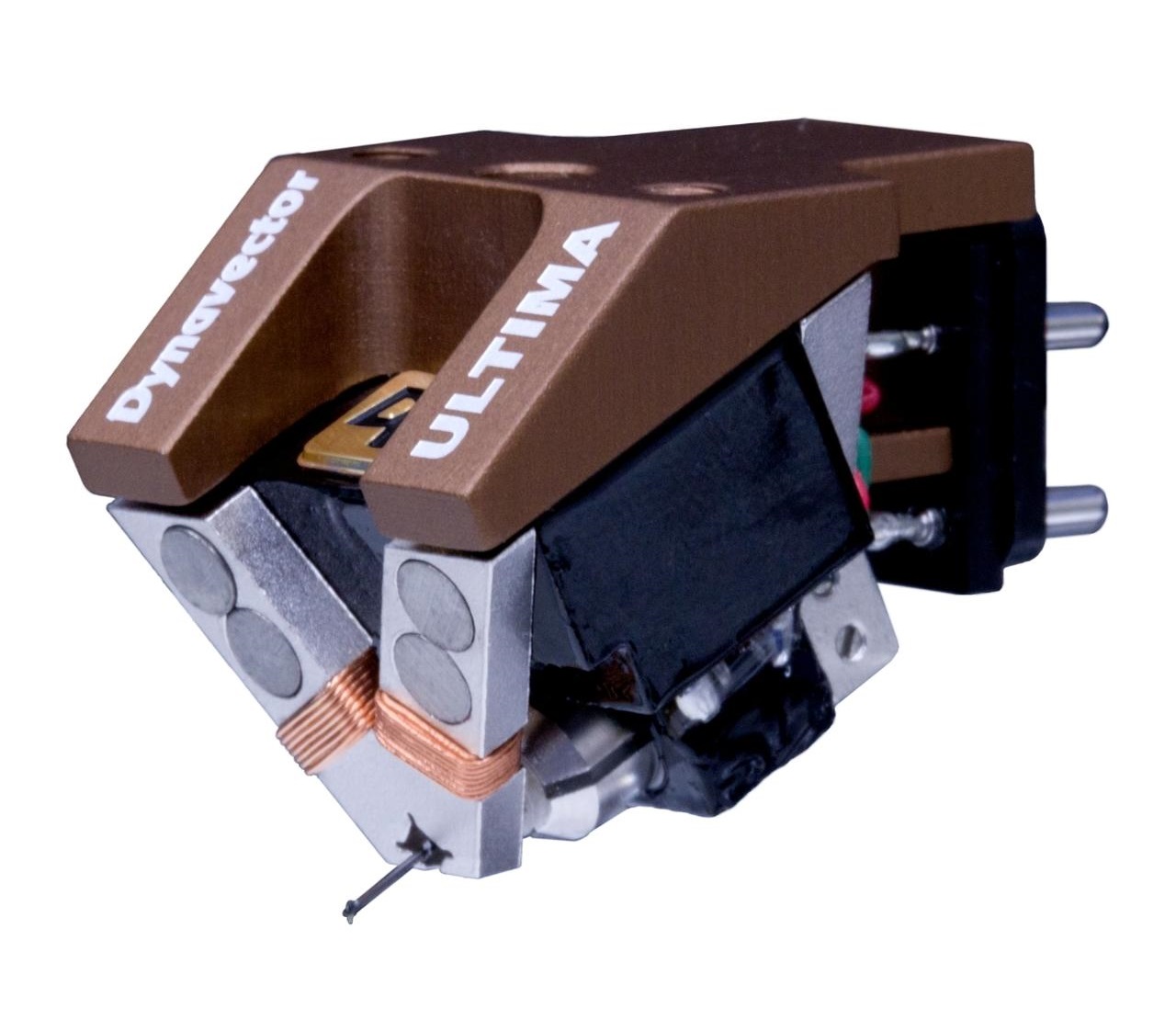

H Dynavector XV-Ultima ειναι κεφαλη κινητου πηνιου, χαμηλης εξοδου, με boron cantilever και διαμορφωση διαμαντιου PF line. Εξοδος 0.32mV

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Research-grade ultra-high-purity iron responds to magnetic flux with minimum distortion. Ultra-fine coil on a precision cross-cut armature brings moving mass to its absolute minimum.

Specifications

• Type: Low output moving coil cartridge with multi Alnico magnets and Flux damper
• Output Voltage: 0.32mV, at 1kHz, 5cm / sec
• Channel Separation: 30dB, at 1kHz
• Channel Balance: 1.0dB, at 1kHz
• Frequency Response: 20Hz – 20kHz, ±1dB
• Compliance: 10 mm / N
• Tracking Force Range: 1.8g – 2.2g
• Impedance: 24Ω
• Recommended Load Impedance: >75Ω
• Cantilever: 6mm solid boron
• Stylus Tip:
• PF line contact shape
• Stylus radius: 7 x 30 micron
• Weight: 12.0 g
