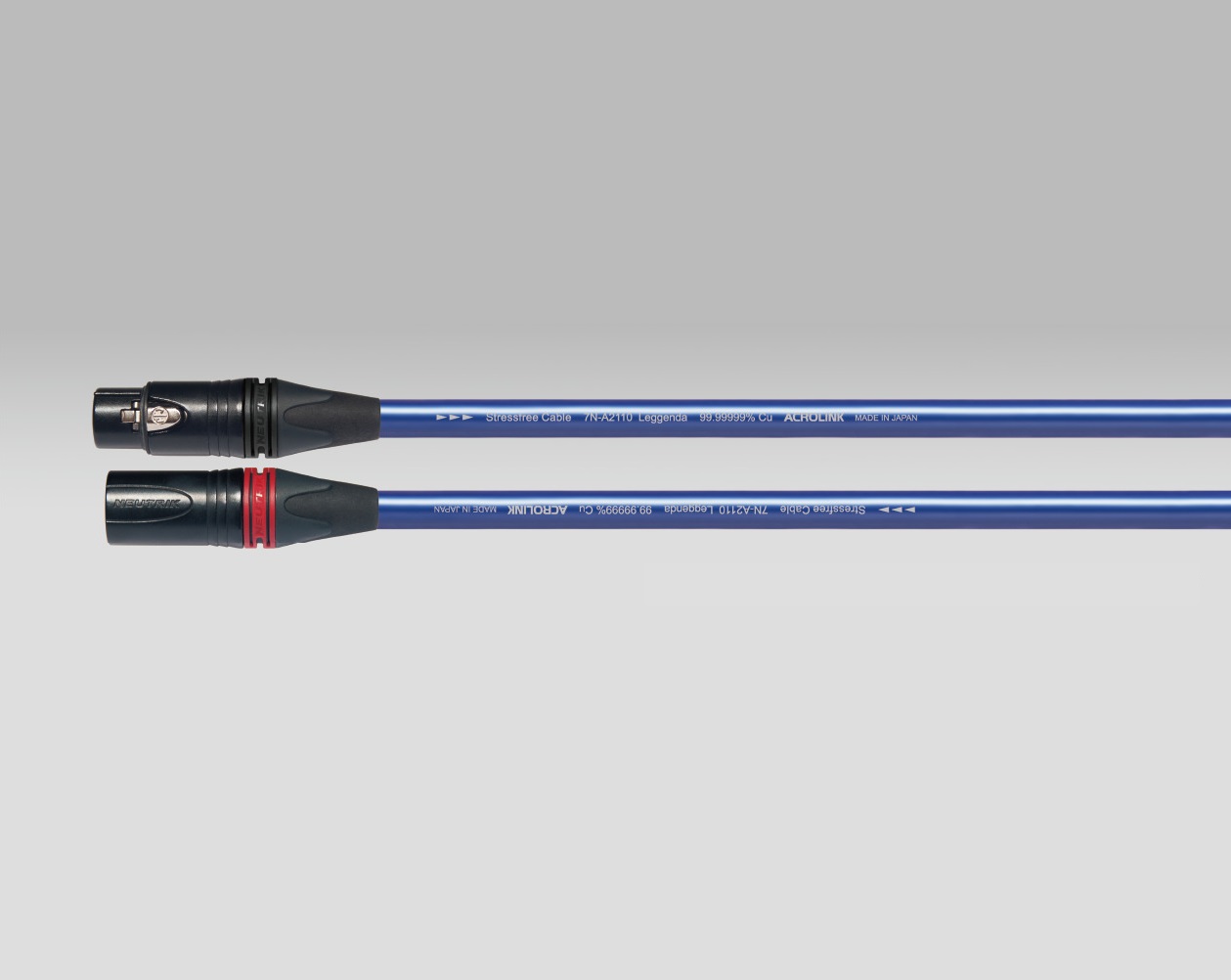

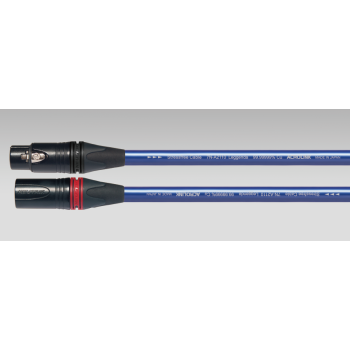

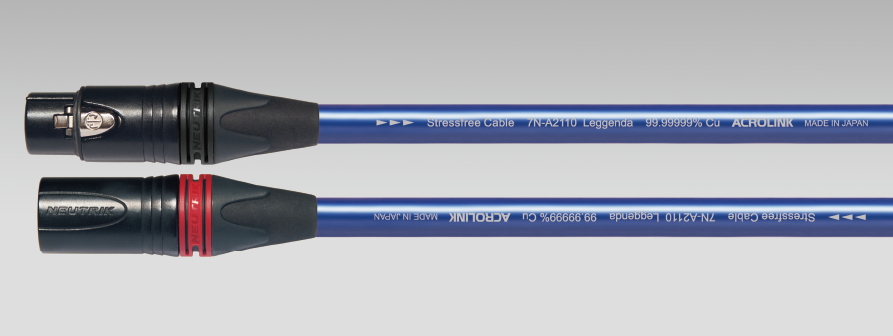

To Acrolink 7N-A2110 Leggenda XLR ειναι ενα καλωδιο interconnect, με αγωγους κατασκευασμενους απο υψηλης καθαροτητας μονοκρυσταλλικο χαλκο 7N (99,99999%), τερματισμενο με βυσματα XLR.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Cable Materials & Specifications

• Cable diameter     :     8.0mm
• Conductor     :     7N Cu D.U.C.C Stressfree 0.18mm x 34 strands x 2 cores (AWG 18)
• Insulation     :     Polyethylene resin (Positive side), Polyolefin resin (Negative side)
• Inner sleeve     :     Polyolefin resin
• Shielding     :     Copper foil tape + Double layered 4N5 OFC (Horizontally winded)
• Outer sleeve     :     UV resistant Polyurethane resin
• Conductor resistance     :     28mΩ/m
• Electrostatic capacitance     :     59pF/m

RCA connector Specifications

• Contact parts     :     Brass
• Plating     :     Gold
• Cover     :     Die-cast Zinc

Standard length of 7N-A2110 Leggenda XLR are 1.0m · 1.5m.
Special length order available.

D.U.C.C stands for Dia Ultra Crystallized Copper which is specifically developed copper wire for high-end audio cables. D.U.C.C has controlled crystal structure and the minimized transmission loss. Patent technology and registered trade mark of Mitsubishi Materials LTD.
