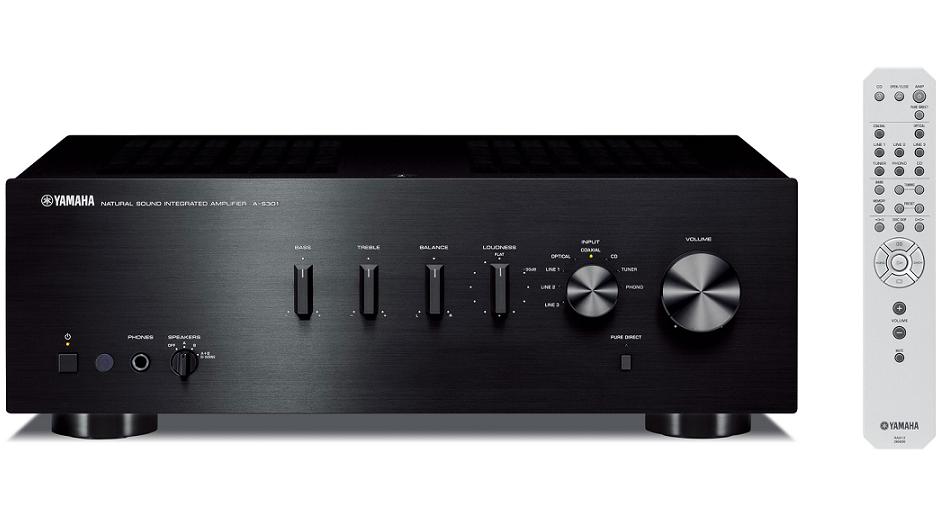

Ο Yamaha A-S301 ειναι ολοκληρωμένος ενισχυτής 2x60wrms at 8ohms. Διαθετει ενσωματωμενο DAC με εισοδους 1χ Optical, 1x Coaxial, 1x USB.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

The amplifier is built around Yamaha ToP-ART architecture, featuring a direct, symmetrical signal path from input to output to minimize distortion and noise. The rigid ART (Anti-Resonance and Tough) chassis with central reinforcement bar enhances mechanical stability and vibration damping, preserving signal integrity. The circuit topology is supported by high-grade components including a custom power transformer, large block capacitors, one-point grounding, and direct signal path relays, ensuring stable current delivery and low impedance behavior under dynamic load conditions.

Signal purity is further optimized via Pure Direct mode, bypassing tone, balance, and buffer stages for a shortened signal path. The amplifier integrates a continuously variable analog loudness control for precise frequency compensation at low listening levels. Digital integration is provided through optical and coaxial inputs, maintaining signal integrity in the digital domain, while additional system flexibility includes MM phono stage, subwoofer output, dual speaker terminals (A/B), and support for wireless streaming via Yamaha YBA-11 with aptX decoding.

Features

• ToP-ART (Total Purity Audio Reproduction Technology) and high quality parts
• I/O (input to output) Direct Symmetrical Design
• ART (Anti-Resolution and Tough) Base
• Custom-made power transformer / 6,800uF block capacitors / Aluminum-extruded heat sinks
• 95W x 2 (max), 60W x 2 (RMS) high power output
• Pure Direct Mode for Greater Sound Purity
• Continuous Variable Loudness Control
• Digital audio inputs for TV or Blu-ray Player
• Connection for YBA-11 Bluetooth Wireless Adapter
• Simple yet sophisticated design (aluminium front panel and knobs)
• Auto Power Standby

Specifications

• Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz)     60 W + 60 W (0.019% THD)
• Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)     95 W + 95 W
• High Dynamic Power/Channel (8/6/4/2 ohms)     100/120/140/150 W
• Damping Factor     210
• Frequency Response     10 Hz-100 kHz +/-1.0 dB
• Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz)     0.019% (50 W/8 ohms)
• Signal-to-Noise Ratio (CD)     99dB (input shorted, 200 mV)
• Audio In / Out     8 / 2
• Digital Input     Yes (optical / coaxial)
• Subwoofer Out     Yes
• DC out     Yes
• Pure Direct     Yes
• ToP-ART     Yes
• Standby Power Consumption     0.5W
• Power Management (Auto Power Standby)     Yes
• Dimensions (W x H x D)     435 x 151 x 387 mm
• Weight     9.0 kg
