Το Paradigm RVC-12SQ ειναι παθητικο υπογουφερ εντοιχιζομενο (InWall Subwoofer) με 2x 4x14 inches woofers.

Vibration-canceling in-wall, two high-excursion drivers, die-cast chassis with MDF mounting frame

How do you get Reference quality performance (i.e. phenomenal output, breathtaking clarity, superb extension and speed!) out of an in-wall subwoofer without it tearing your wall to shreds with the first big explosion or tympani crescendo?

Serious high-output subwoofers produce real energy. However, the majority of in-wall subwoofers out there don’t (read: CAN'T!) produce serious bass, so vibrational energy isn’t an issue. Not so with the RVC-12SQ in-wall subwoofer. It’s like a dog off the leash. Free from the constraints of conventional in-wall design, boasting dual state-of-the-art 14? drivers in a cutting-edge Vibration Canceling Design Architecture, it’s free to dig deeper for new levels of articulate, soul-stirring bass while chasing new heights in performance.

Impedance Matching Switch. Allows use with X-300 or X-850 amplifiers.

Bass frequencies are notorious for stirring up wall vibrations – not a good thing! Conventional in-wall subs excite these vibrations through a reactive force opposite to that created by the movement of the voice coil. We turned things around. In the RVC-12SQ the two woofers fire in phase, in opposite directions. This results in a physical cancelation of wall vibrations.

Paired with a matching Paradigm X amp and enhanced by the critically acclaimed Paradigm Perfect Bass Kit™ digital room correction system (sold separately), RVC-12SQ delivers bass that will rock your world, not your walls.

For new construction an optional BX-12SQ backbox is designed to maximize output by adding precision low-noise ports. In truth, with the use of this backbox, performance is even a notch better!

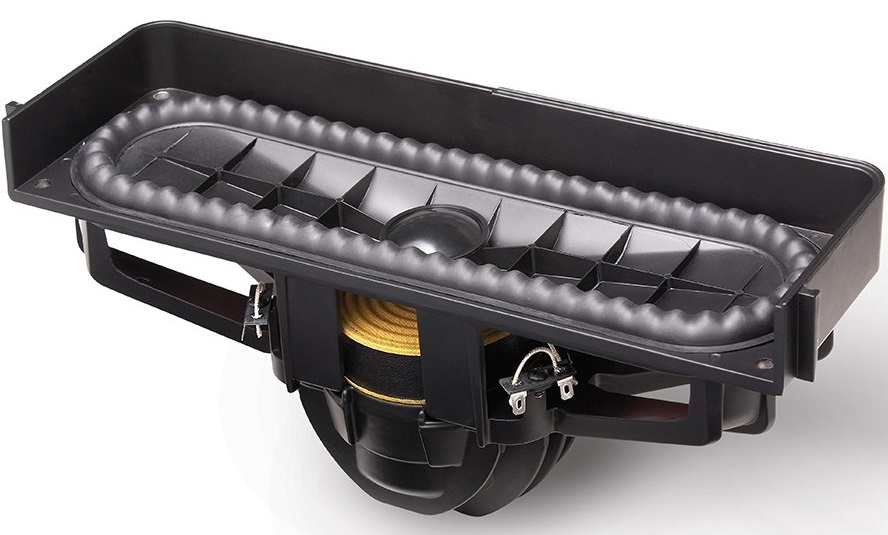

RVC High-Excursion Bass Driver

Dual State-of-the-Art Side-Mounted 4? (102 mm) x 14? (356 mm) Mineral-Filled Co-Polymer Polypropylene Cones. Highly damped and tremendously rigid cone provides tight, well-defined low-frequency response with a weight and authority that does justice to the most challenging music and movie material.

Pleated LCS™ Linear Corrugated Surround features Ultra-Long-Travel Suspension. The over-molded design produces truly exceptional peak-to-peak cone movement producing higher output and lower distortion—every bass note sounds distinct. Cone ribbing increases stiffness, reducing resonances to inaudible levels.

State-of-the-Art Motor Structure / FEA-Optimized 1/2-lb (0.19 kg) Super-Neodymium Magnets. 1? (25 mm) 6-layer voice-coil, anodized high-temperature aluminum former and dual Nomex® cloth spiders. The huge ceramic/ferrite magnets generate a truly enormous magnetic forcefield in the gap … always a plus in a subwoofer!

RVC-12SQ / BX-12SQ DIMENSION SHEET		61.29k
RVC-12SQ DIMENSIONAL DRAWING		153.81k
RVC-12SQ / X-300 / X-850 DATASHEET		555.97k
OWNER'S MANUALS		2.93M
