Το iFi Audio XDSD Gryphon ειναι φορητος ενισχυτης ακουστικων. Υποστηριζομενα format: PCM, DSD, DXD, MQA (Decoder), Bluetooth Up to 96kHz. Εισοδοι: Bluetooth 5.1, USB-C, Coaxial, Balanced 4.4mm, Single-Ended 3.5mm. Εξοδοι: Balanced 4.4mm Pentaconn, S-Bal (SE) 3.5mm SE.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

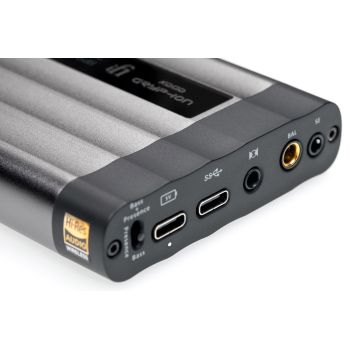

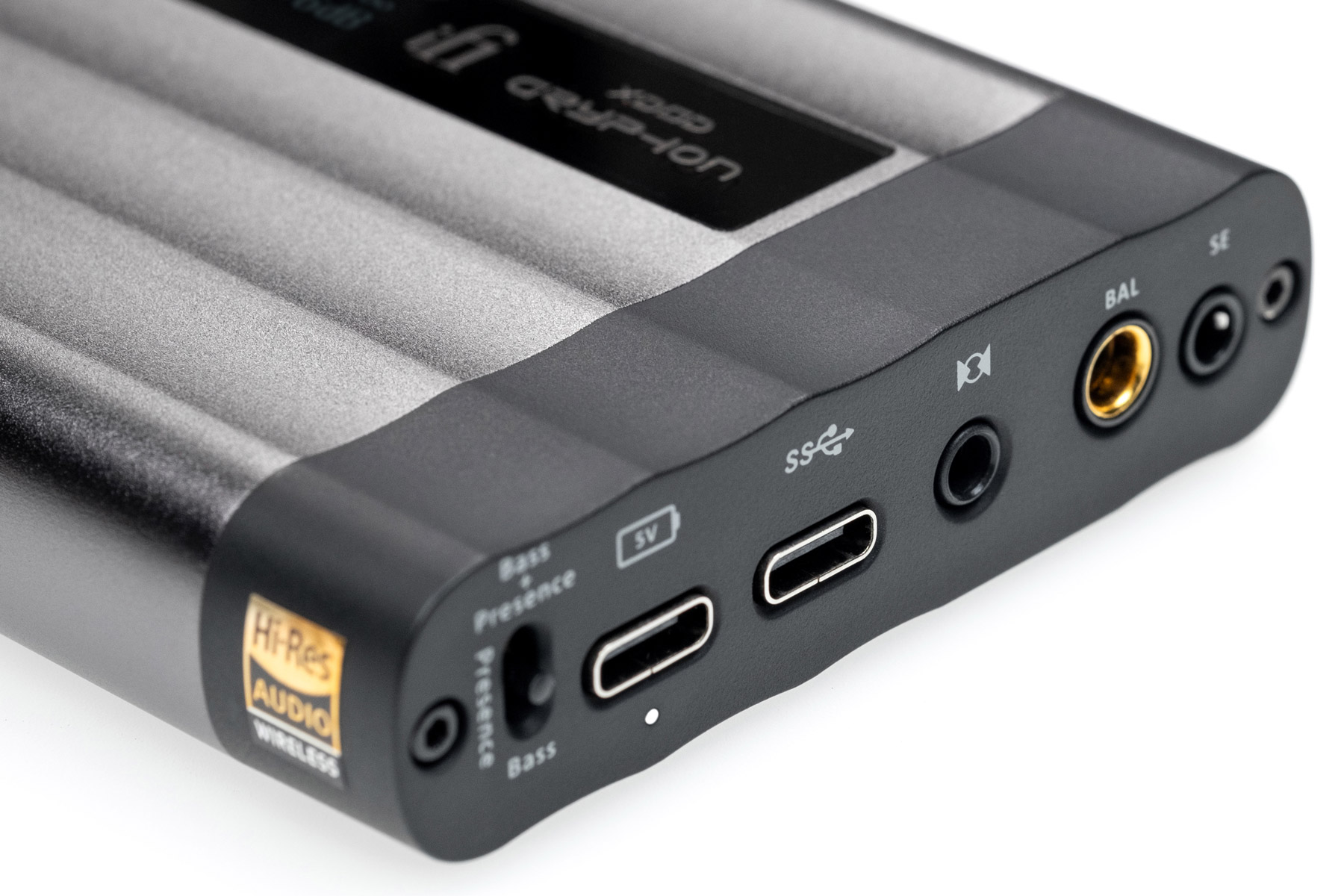

Well-connected

• Separate Bluetooth + DAC + amp stages: each optimised for maximum performance
• Digital sources via USB, S/PDIF or Bluetooth
• Analogue sources via 4.4mm or 3.5mm inputs

Brilliant Bluetooth. Hi-Res Wireless.

Using the latest QCC 5100 series Bluetooth v5.1 as the starting point, for wireless connectivity, the xDSD Gryphon is at the bleeding-edge when it comes to the latest formats:

• aptX Adaptive and aptX HD
• LDAC and HWA/LHDC
• regular aptX and aptX Low Latency
• AAC
• SBC (plain vanilla Bluetooth)

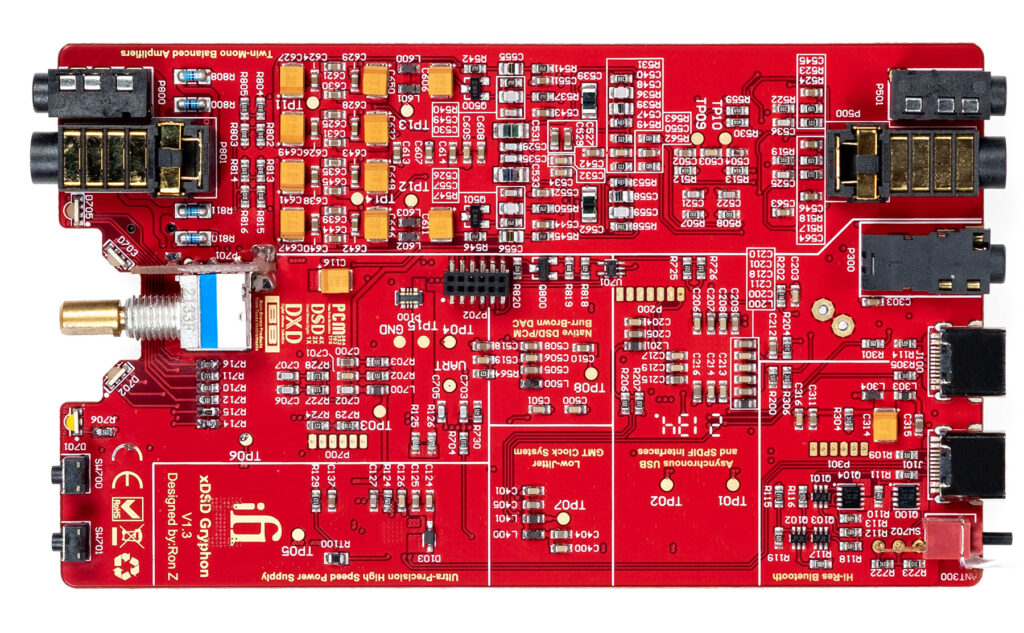

Not only this but the above is on the iFi digital platform where each section is distinct. So QC5100 for reception > Global Master Clock for jitter > Burr-Brown for DAC conversion. More effort but that’s why our wireless gives wired a run for its money.

USB & S/PDIF. Wired to the nines.

In terms of wired connectivity, the xDSD Gryphon handles all the formats using a hybrid Burr-Brown DAC chipset which is the same as used in our £3,000 flagship, the Pro iDSD Signature.

Rest assured that all the following latest formats are catered for but most importantly, are pushed to their zenith.

On USB:

• PCM (768/705.6/384/352.8/192/176.4/96/88.2/48/44.1 kHz)
• DSD (512/256/128/64)
• DXD (768/705.6/384/352.8kHz)
• MQA (Decoder)

On S/PDIF

• PCM (192/176.4/96/88.2/48/44.1 kHz)
• DoP

Balance of Power

The xDSD Gryphon uses our PureWave amplification circuitry. It has 1,000mW at 32 Ohms. With a whopping max 6.7v output, bring on the high impedance headphones because the Gryphon will not break a sweat driving them.

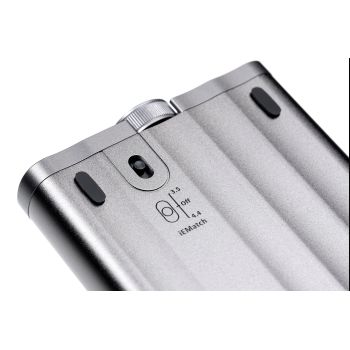

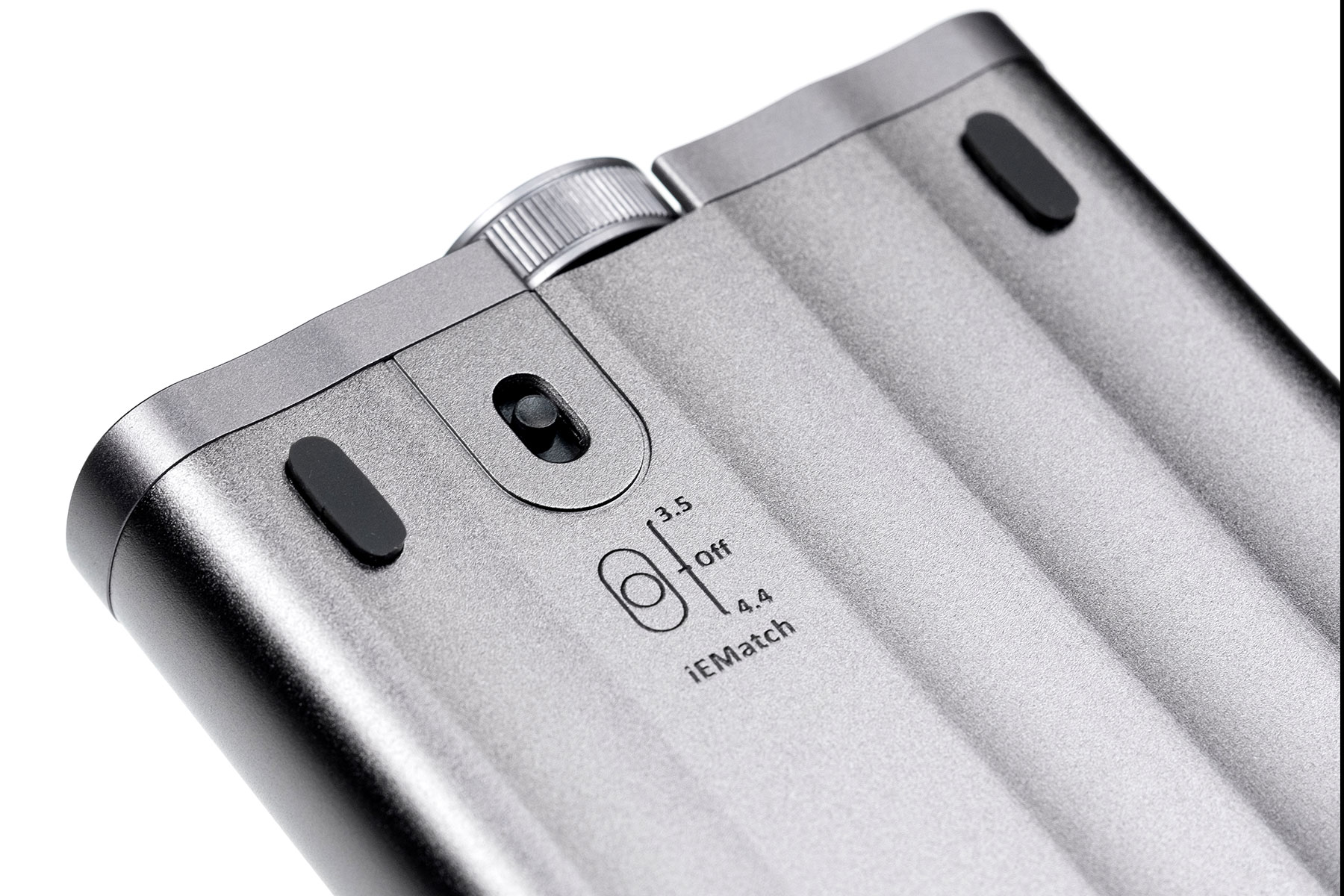

This is plenty to drive all manner of headphones. The 4.4mm Balanced is the best for balanced playback. The 3.5mm S-Balanced will max SE headphones. And your premium high-sensitivity IEMs have not been forgotten either – iEMatch will cut out the hiss.

Specifications

• Inputs
  • Wireless: Bluetooth 5.1 (aptX, aptX HD, aptX Adaptive, aptX LL, LDAC, HWA, AAC, SBC)
  • Wired (Digital): USB-C, S/PDIF Coaxial
  • Wired (Analogue): Balanced 4.4 mm, Single-Ended 3.5 mm
• Supported Formats
  • DSD 512 / 256 / 128 / 64 (Octa / Quad / Double / Single-Speed)
  • PCM 768 / 705.6 / 384 / 352.8 / 192 / 176.4 / 96 / 88.2 / 48 / 44.1 kHz
  • DXD 768 / 705.6 / 384 / 352.8 kHz (Double / Single-Speed)
  • MQA Decoder
  • Bluetooth up to 96 kHz
• DAC
  • Burr-Brown
• Battery / Power
  • USB-C charging (BC1.2 compliant, up to 1900 mA charging current)
• Dimensions
  • 123 × 75 × 19 mm (4.8 × 3.0 × 0.7 in)
• Weight
  • 215 g (0.5 lbs)
• Line Section
  • Outputs: Balanced 6.7 V max (variable), S-Bal (SE) 3.5 V max (variable)
  • Output Impedance: Balanced ≤ 200 Ω, S-Bal (SE) ≤ 100 Ω
  • Signal-to-Noise Ratio: Balanced < 110 dB(A) @ 0 dBFS, S-Bal (SE) < 110 dB(A) @ 0 dBFS
  • THD+N: Balanced < 0.007 % @ 0 dBFS, S-Bal (SE) < 0.015 % @ 0 dBFS
• Headphone Section
  • Outputs: Balanced 4.4 mm Pentaconn, S-Bal (SE) 3.5 mm SE
  • Output Power: Balanced > 1000 mW @ 32 Ω, > 74 mW @ 600 Ω, > 6.7 V max @ 600 Ω
  • S-Bal (SE) > 320 mW @ 32 Ω, > 40 mW @ 300 Ω, > 3.5 V max @ 600 Ω
  • Output Impedance: Balanced < 1 Ω, S-Bal (SE) < 1 Ω
  • SNR: Balanced < 116 dB(A) @ 0 dBFS, S-Bal (SE) < 115 dB(A) @ 0 dBFS
  • THD+N: < 0.005 % (1 V @ 16 Ω)
