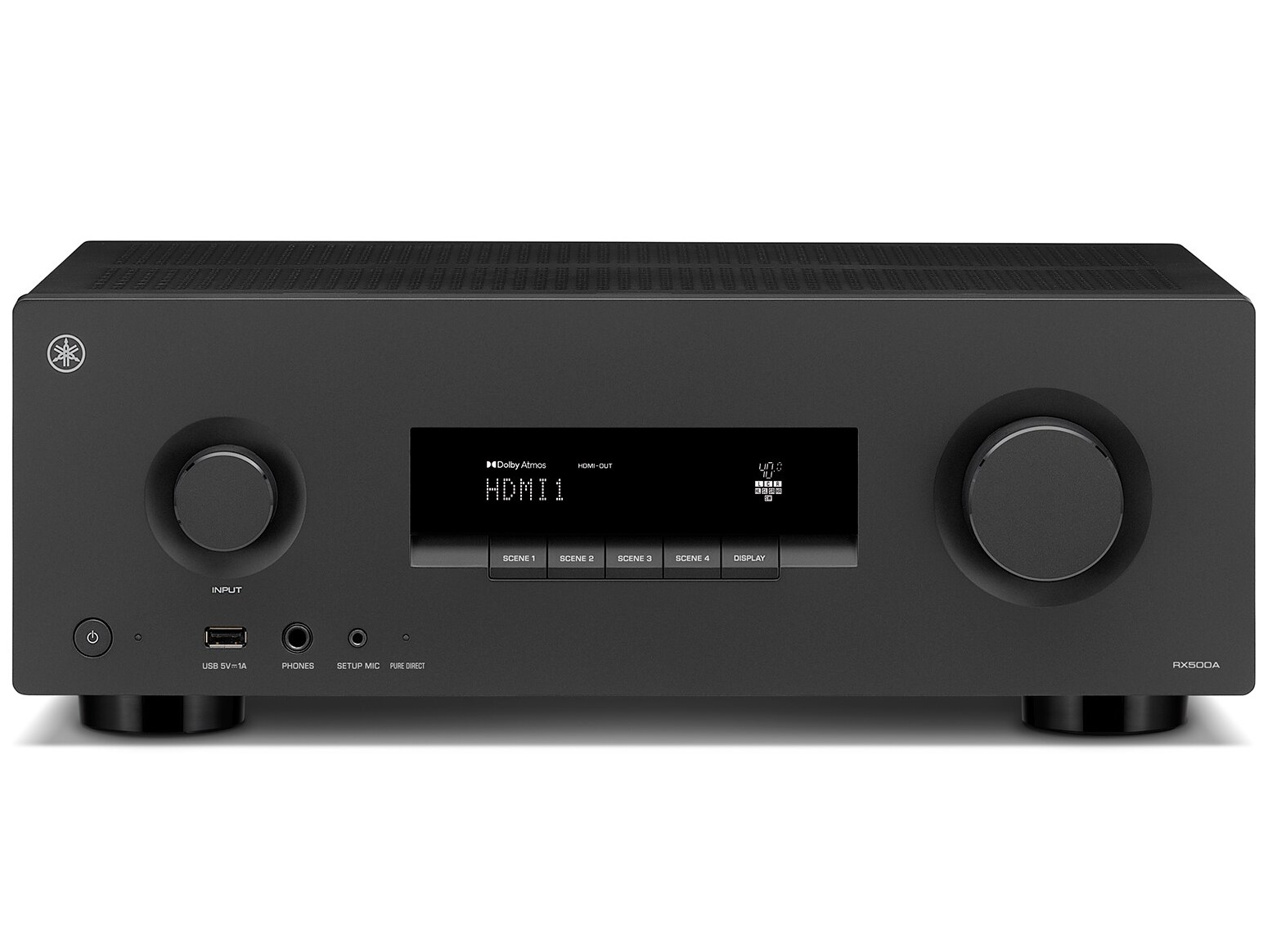

Yamaha RX500A

Features

• 7.2-ch surround sound with 5.1.2-ch flexibility
• Dolby Atmos and DTS:X® immersive audio
• Next-gen video with 4K120/8K60 HDMI (4-in/1-out) and HDMI eARC
• Advanced HDR support, including Dolby Vision® and HDR10+
• Room Correction automatically optimizes sound for your space
• Wi-Fi streaming options—including Spotify Connect, Google Cast, AirPlay, TIDAL Connect, and Qobuz Connect—plus Bluetooth® Multipoint.
• Scene buttons for instant access to your favorite listening modes

Specifications

• AV Receiver:
  • 7.2-channel amplification
  • 7.1-channel decoding
  • 7 amplifier channels
  • Bi-amp capable
• Output Power:
  • 70W per channel, 8Ω, 20Hz – 20kHz, 0.09% THD, 2-channel driven
  • 145W per channel, 6Ω, 1kHz, 10% THD, 1-channel driven
• Surround Sound Decoding Formats: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-HD Master Audio, DTS-HD High Resolution, DTS-Express, DTS, DTS-ES Matrix 6.1, DTS-ES Discrete 6.1, DTS 96/24, DTS:X
• Surround Sound Post Decoding Formats: Dolby Surround, DTS Neural:X
• Network Decoding Formats: MP3, MPEG4-AAC, WMA, WAV, FLAC, Apple Lossless, AIFF
• USB Decoding Formats: MP3, MPEG4-AAC, WMA, WAV
• HDMI Decoding Formats: PCM, up to 8 channels
• Sound Modes: Pure Direct, Straight, Movie, All Channel Stereo, 2 Channel Stereo, Music, Night
• Zone B: Yes
• Room Calibration: Room Correction
• Audio Features: Dialogue Level, Subwoofer Trim, Extra Bass, Lip Sync
• HDMI:
  • 4 HDMI inputs / 1 HDMI output
  • HDMI 2.1
  • 8K / 60Hz and 4K / 120Hz support
  • eARC and ARC
  • VRR / ALLM / QMS
  • HDCP 2.3
  • CEC
  • Auto Lip Sync
  • Deep Color
  • x.v.Color
  • HD audio playback
• High Dynamic Range Support: HDR, HDR10+, Dolby Vision, Hybrid Log-Gamma, HLG
• Speaker Outputs: 7 binding-post terminals
• Headphone Output: 1
• Subwoofer Pre-outs: 2
• Analog RCA Inputs: 2
• Optical Input: 1
• Coaxial Input: 1
• USB: 1 x USB port (Audio playback from mass storage device, firmware update support)
• FM Tuner
• Bluetooth: Bluetooth 5.3, Multipoint support
• Streaming: Spotify Connect, Qobuz Connect, TIDAL Connect, Google Cast, AirPlay 2, Net Radio, Podcasts
• Wi-Fi / Ethernet: Yes / Yes
• Power Consumption: 260W
• Standby Power Consumption: ≤0.3W
• Auto Power Standby: Yes
• Dimensions, Unit: 434 x 157 x 319 mm, W x H x D
• Dimensions, Package: 525 x 230 x 400 mm, W x H x D
• Weight, Unit: 8.0 kg
• Weight, Package: 9.4 kg
• App: Audio Connect
• Included Accessories:
  • Remote control
  • Batteries
  • FM antenna
  • Setup microphone
  • Microphone stand
  • Quick guide
  • Safety guide

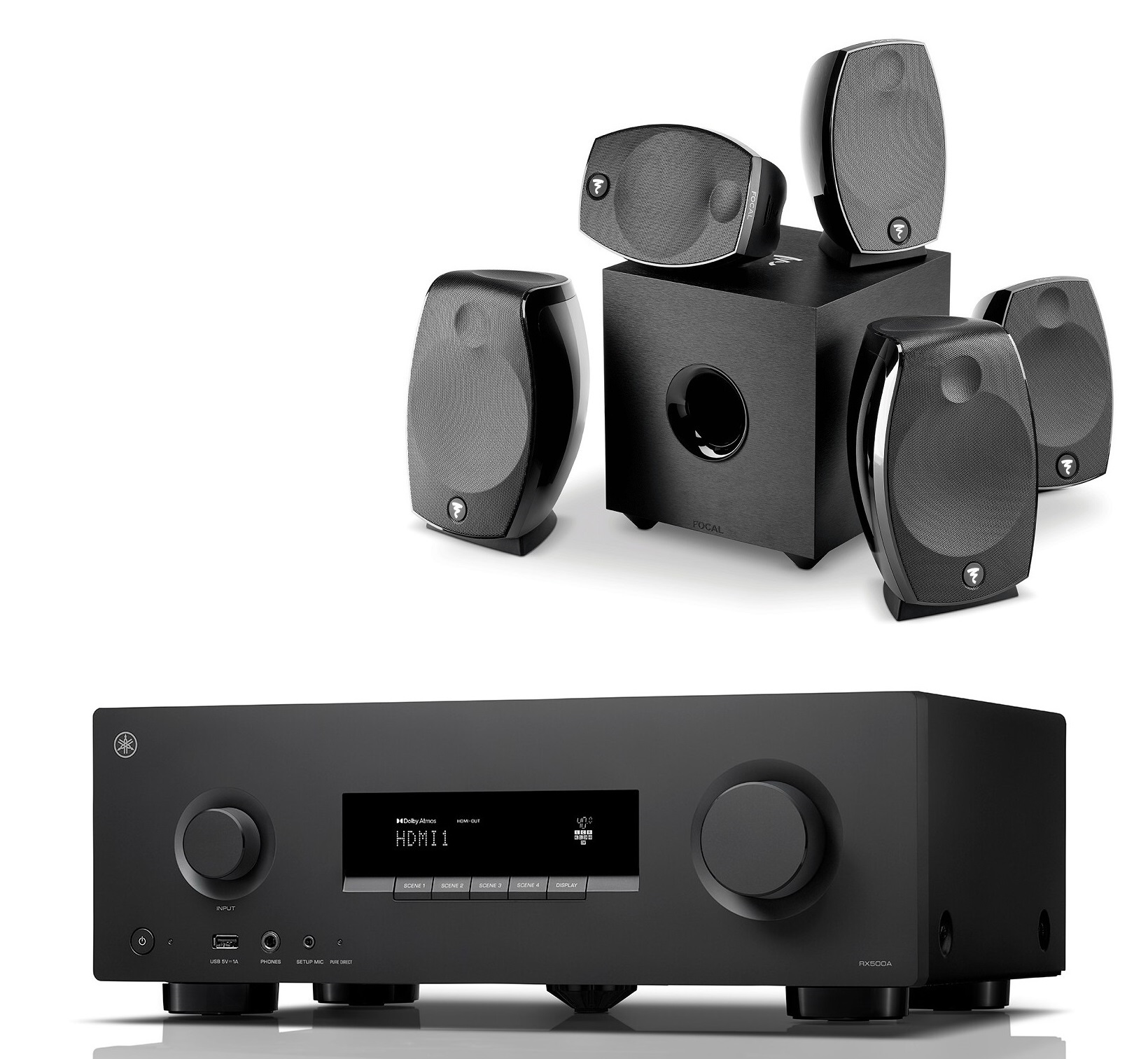

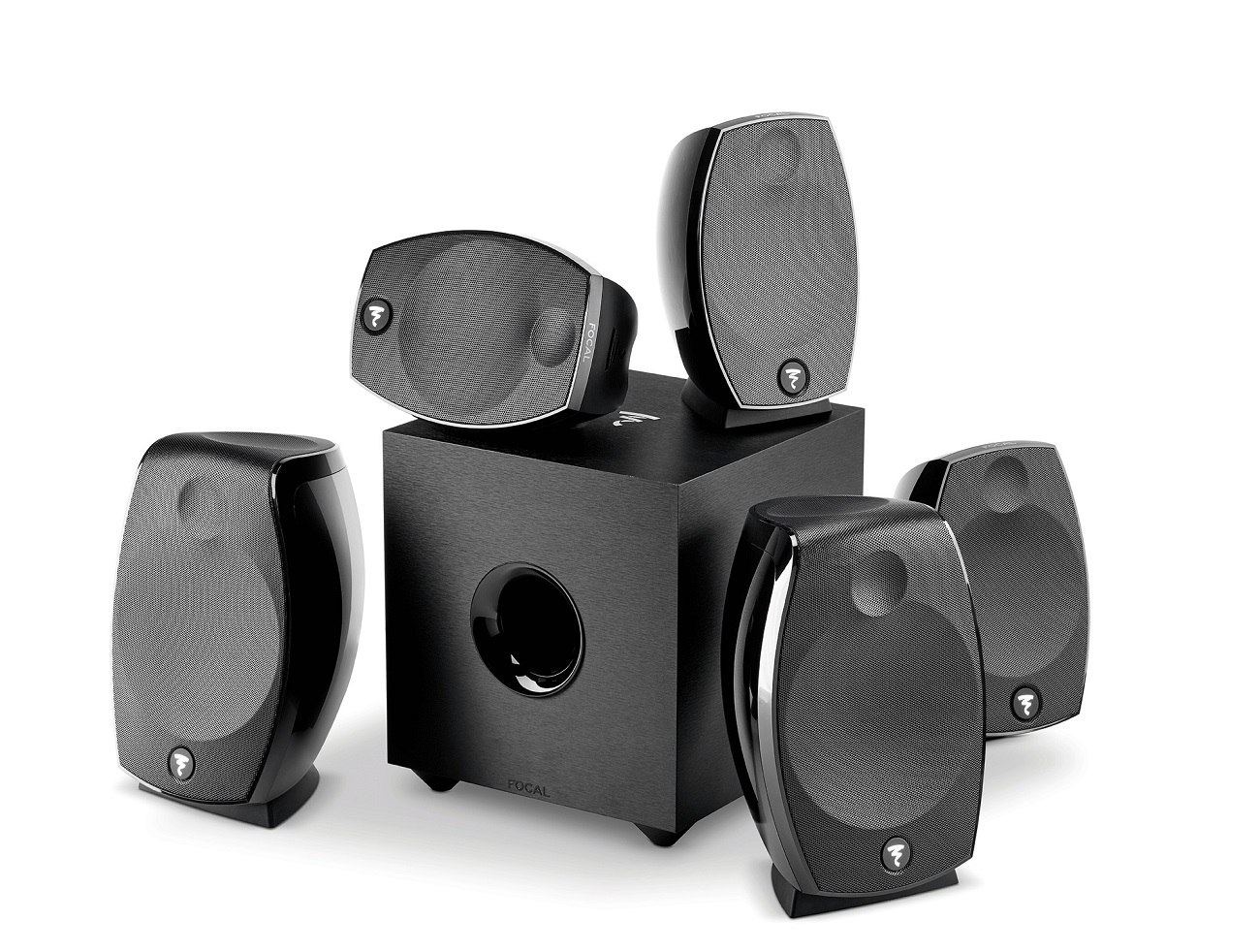

Focal Sib Evo Dolby Atmos 5.1.2
