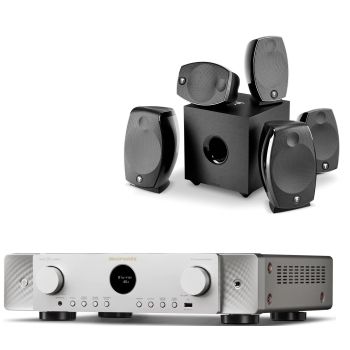

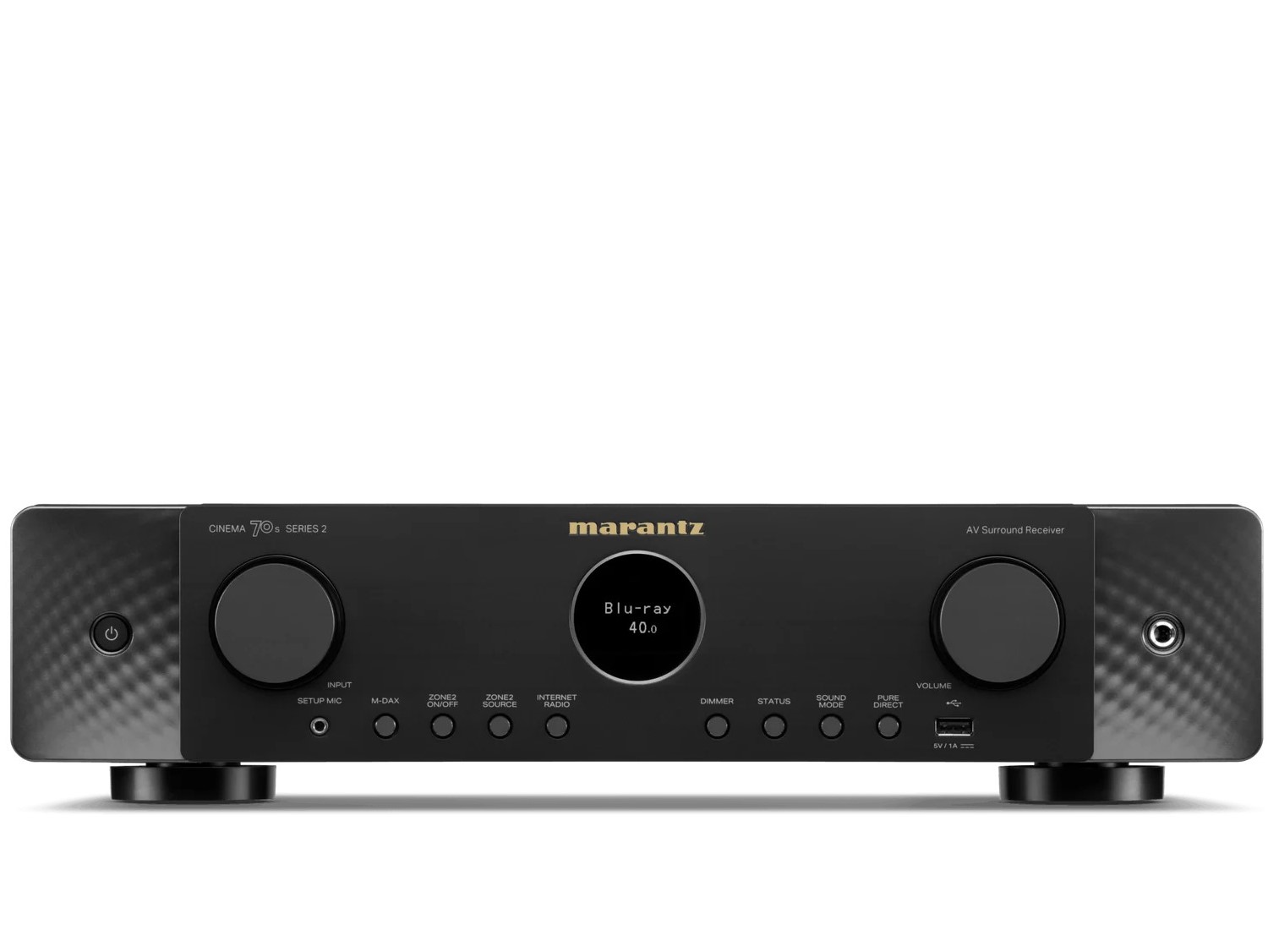

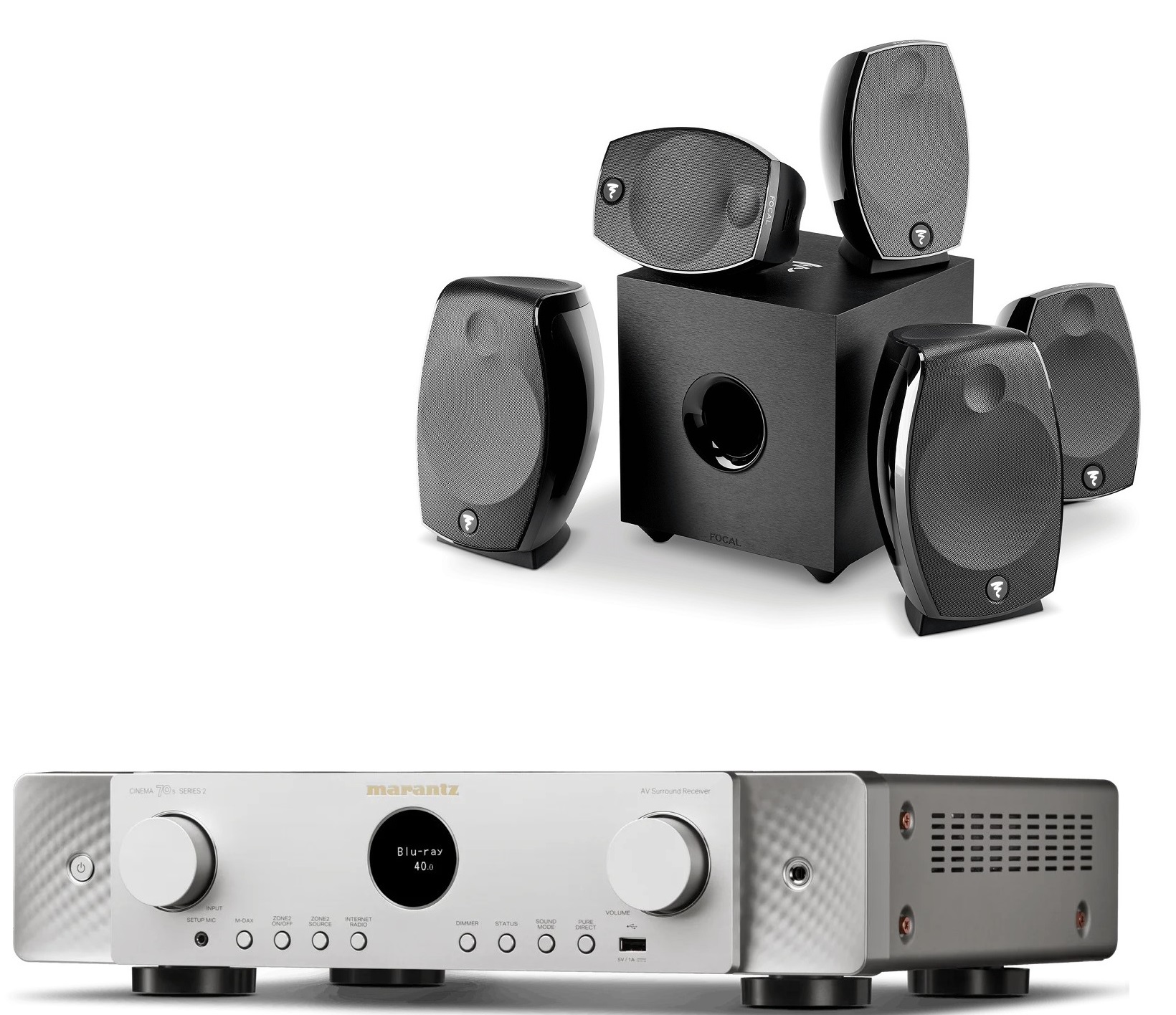

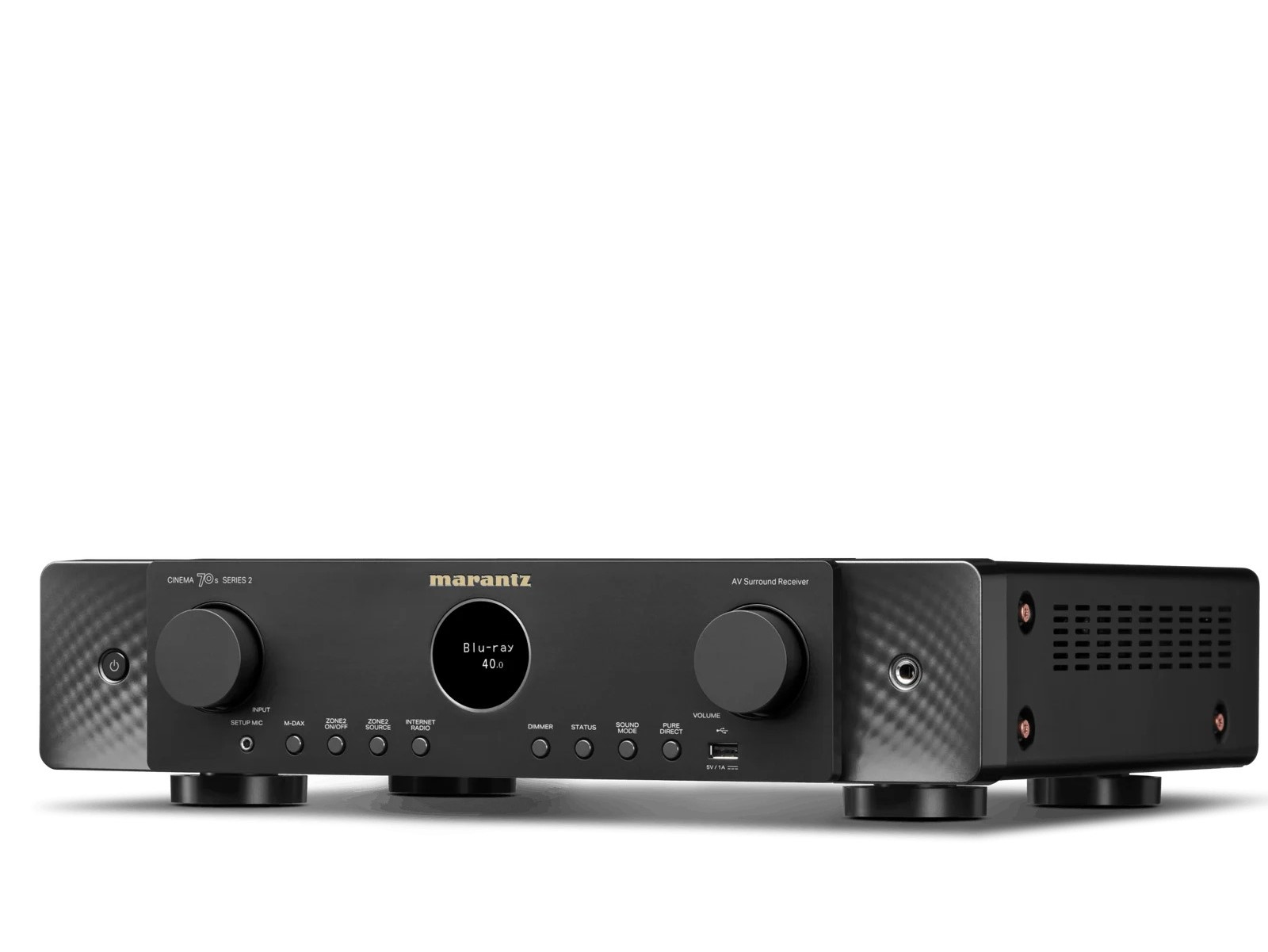

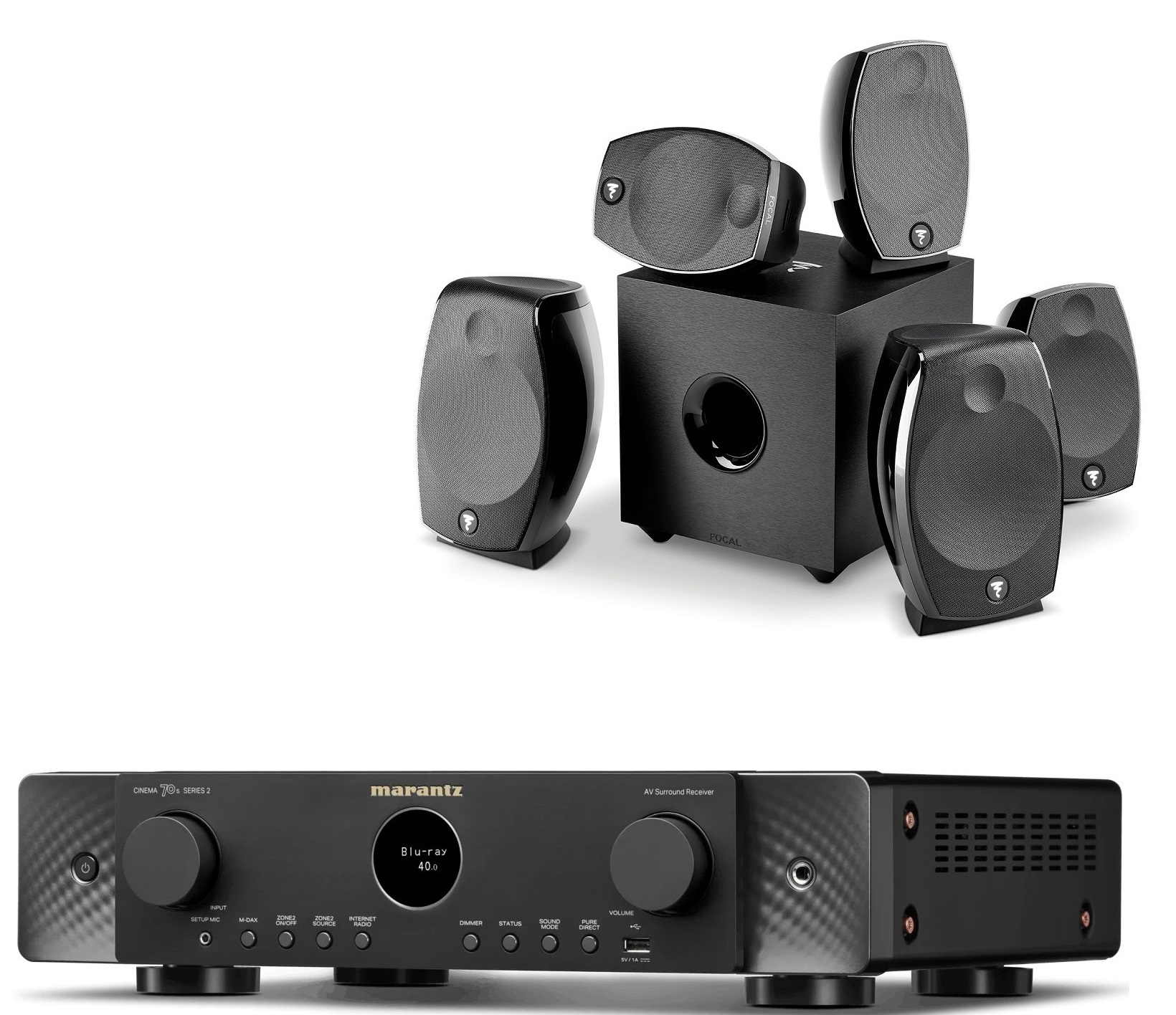

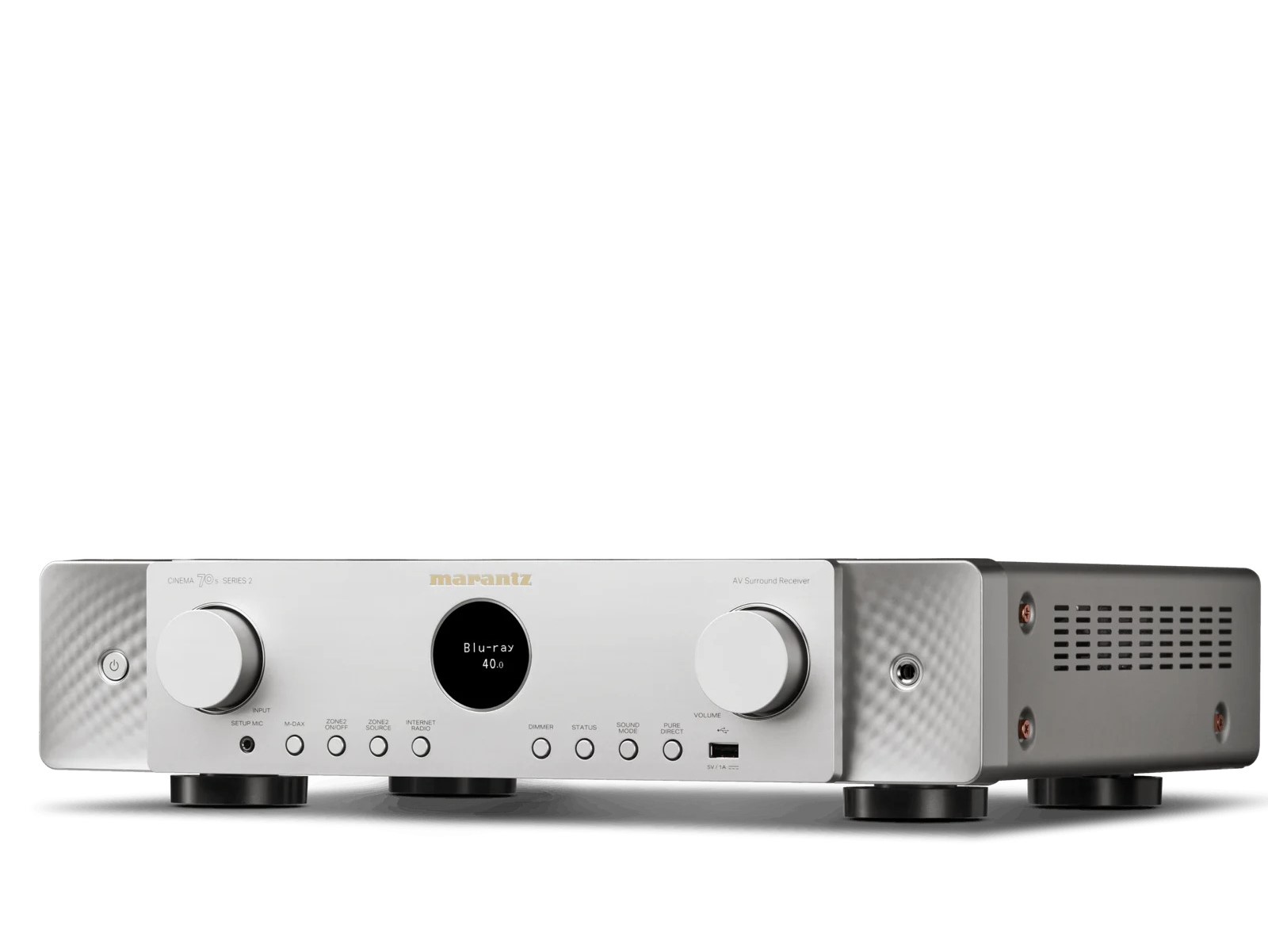

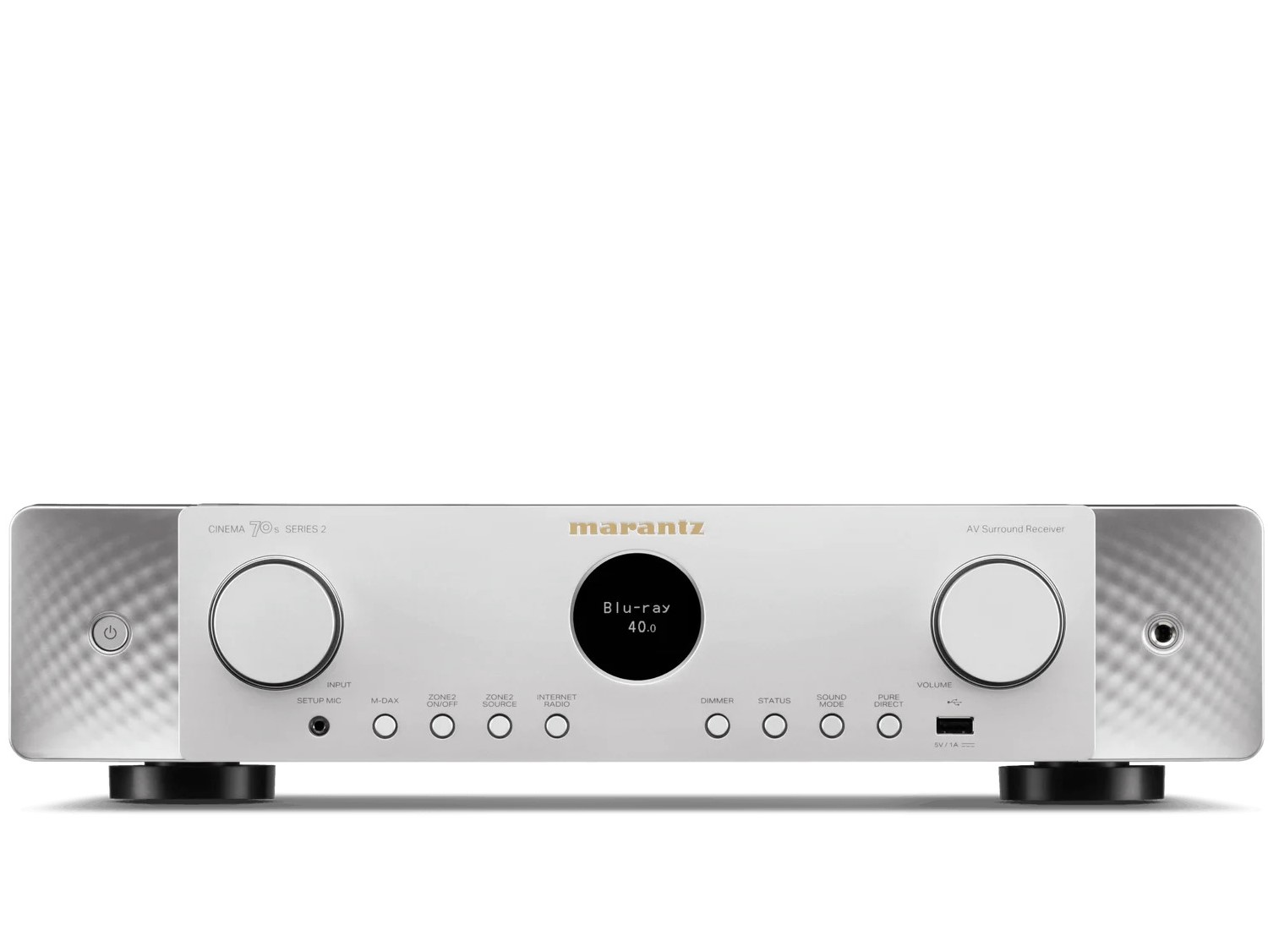

Marantz Cinema 70s Series 2

CINEMA 70s SERIES 2 is engineered to elevate everything you love about movies—from  thrilling action and crisp dialogue to epic scores—all in a compact, slimline design. Built on decades of engineering expertise and a passion for exceptional sound, this versatile 7-channel AV receiver delivers immersive home entertainment. Featuring an upgraded 32-bit 8-channel DAC with Dolby Atmos support and 6 HDMI ports, including eARC, with Powered by HEOS™ and optional Dirac Live room correction, CINEMA 70s SERIES 2 ensures unforgettable home theater experiences—even in smaller spaces.

Features

• 7.2-channel slimline AV receiver
• Dolby Atmos immersive audio
• HDMI eARC connectivity
• 50W per channel amplification
• Compact, elegant Marantz design
• Built for movies, music and gaming
• Powered by HEOS™

Specifications

• Surround Audio Formats:
  • DTS-HD
  • DTS:X
  • DTS Neural:X
  • DTS Virtual:X
  • Dolby TrueHD
  • Dolby Atmos
  • Dolby Atmos Height Virtualization
  • Dolby Atmos Music
  • Dolby Surround
  • Multichannel Stereo
  • 7.1-channel processing
• Audio Technologies:
  • Discrete power amplifier design
  • EI power transformer
  • Pure Direct mode
  • Audyssey MultEQ XT
  • Audyssey Dynamic EQ
  • Audyssey Dynamic Volume
  • Standard subwoofer mode
  • Dirac Live upgradeable
  • MDAX2 compressed audio enhancement
• Network & Streaming:
  • HEOS multi-room audio
  • Bluetooth audio transmission to headphones
  • Bluetooth transmitter volume control
  • Network audio sharing
  • Supports MP3, WMA and AAC
  • Supports FLAC 192kHz/24-bit, WAV 192kHz/24-bit and ALAC 192kHz/24-bit
  • DSD streaming (2.8MHz / 5.6MHz)
  • Gapless playback (FLAC, WAV, ALAC, DSD)
  • AirPlay 2
  • TuneIn Internet Radio
  • Spotify Connect
  • TIDAL Connect
  • Qobuz Connect
  • Pandora
  • SiriusXM
  • Amazon Music
  • Amazon Music HD
  • Deezer
  • iHeartRadio
  • SoundCloud
  • Mood Mix
  • Roon Ready
  • Marantz AVR Remote and HEOS app support
  • Android, iOS and Amazon Kindle app support
  • Wi-Fi, Bluetooth and Ethernet connectivity
• HDMI Features:
  • 6 HDMI inputs
  • 1 HDMI output
  • HDCP 2.3 compatible
  • HDMI scaling from 1080p / 4K to 8K
  • 8K/60Hz and 4K/120Hz support
  • 3 HDMI inputs and 1 output supporting up to 40Gbps pass-through
  • eARC and ARC
  • HDR10, HLG, Dolby Vision, HDR10+ and Dynamic HDR
  • ALLM (Auto Low Latency Mode)
  • Variable Refresh Rate (VRR)
  • Quick Frame Transport (QFT)
  • AMD FreeSync (HDMI inputs 4–6)
  • 3D signal pass-through
  • HDMI standby pass-through
  • CEC
  • Auto LipSync
• Multiroom & Integration:
  • HEOS Multi-Room
  • HEOS Link compatibility via IR and IP
  • 2-zone operation
  • Zone optical/coaxial audio (2-channel)
  • Zone network and USB audio
  • Zone analogue audio
  • Zone speaker outputs
  • Zone pre-out
  • IP, Web and App control
  • IR flasher input
  • Marantz Remote Bus
  • 12V trigger output
  • HDMI diagnostics
• Setup & Features:
  • Audyssey MultEQ XT automatic speaker calibration
  • Dirac Live upgrade support
  • Porthole OLED display
  • Modern HD graphical user interface
  • Setup Assistant
  • Smart Select
  • Firmware updates via network or USB
  • Variable crossover
  • Optimized Bass Redirection
  • ECO mode
  • Auto power off
  • Sleep timer

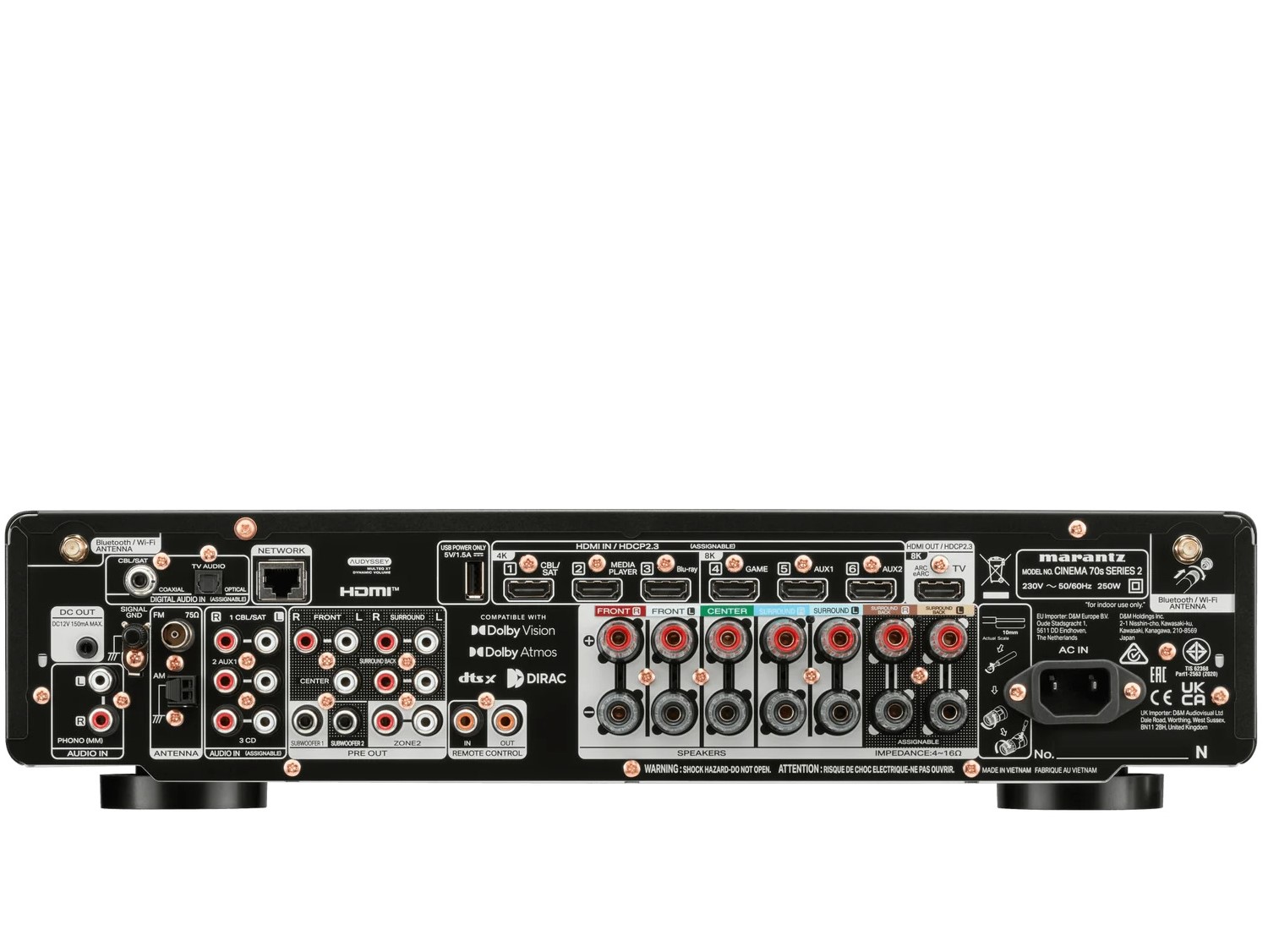

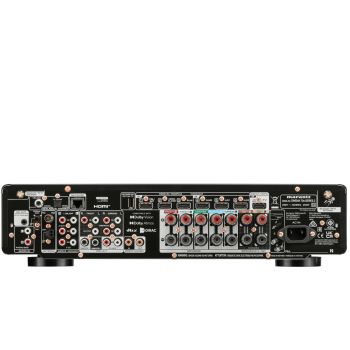

• Connections:
  • 6 HDMI inputs
  • 1 HDMI output
  • 3 analogue audio inputs
  • MM phono input
  • 1 optical digital input
  • 1 coaxial digital input
  • 7.2-channel pre-out
  • 2 subwoofer outputs
  • 7 speaker terminals
  • Assignable Speaker A/B
  • Assignable bi-amp
  • Assignable multi-room speaker terminals
  • Front USB input
  • USB audio playback
  • AM/FM tuner
• Amplifier:
  • 7-channel power amplifier
  • 50W per channel (8Ω, 20Hz–20kHz, 0.08% THD, 2 channels driven)
  • 70W per channel (6Ω, 1kHz, 0.7% THD, 2 channels driven)
• General:
  • RC055SR remote control
  • Power consumption: 250W
  • Standby power: 0.2W
  • CEC standby: 0.5W
  • Network standby: <2W
  • Dimensions (without antennas): 442 × 373 × 109 mm, W × D × H
  • Weight: 8.7kg
• What's in the Box:
  • Main unit
  • Remote control
  • Batteries
  • AM/FM antennas
  • Wire labels
  • Quick Start Guide
  • Audyssey calibration microphone
  • Cardboard microphone stand
  • Two detachable external antennas
  • AC power cord

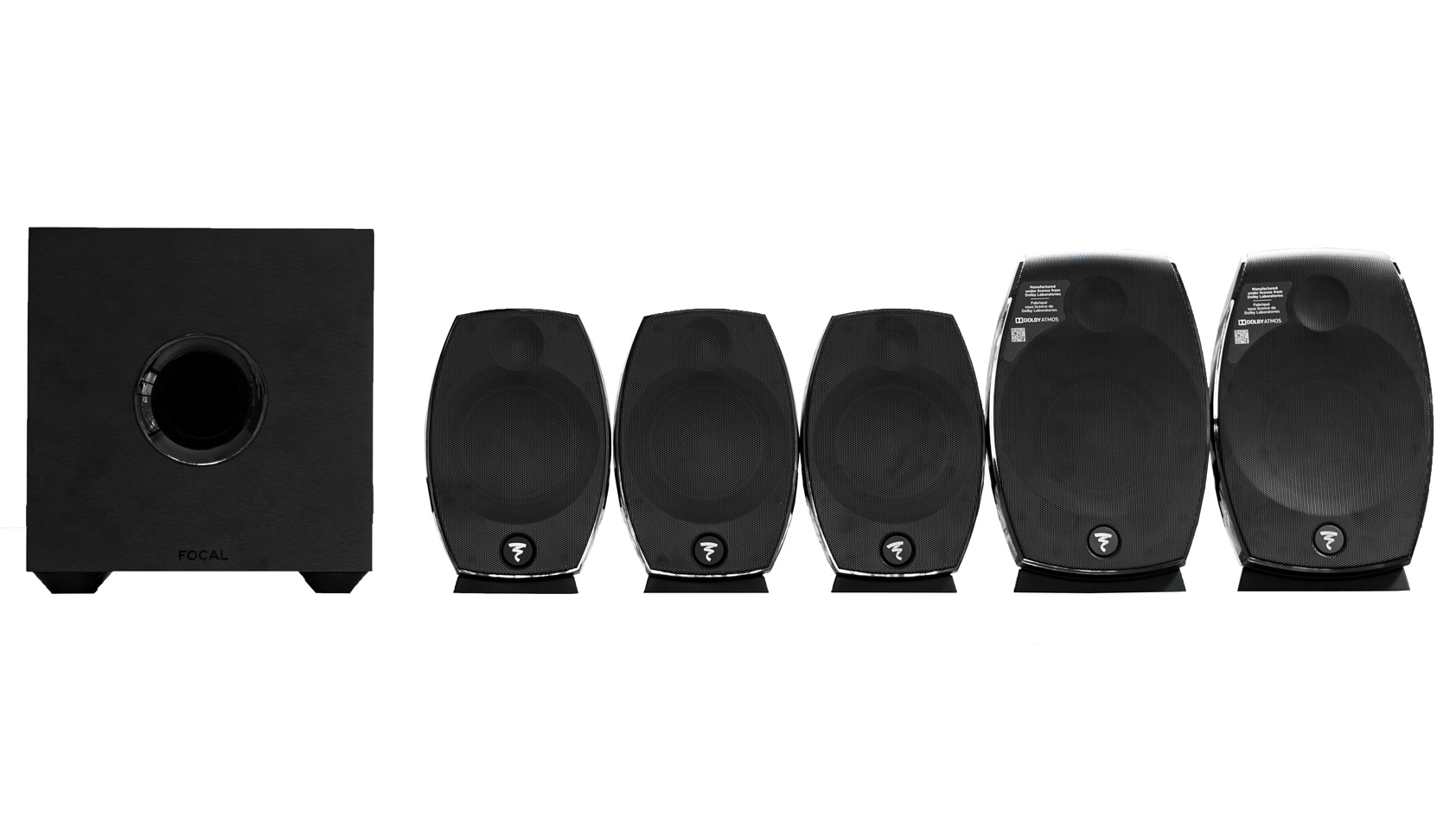

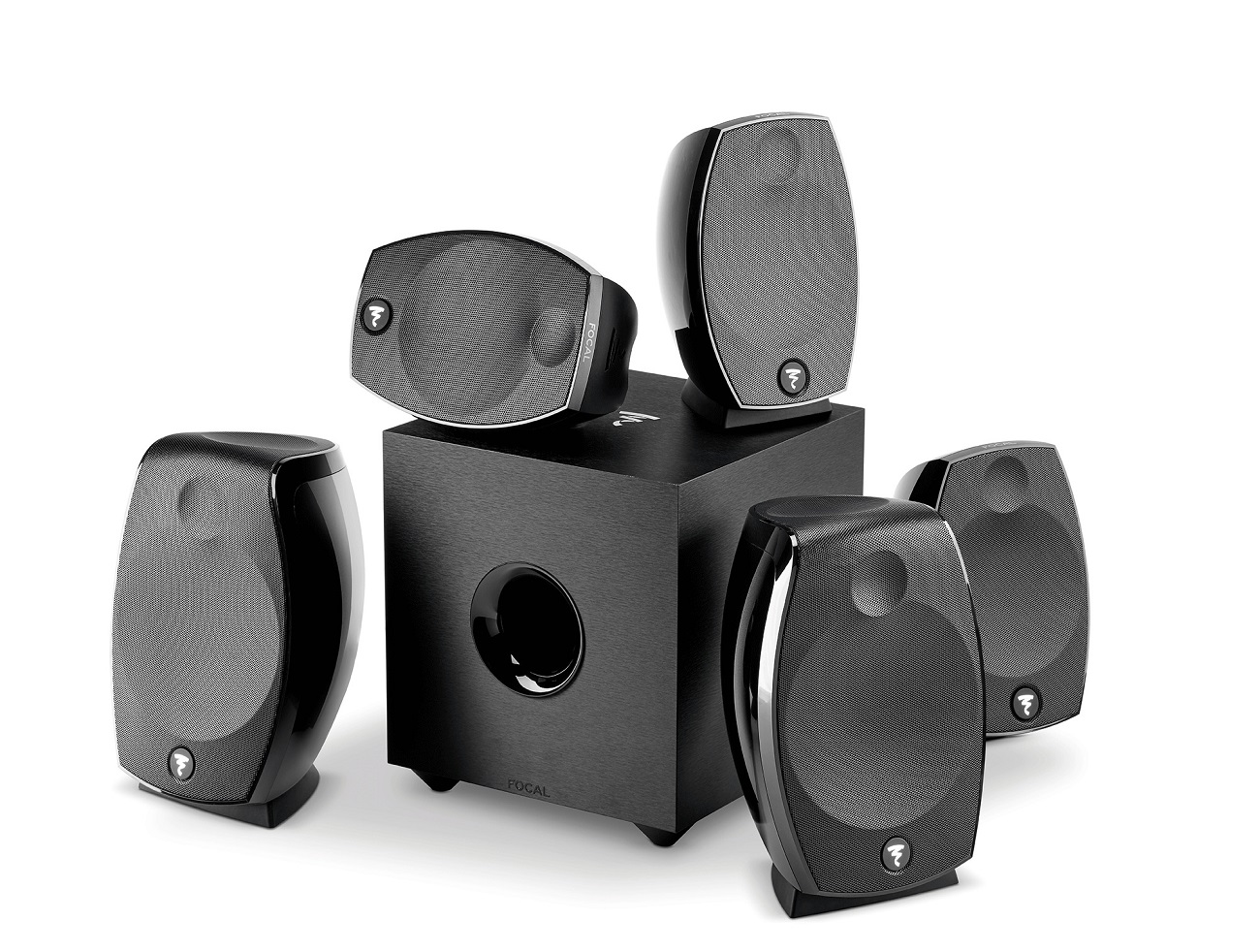

Focal Sib Evo Atmos 5.1.2
