Το Advance Paris WTX-TUBES είναι δέκτης Bluetooth Hi-Fi με αναλογικό στάδιο εξόδου λυχνίας (Class A). Χρησιμοποιεί 2 λυχνίες Raytheon 5703 (military quality), ενσωματώνει tri-core επεξεργασία και DAC Wolfson WM8740 24-bit/192 kHz, ενώ υποστηρίζει codecs υψηλής ευκρίνειας aptX HD.

Εγγύηση Αντιπροσωπείας. Δυνατότητα δόσεων.

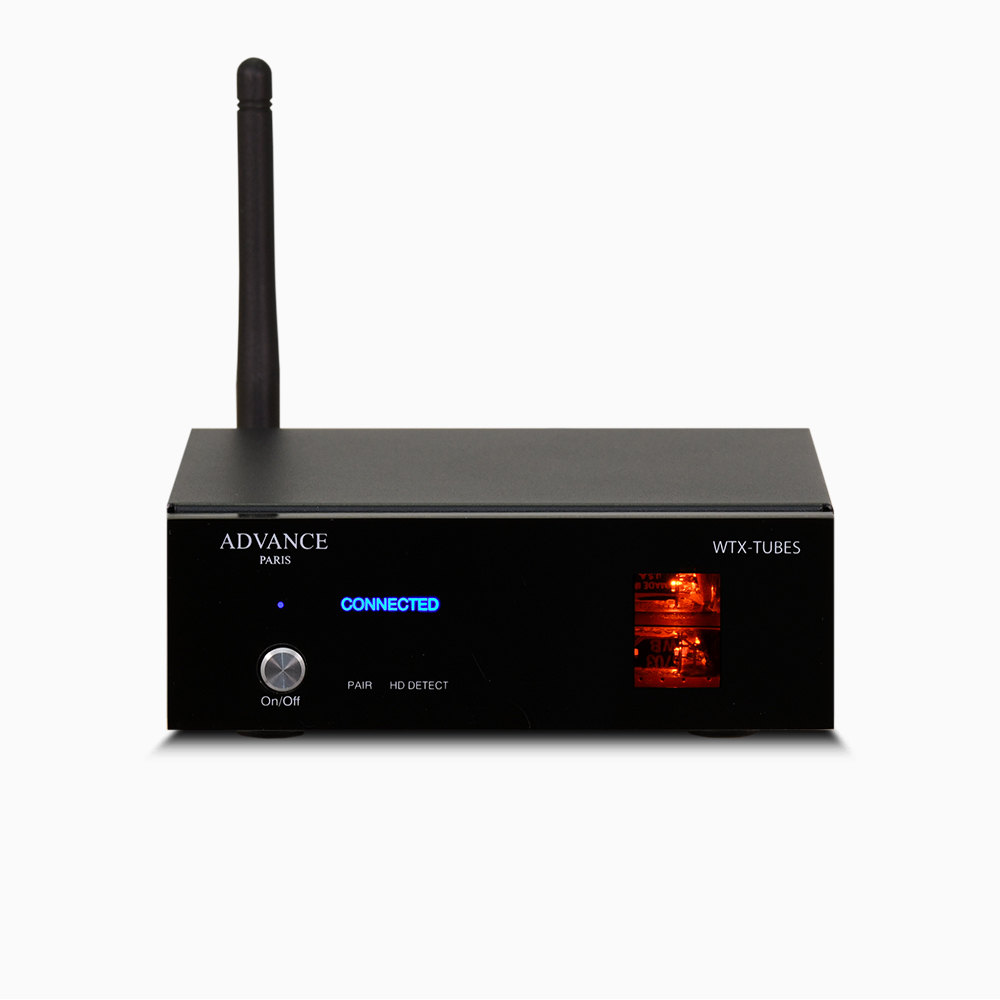

The Advance Paris WTX-TUBES is a Hi-Fi Bluetooth receiver engineered to bring a more “analog” and musical character to wireless audio. The goal was clear: reduce the overly digital edge often associated with dematerialized music and restore a warmer presentation closer to the vinyl spirit.

To achieve this, the WTX-TUBES combines a Class-A tube output stage built around a pair of Raytheon 5703 subminiature tubes (military quality) with modern digital processing. A tri-core processing architecture (32-bit Dual-Core plus 120 MHz Single-Core) works alongside the independent Wolfson WM8740 24-bit/192 kHz DAC to deliver refined conversion and stable, low-jitter performance.

With Bluetooth 5.0 and high-definition codec support (aptX HD), the WTX-TUBES is designed to pass HD files with ease and present them with improved precision and balance. It also provides both analog RCA outputs and digital outputs (optical and coaxial), making it easy to integrate into a wide range of systems—from classic integrated amplifiers to external DAC setups.

Specifications

• General Specifications
  • Name/Model: WTX-TUBES
  • Product type: Bluetooth receiver with analog tube output stage
  • Solution / architecture: QCC / Wolfson / Raytheon
  • Processing: Tri-core processing
    • DualCore: 32-bit
    • SingleCore: 120 MHz
  • Plug & Play: Yes
• Wireless
  • Bluetooth version: 5.0
  • Supported codecs: aptX, aptX HD, AAC, SBC
  • Transmission distance: approx. 10 m
  • Bluetooth antenna: External (BT ANT connector)
  • HD Detect function: Yes (HD DETECT switch)
• DAC & Tube Output Stage
  • DAC: Wolfson WM8740
  • DAC capability: 24-bit / 192 kHz
  • Dynamic range: 117 dB
  • Clock performance: Low clock jitter
  • Tubes: 2 × Raytheon 5703 (military quality)
  • Tube stage topology: Class A
• Audio Performance
  • THD: 0.003% @ 1 kHz
  • Signal-to-noise ratio: 97 dB
  • Frequency response: 20 Hz – 20 kHz (±0.5 dB)
• Outputs & Connections
  • Analog stereo output: RCA (L/R)
  • Digital outputs:
    • Optical (S/PDIF)
    • Coaxial (S/PDIF)
  • Digital output resolution: 24-bit (I2/S or S/PDIF)
• Power Supply
  • Power adapter: Included
  • Adapter input: 100–240 V AC, 50/60 Hz
  • Adapter output: 12 V DC / 1 A
• Dimensions & Weight
  • Dimensions (W × D × H): 130 × 110 × 42 mm
  • Dimensions (W × D × H, manufacturer info): 130 × 120 × 50 mm
  • Net weight: 532 g
  • Gross weight: 870 g
  • Unit box dimensions: 255 × 180 × 60 mm
  • Boxed weight: 0.9 kg
