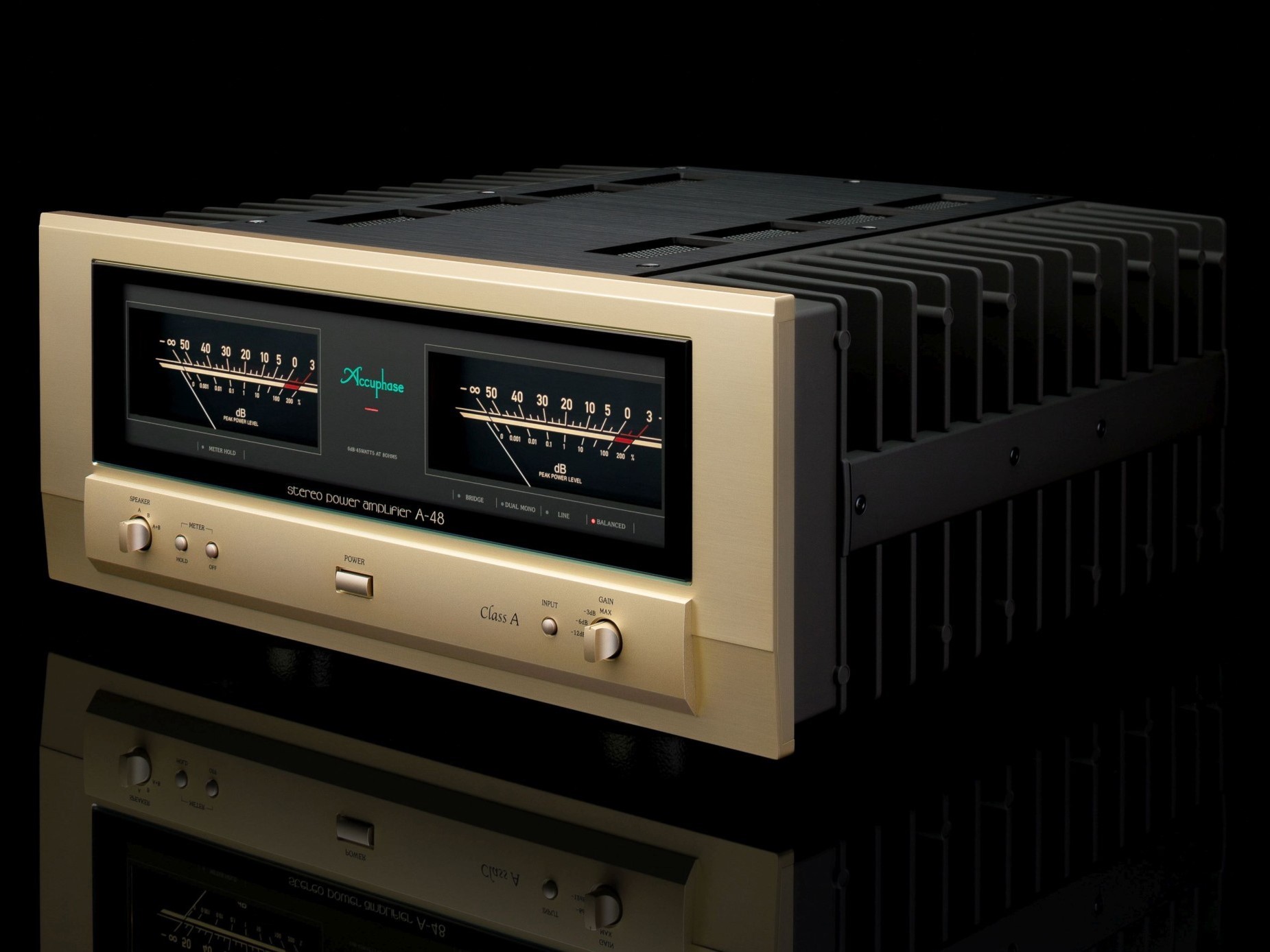

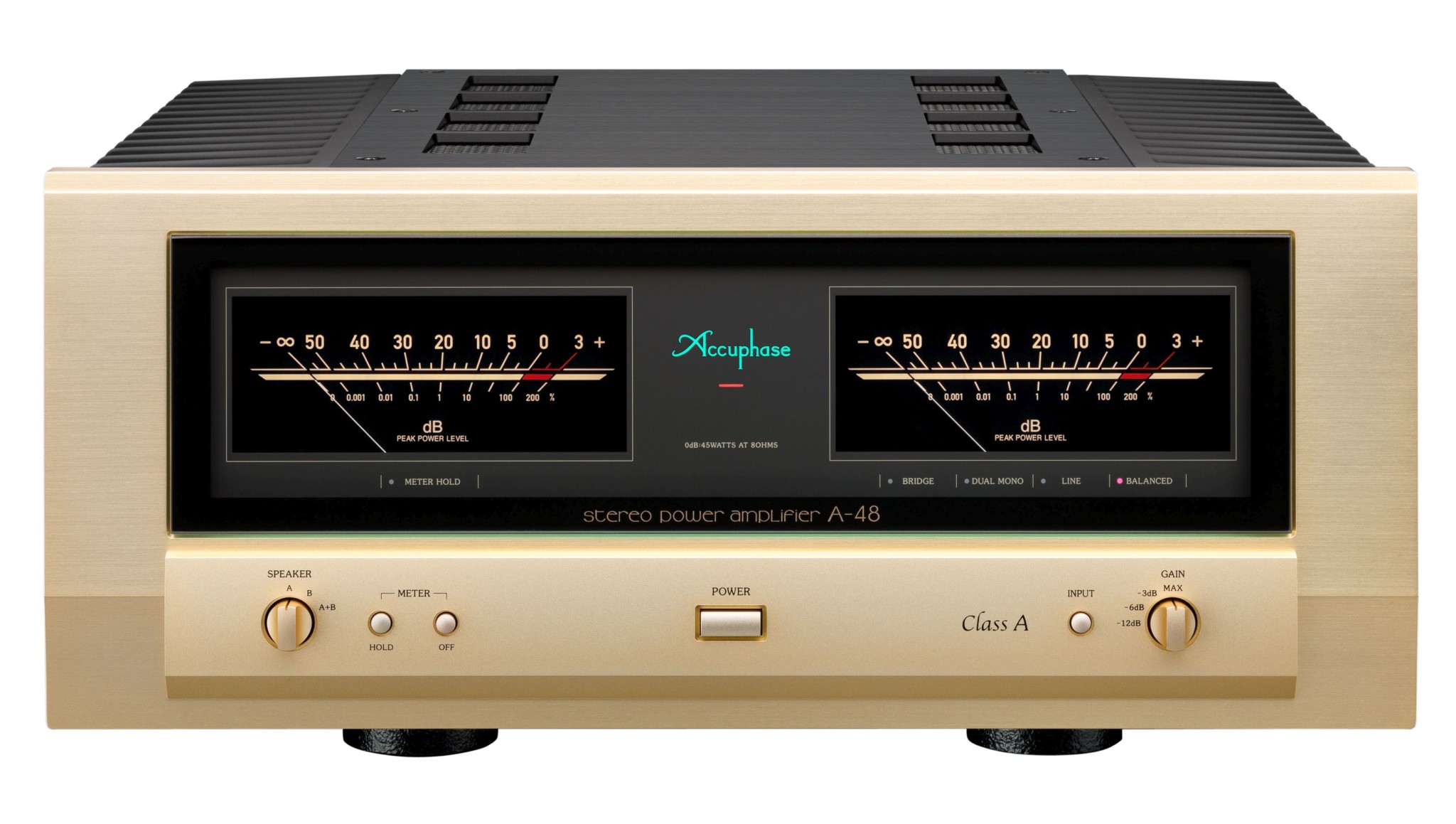

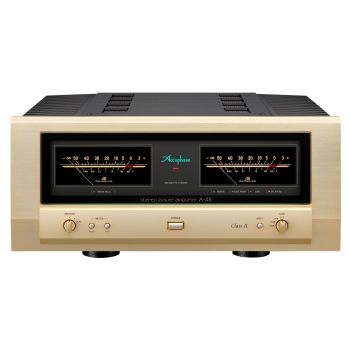

Ο Accuphase A-48 ειναι στερεοφωνικος τελικος ενισχυτης Class A, ισχυος 2x 45 watts at 8 ohms.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

Featuring a six-fold parallel push-pull architecture with power MOS-FETs, as well as ideal gain allocation realized with discrete semiconductors in an instrumentation amplifier configuration, the A-48 harnesses a wealth of advanced technology. Its outstanding performance is exemplified by a signal/noise ratio of 117 dB, output of 360 watts into 1 ohm (music signals), and a damping factor of 800. The newly designed output protection circuit can detect any short-circuiting of the speaker terminals, for complete peace of mind. This power amplifier is the ultimate instrument for immersive music appreciation on the highest level.

Features

• Power MOS-FETs in 6-parallel push-pull configuration
• Linear output characteristics over entire load impedance range

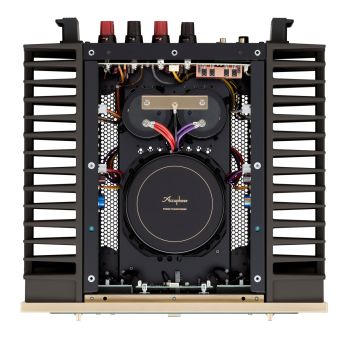

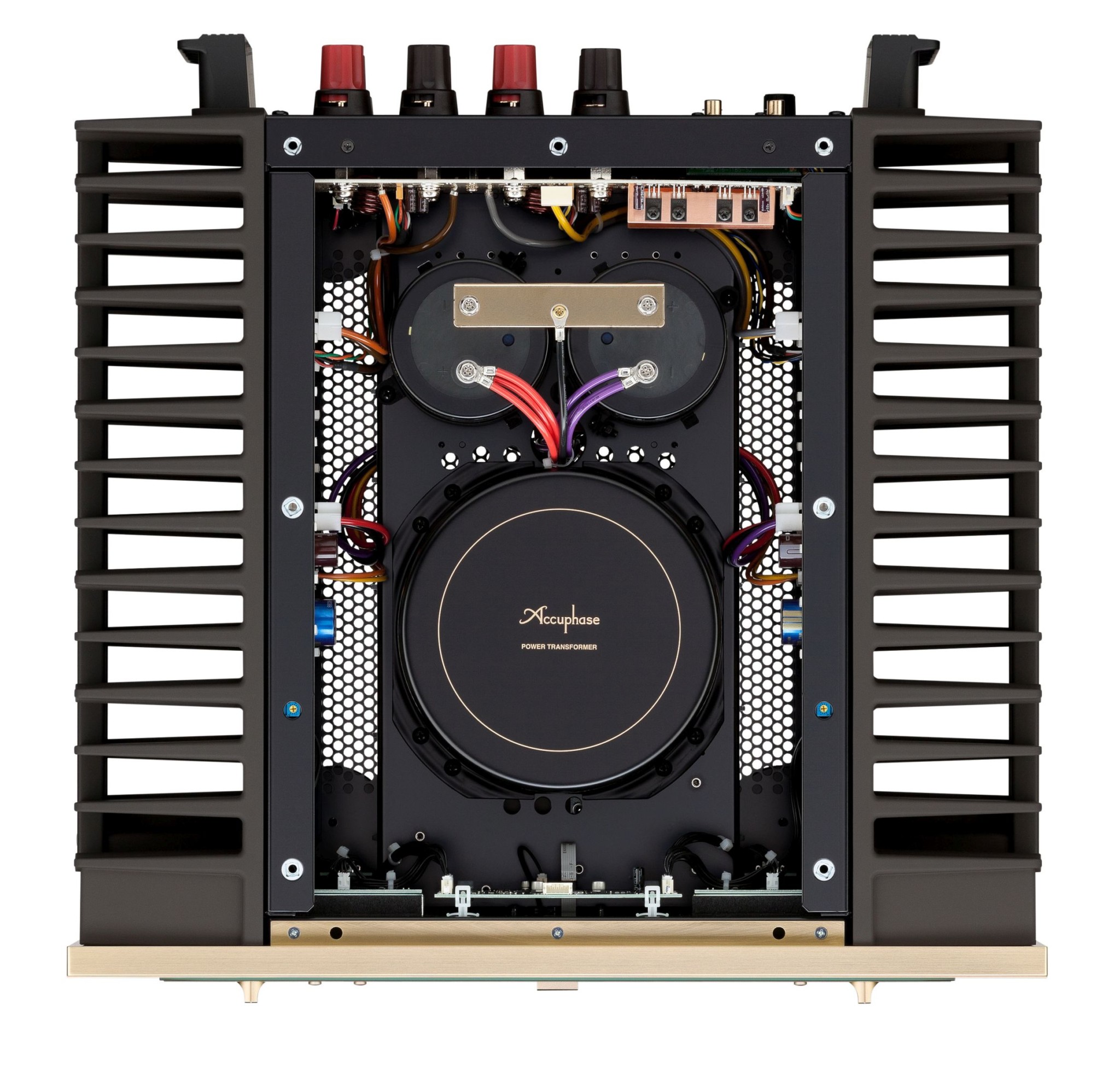

• Strong power supply with massive toroidal transformer and large 60,000 μF filtering capacitors
• Instrumentation amplifier principle
• High-gain signal input section in discrete configuration
• Dedicated power supply for signal input section
• Polarity switching for balanced input connectors
• MCS+ circuit topologys
• Current feedback principle in amplification circuitry
• Protection circuitry using MOS-FET switches
• High damping factor of 800
• Speaker output protection circuit guards against short-circuiting

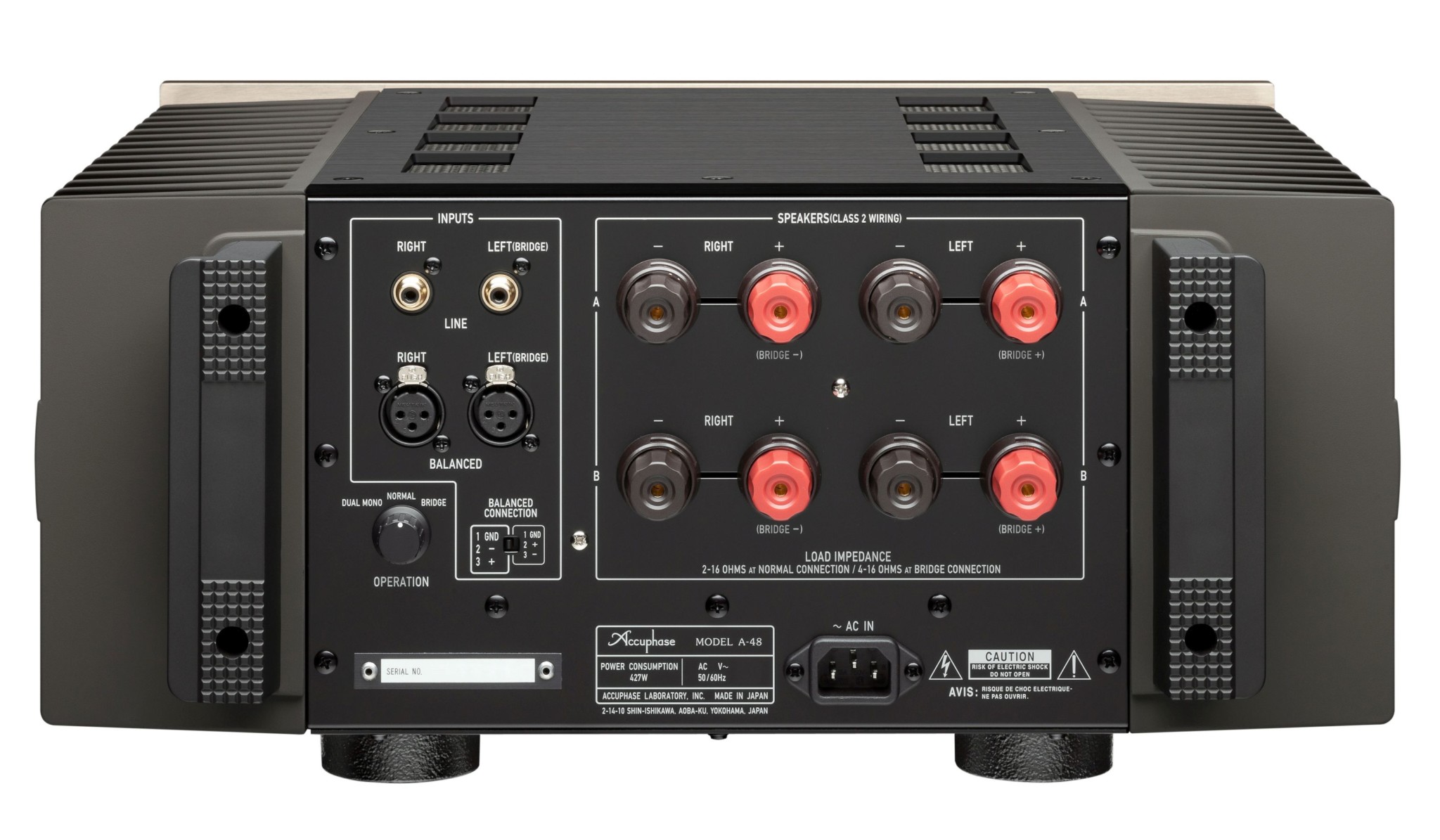

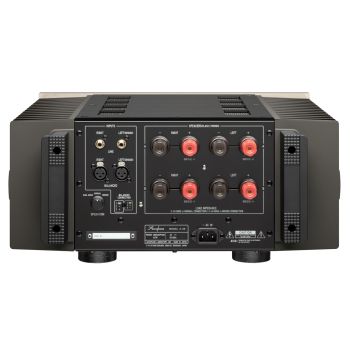

• Two sets of large speaker terminals
• 4-step gain control
• Support for bi-amping and bridged mode
• Aluminum top plate with hairline finish

Specifications

• Power output: 45 watts per channel into 8? (stereo), 180W into 8? (mono)
• Frequency response: 20Hz to 20kHz
• Total harmonic distortion: 0.03%
• Damping factor: 800
• Gain: 28 dB
• Input sensitivity: 0.87V
• Signal to noise ratio: 117dB
• Speaker load impedance: 2? to 16?
• Dimensions: 465 x 211 x 464mm
• Weight: 33kg Net
