Ο Yamaha M-5000 ειναι balanced τελικος ενισχυτης 2x100 W (8 ohm, 20 Hz-20 kHz, 0.07% THD, 2-ch driven).

Εγγυηση 2 χρονια αντιπροσωπειας (Φ.ΝΑΚΑΣ). Δυνατοτητα δοσεων.

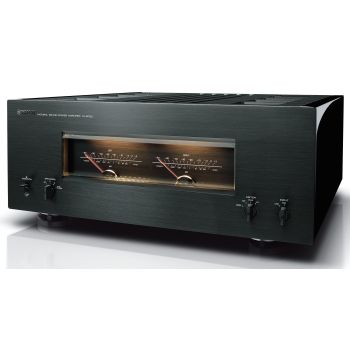

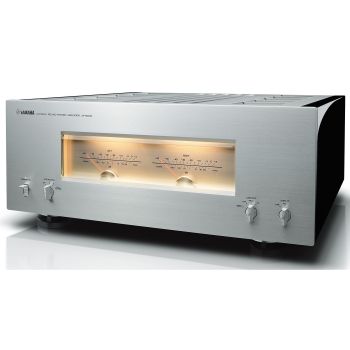

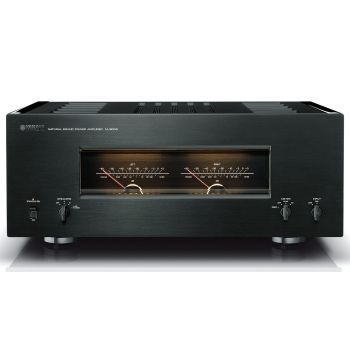

Yamaha M5000 With more than 130 years of experience, Yamaha has grown to become the world's leading sound company. The M-5000 embodies this spirit with time-honoured craftsmanship and market-leading innovation and serves as the epitome of high-fidelity audio reproduction.

Features

• 200 W + 200 W (4 ohm, 20 Hz-20 kHz, 0.07% THD, 2-ch driven)
• 100 W + 100 W (8 ohm, 20 Hz-20 kHz, 0.07% THD, 2-ch driven)
• Meticulously designed, balanced signal transmission
• Floating and balanced power amplifier layout for improved drivability
• Perfectly symmetrical design for isolating left and right channels
• Low impedance design with shortened signal and power supply paths
• Improved construction delivers state-of-the-art rigidity

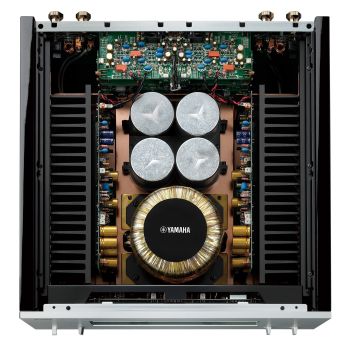

• Massive toroidal core power transformer

Specifications

• Input Terminal     RCA: 1, BAL: 1, TRIGGER IN: 1
• Output Terminal     TRIGGER OUT: 1
• Rated Output Power     100 W + 100 W (8 ohm, 20 Hz-20 kHz, 0.07% THD, 2-ch driven), 200 W + 200 W (4 ohm, 20 Hz-20 kHz, 0.07% THD, 2-ch driven), 400 W (8 ohm, 20 Hz-20 kHz, 0.07% THD, Monaural driven)
• Dynamic Power Per Channel     [IHF] 125 W + 125 W (8 ohm), 170 W + 170 W (6 ohm), 250 W + 250 W (4 ohm), 500 W + 500 W (2 ohm)
• Dynamic Headroom     0.97 dB (8 ohm)
• Maximum Output Power     220 W + 220 W (4 ohm, 1 kHz, 0.7% THD)
• IEC Output Power     125 W + 125 W (8 ohm, 1 kHz, 0.02% THD)
• Maximum Effective Output Power     [JEITA, 1kHz, 10% THD]135 W + 135 W (8 ohm), 270 W + 270 W (4 ohm)
• Power Bandwidth     10 Hz-50 kHz (8 ohm, 0.1% THD, 45 W)
• Damping Factor     300 or higher (8 ohm, 1 kHz)
• Input Sensitivity / Input Impedance     (BAL) 2.0 Vrms / 47 kohm, (LINE) 1.0 Vrms / 47 kohm [1 kHz 100 W / 8 ohm conversion]
• Maximum Input Signal Voltage     (BAL) 2.20 Vrms [1 kHz, 0.5% THD], (LINE) 1.10 Vrms [1 kHz, 0.5% THD]
• Frequency Response     +0 dB / -3 dB (5 Hz-100 kHz), +0 dB / -0.3 dB (20 Hz-20 kHz)
• Total Harmonic Distortion Plus Noise     2ch driven: 0.035% (LINE [BAL] to SP Out, 20 Hz-20 kHz, 50 W, 8 ohms), Monaural driven: 0.05% (LINE [BAL] to SP Out, 20 Hz-20 kHz, 200 W, 8 ohms)
• Channnel Separation     90 dB or higher (1 kHz, Input 1.0 kohm Terminated), 70 dB or higher (10 kHz, Input 1.0 kohm Terminated)
• Signal-to-Noise Ratio     [IHF-A network, Input 1 kohm shorted] 110 dB
• Residual Noise     [IHF-A network] (BAL) 40 uVrms, (LINE) 50 uVrms
• Meter Class     The 2.5th class
• Power Consumption     400 W
• Standby Power Consumption     Off Mode: 0.1 W, Standby Mode: 0.2 W
• Maximum Power Consumption     800 W
• Power Management (Auto Power Standby)     Yes
• Dimension (W×H×D)     435 x 180 x 464 mm
• Weight     26.9 kg
