Heed Questar-MC

Το Heed Questar MC ειναι phono stage MC κατασκευασμενο απο εξαιρετικης ποιοτητας υλικα. Διατιθεται με η χωρις τροφοδοτικο.

Heed Questar-MC without PSU Άμεση Διαθεσιμότητα 350.00€
Heed Questar-MC + X-PSU-40 Άμεση Διαθεσιμότητα 395.00€
Heed Questar-MC + Q-PSU-III Άμεση Διαθεσιμότητα 860.00€

ΔΩΡΕΑΝ ΑΠΟΣΤΟΛΗ ΣΕ ΟΛΗ ΤΗΝ ΕΛΛΑΔΑ

Tags
MC

Το Heed Questar-MC ειναι phono stage MC κατασκευασμενο απο εξαιρετικης ποιοτητας υλικα. Διατιθεται με η χωρις τροφοδοτικο.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

The Questars are destined to be the best entry-level options of the Heed modular line for vinyl reply that money can buy. Under the hood of their hefty, shielded steel chassis beats the heart of our Quasar MM/MC phonostage, conveniently divided into neatly-specialized a’ la carte portions.

The QUESTAR MM largely incorporates the Quasar’s unsurpassed MM circuitry, while its sibling, the Questar MC deploys a streamlined version of the Quasar’s MC stage, eliminating the need for jumper switches by optimising the amplifier to suit the 300-600 µV/100 Ohm output range characterising the vast majority of today’s moving coils. Considering its generous 18 dB headroom, ideal cartridge matching is virtually assured.

The internal construction of the Questars meets the most critical high-end standards in every respect. The amplifier employs an entirely dual-mono configuration and uses a two-stage – passive/active – RIAA equalisation. Gain adjustment has been optimised for maximum headroom and highest signal-to-noise ratio. Component parts are selected to exacting tolerances matching those of our Quasar.

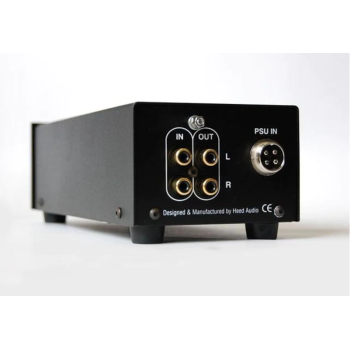

The Questars are suitable for any line-level amplifier input, and can easily drive virtually any length of interconnect. There is no internal wiring or binding, and all high-current parts of the circuit are shielded. Both models feature gold-plated RCA terminals soldered directly onto the PCB, limiting all signal paths to a bare minimum.

The Questars utilise an external power supply to avoid undesirable electro-magnetic interference within the chassis. Sonic performance can be even further enhanced by upgrading to the Q-PSU.

Features

  • 2 versions: MM or MC preamplifier
  • 2-stage topology
  • Discrete bipolar transistor circuits
  • Upgradeable power supply

Specifications

  • Input:     1x stereo RCA
  • Output:     1x stereo RCA
  • Frequency response:     20 Hz – 20kHz
  • Input sensitivity:     220 µV (MC)
  • Input impedance:     100 Ω (MC)
  • Gain:     42 dB (MM) / 64 dB (MC)
  • Power supply options:     X-PSU 30 (standard) / Q-PSU / Obelisk PX
  • Dimensions (W x H x D):     9.5 x 7.5 x 22 cm
