Το iFi audio Zen DAC Signature V2 ειναι USB DAC και ενισχυτης ακουστικων. Εξοδοι: 1x pair RCA, 1x  balanced Pentaconn. Εισοδος: USB 3.0

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Specifications

• desktop USB DAC with built-in high-performance headphone amp
• improves sound from your PC, laptop, digital music player, iPhone®, and/or Android™ phone
  • USB cable included (Type A to Type B)
• compact design with sturdy metal chassis
• four rubber feet with no-slip grip
• 16-core XMOS processor/microcontroller programmed by iFi's development team for optimized sound and perfect cooperation with digital-to-analog converter chip

Digital-to-analog converter:

• Burr-Brown "True Native" digital-to-analog converter chip for high-quality sound
• supported audio files: PCM and DXD up to 32-bit/384kHz; DSD up to DSD256 ( up to 11.2 MHz)
• offers full decoding for MQA (Master Quality Authenticated) audio files
• GMT (Global Master Timing) femto-precision clock and intelligent memory buffer to eliminate jitter

Balanced headphone amplifier:

• two front-panel headphone outputs:
  • one unbalanced 1/4" headphone output (3.5mm mini to 1/4" adapter included)
  • one balanced Pentaconn 4.4mm output
• low noise floor for clear audio reproduction
• output power (4.4mm):
  • 330mW @ 32 ohms
  • 6.6V @ 600 ohms
• output power (1/4"):
  • 230mW @ 32 ohms
  • 3.3V @ 600 ohms
• compatible with headphones from 16-600 ohms
• THD+N: 0.005
• signal-to-noise ratio: 113 dB

Front-panel controls:

• TrueBass sound control processing for boosting bass
• PowerMatch switchable gain
• high-precision volume control dial

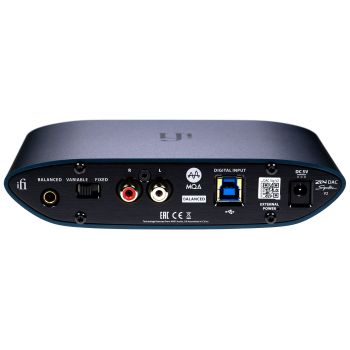

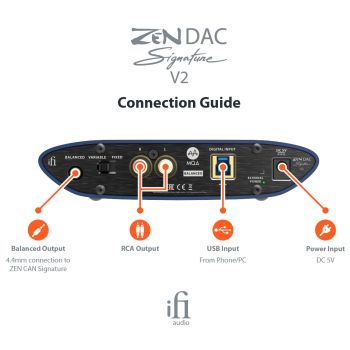

Back-panel DAC/preamp connections and controls:

• Type B USB input for connecting PC, smartphone, and other mobile devices
• one balanced 4.4mm output for connecting a compatible powered speaker or amp
• Note: do NOT connect balanced headphones to this output — the full signal could damage your headphones and/or hearing.
• line direct/preamp selection switch (fixed or variable)
• stereo unbalanced RCA preamp output with selectable fixed/variable level (RCA cables included)

Line output section:

• RCA output power: 2.1V (fixed); 1V-3.3V (variable)
• rear 4.4mm Pentaconn output power: 4.2V (fixed); 2V-6.2V (variable)
• THD+N: 0.0015%
• signal-to-noise ratio: 116 dB

General info and specs:

• draws power from your laptop or PC when connected via USB
• 5-volt DC power input
  • power cable not included
• color-coded LED indicator denotes MQA status:
  • blue indicates an MQA Studio file is playing
  • green indicates the MQA file is being decoded by the Zen DAC V2
• headphone output impedance: < 1 ohm (balanced and unbalanced)
• dimensions (measured by Crutchfield): 6-1/4"W x 1-3/4"H x 6-9/16"D
• weight: 1.13 lbs

What's in the box:

• D/A converter
• 20" USB cable (Type A USB 3.0 on one end and Type B USB 3.0 on other end)
• 20" Audio cable (stereo RCA plugs on each end)
• 3.5mm-to-1/4" adapter
• Quick Start Guide
• Warranty card
