Τα KLH Model-5 ειναι ηχεια βασεως, 3 δρομων, ακουστικης αναρτησης (κλειστου τυπου). Η σχεδιαση αυτη επιτρεπει στο 10" woofer, να κατεβαινει μεχρι τις κατωτερες οκταβες. Σχεδιασμενα απο τον Henry Kloss, κατασκευαζονται με εξελιγμενες μοναδες μεγαφωνων σε σχεση με τα πρωτα Model-5.

Καθε ζευγος ηχειων συνοδευεται απο ζευγος βασεων.

Εγγυηση 10 ετη Αντιπροσωπειας. Δυνατοτητα ανταλλαγων, δοσεων.

An iconic speaker, reborn
Henry Kloss and KLH introduced their original Model Five back in 1968, and it became a popular and broadly recognizable speaker that helped propel the company's success. This new version takes advantage of modern driver technology, but houses it in a retro-styled, acoustic suspension (sealed) cabinet that's similar to that of the original. And here's a rare touch for 2021, also from the original 1968 version — a passive sound-shaping switch that lets you tailor the speaker's output to your room's acoustics.

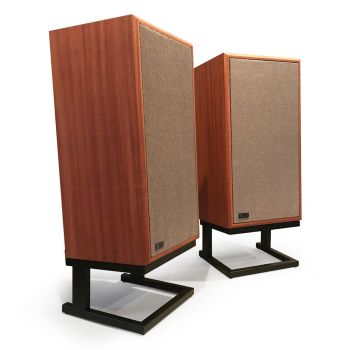

An elegant speaker with included stand

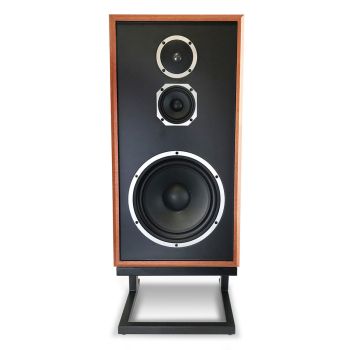

The KLH Model Five is a paragon of careful design — inside and out. Its 10" woofer and 4" midrange are supported internally by die-cast aluminum frames, and the 1" tweeter features a machined aluminum faceplate. High-quality inductors, capacitors and crossovers ensure that the three drivers perform with a high degree of harmony and accuracy. The sturdy cabinet is constructed of 3/4"-thick MDF with an elegant, genuine mahogany veneer finish.

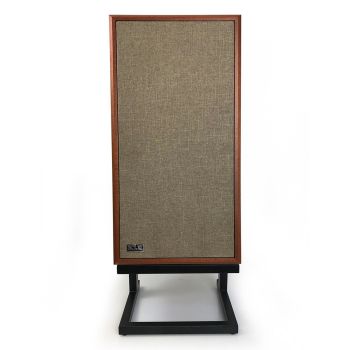

A magnetically attached linen grille is included, as is a custom steel riser that imparts a gentle 5-degree upward tilt. Optional custom linen grilles in alternate cloth colors are available.

The KLH name lives on
Henry Kloss and his partners founded KLH in Cambridge, Massachusetts back in the '50s. Kloss changed the audio industry with innovations like the acoustic suspension loudspeaker, the first-ever full-range electrostatic speaker, and the first high-selectivity table radio.

Today, KLH is headquartered in Noblesville, Indiana. The company's new speaker lineup represents a fresh take on that rich and varied KLH legacy.

Features

• Iconic Mid-Century Modern Styling
• Acoustic Suspension Design – The most accurate and linear enclosure design available today
• Three-Position Acoustic Balance Control to tailor the loudspeaker’s output for the most difficult acoustic environments
• Dedicated midrange driver to reproduce the critical mid-frequency band
• Non-Resonant Die-Cast Aluminum Midrange & Woofer Frames
• Die-Cast Aluminum Tweeter Faceplate
• KLH cabinetry featuring a structurally reinforced ¾” MDF enclosure
• Thirteen component network using high-quality iron-core inductors & Mylar capacitors
• Each speaker includes its own 5° slant riser base made of powder coated 14-gauge steel
• Low-profile magnet attached grille
• 10-Year Warranty

Specifications

• Frequency Response: 42Hz – 20,000Hz +/- 3dB
• Low Frequency Extension: -10dB @ 32Hz
• In-Room Sensitivity: 90.5dB @2.83V / 1M
• Power Handling: 200 Watts / 800 Watts Peak
• Recommended Amplification: 20 Watts to 200 Watts
• In-Room Maximum SPL: 112.3dB
• Impedance: 6 Ohms (3.5 ohm minimum @140 Hz)
• Horizontal Dispersion: 140° Degrees
• Features: Three-Position Acoustic Balance Control
• Crossover Frequency: MF: 380Hz (2nd Order Electro-Acoustic), HF: 2,850Hz (2nd Order Electro-Acoustic)
• High Frequency Driver:  1" Aluminum Dome with Soft  Rubber Suspension
• Mid Frequency Driver:  4" Pulp-Paper Cone with Reverse  Roll Rubber Suspension
• Low Frequency Driver:  10" Pulp-Paper Cone with Reverse  Roll Rubber Suspension, 2" Diameter Flat-Wire Voice Coil
• Enclosure Material: Structurally Reinforced ¾" Medium Density Fiberboard
• Inputs: Five-Way Gold-Plated Binding Posts
• Height: 87.0cm w/ Included Riser Base, 66cm w/o Riser Base
• Width: 35.0cm
• Depth: 33.0cm w/ Included Riser Base, 29.2cm) w/o Riser Base
• Weight: 20.0kg w/o Riser Base, 23.6kg) w/ Included Riser Base
• Included Accessories: 5° Slant Riser Base

Finish:

• Genuine West African Mahogany Veneer with Old World Linen grilles (optional: Stonewash Linen grilles)

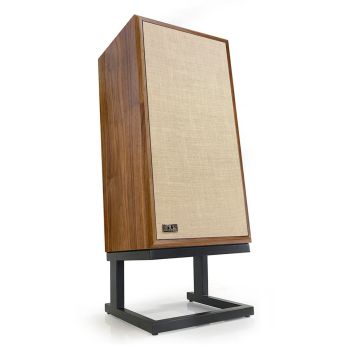

• Genuine English Walnut Veneer with Stonewash Linen grilles (optional: Old World  Linen grilles)
