Audio-Technica AT-OC9XEN

Η Audio-Technica AT-OC9XEN ειναι κεφαλη κινητου πηνιου (Dual Moving Coil), χαμηλης εξοδου, με ελλειπτικη βελονα. Εξοδος 0.35mV

Τιμή Καταλόγου: 429.00€
382.00€

Διαθεσιμότητα: 4-10 ημέρες

ΔΩΡΕΑΝ ΑΠΟΣΤΟΛΗ ΣΕ ΟΛΗ ΤΗΝ ΕΛΛΑΔΑ

Η Audio-Technica AT-OC9XEN ειναι κεφαλη κινητου πηνιου (Dual Moving Coil), χαμηλης εξοδου, με ελλειπτικη βελονα. Εξοδος 0.35mV

The Next Generation of the legendary OC9 cartridge series.The Audio Technica AT-OC9XEN MC cartridge from the OC 9 product line replaces the AT-F7. Since its introduction more than 30 years ago, Audio-Technica’s pioneering moving coil OC9 cartridge series has been prized by demanding vinyl listeners and professional critics alike for its musical transparency, expression of sound and precise construction. Featuring a square shank for accurate stylus alignment and nude diamond for increased fine detail retrieval.

Features

  • Low mass nude elliptical stylus and aluminium cantilever
  • A neodymium magnet and pure iron yoke provide increased magnetic energy
  • Threaded inserts in the cartridge body enable the cartridge to be mounted on to the headshell or integral tonearm with just two screws – no nuts required
  • Aluminium body minimizes unwanted vibration for reduced resonance and a superior audio reproduction
  • Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve the purest signal possible

Specifications

  • Model AT-OC9XEN
  • Mounting 1/2” centers / Threaded inserts
  • Frequency Response 20 - 30,000 Hz
  • Body Material Aluminium
  • Channel Separation 25 dB (1 kHz)
  • Output Channel Balance 1.5 dB (1 kHz)
  • Output Voltage 0.35 mV (@ 1 kHz, 5 cm/sec)
  • Vertical Tracking Angle 20 degrees
  • Vertical Tracking Force Range 1.8 to 2.2 g (standard 2.0 g)
  • Stylus Shape Elliptical Nude
  • Stylus Size 0.3 x 0.7 mil
  • Stylus Construction Nude square shank
  • Cantilever Aluminium pipe
  • Coil Impedance 12 Ohms (1 kHz)
  • Coil Inductance 25 μH (1 kHz)
  • DC Resistance 12 Ohms
  • Static Compliance 20 x 10 – 6 cm / dyne
  • Dynamic Compliance 9 x 10 – 6 cm / dyne (100 Hz)
  • Terminal Pins Brass
  • Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process.)
  • Recommended Load Impedance Min 100 Ohms
  • Cartridge Weight 7.6 g
  • Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm

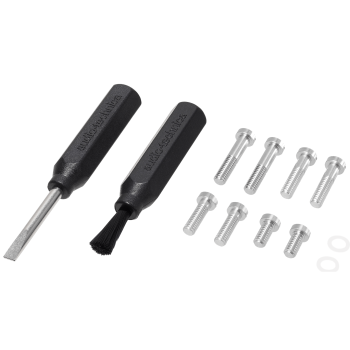

  • Accessories Included 1 non magnetic screw driver, 1 brush, 2 washers, 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm, 1 plastic protector
