Supra SW-EU 16A

Το Supra SW-EU ειναι βυσμα Schuko για καλωδιο ρευματος διαμετρου εως 11mm.

21.00€

Άμεση Διαθεσιμότητα

ΚΟΣΤΟΣ ΑΠΟΣΤΟΛΗΣ ΟΠΟΥΔΗΠΟΤΕ ΣΤΗΝ ΕΛΛΑΔΑ: 2,60€

Το Supra SW-EU ειναι βυσμα Schuko για καλωδιο ρευματος διαμετρου εως 11mm.

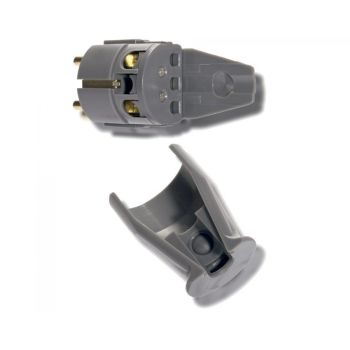

Supra SW-EU - Male Mains Plug
Hospital and Audio Grade male mains plug for high-end mains power cables such as Supra LoRad. Conforms to European standard and fits all EU except UK/Ireland, Belgium and Italy. Fits in France. The plug provides 24K gold plated pins and cabel screw clamps for solid joints with minimal contact degradation. The mains plug accepts cable diameters up to 11 mm and cable lead area up to 2.5 mm2.

Supra Mains Connectors
offer a flexible, sturdy and durable connection between the mains power and devices. There is not one piece over-engineered, the conductors provides for long service life and stable connection as well as patented housing that do not require pre-mounting on the cable and integrates the housing assembly with the cable strain relief. Off course the conductors are plated with a good layer of 24K gold that will endure also frequent re-connections. The perfect match to our mains flex cables, that allow customers with duly knowledge (N.B. check the local law and regulation what level of do-it-yourself work that is approved) to build their own custom mains flex cord sets. Finally they are of approved hospital-, audio grade design and approved for use in airport control towers where an interference jammed e.g. aeroplane radar would be disastrous.

Patent holder: Tommy Jenving, founder of Supra Cables and Jenving Technology, Sweden

Technical data

Standard European except Britain, Ireland, Denmark, Switzerland and Italy
Maximal current 16 Ampere
Nominal (maximal) voltage 230 (250) Volt
Mains frequency 50 Hz
Maximal cable size Ø 11 mm
Maximal cable area 2.5 mm2
Pins and cable clamp 24K gold plated pins and screw clamps
Cable strain relief Integrated in housing assembly
