Η Audio-Technica ART9XI ειναι κεφαλη κινητου πηνιου (Dual Moving Coil), χαμηλης εξοδου, με βελονα shibata. Εξοδος 0.5mV

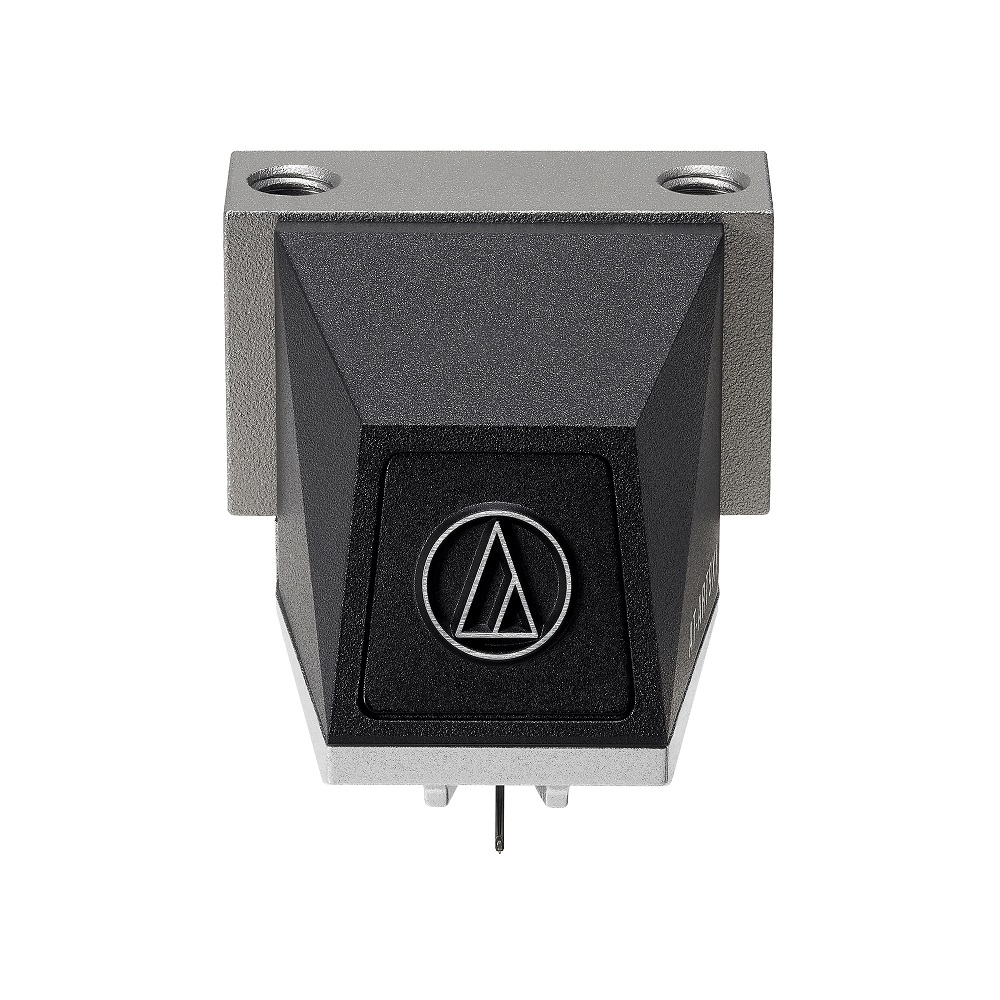

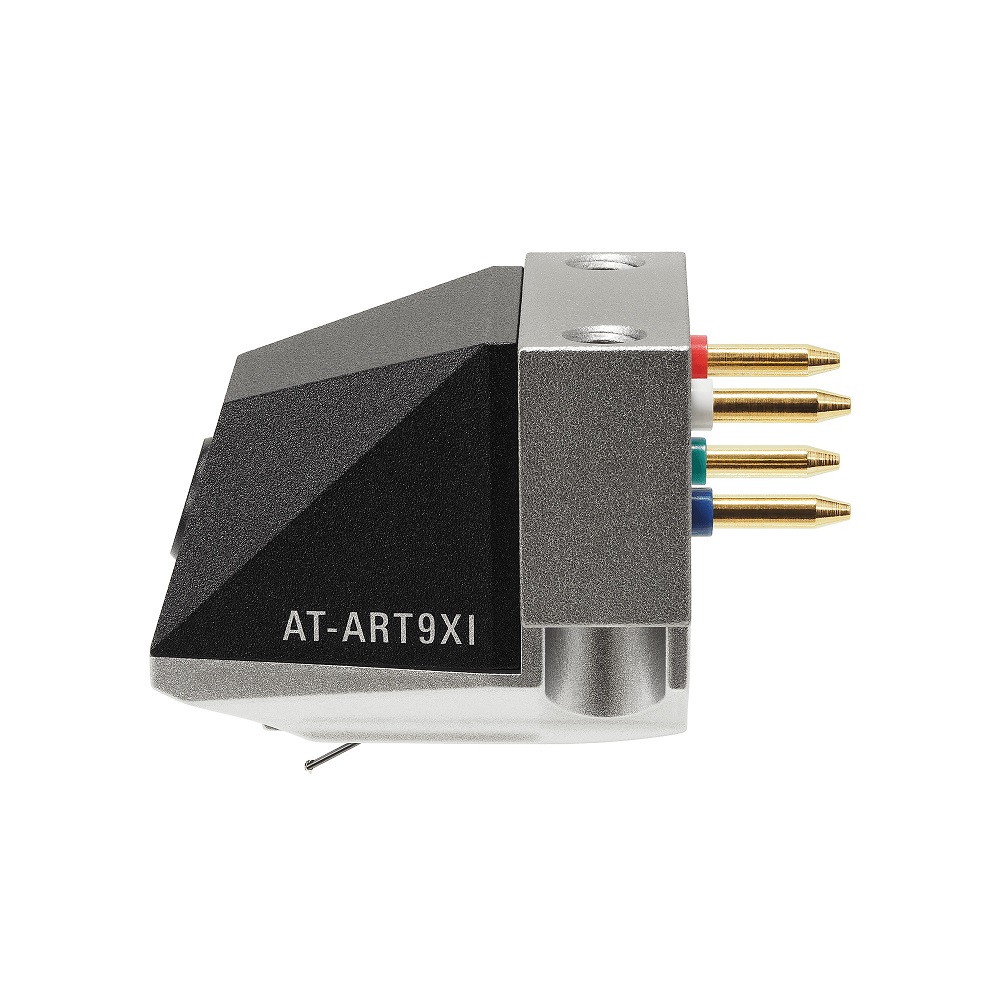

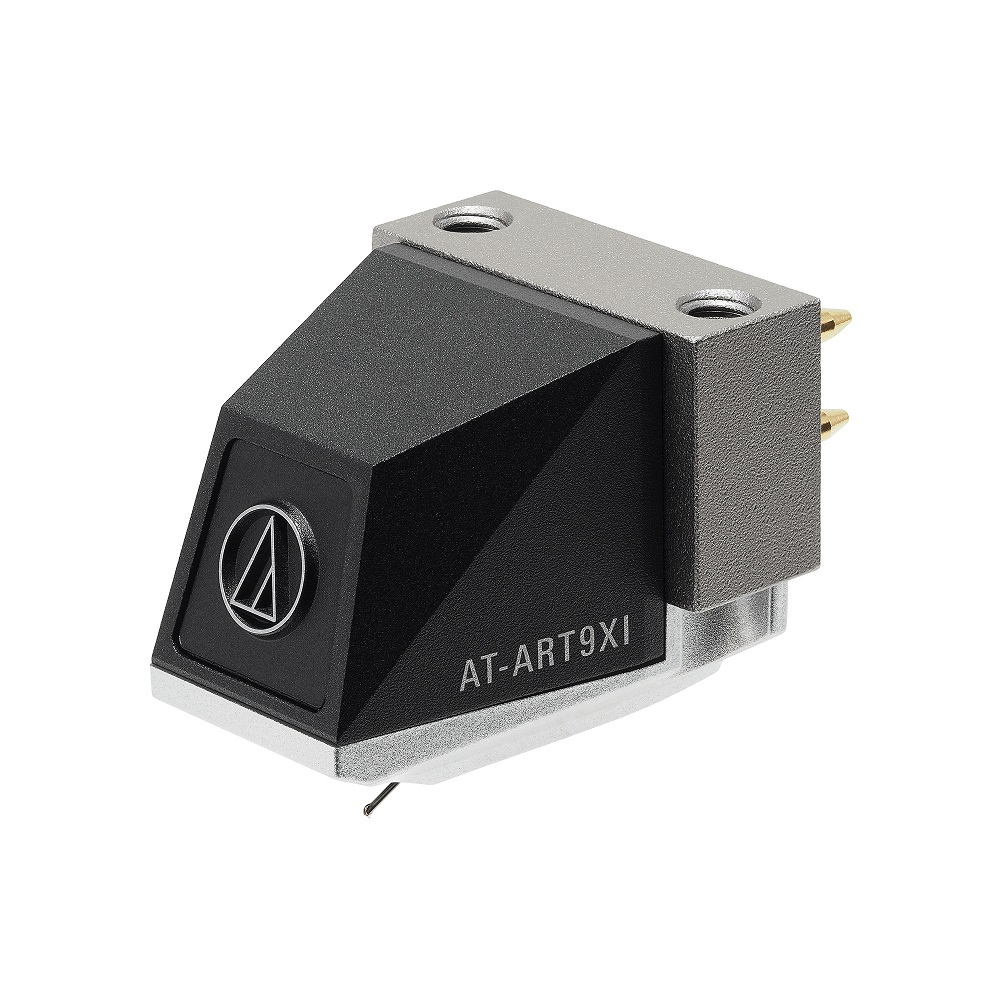

Featuring a special line contact stylus on a 0.28 mm diameter solid boron cantilever, the AT-ART9XI replaces the AT-ART9 as AudioTechnica’s flagship magnetic core MC cartridge.

Features

• Audio-Technica’s flagship magnetic core moving coil cartridge

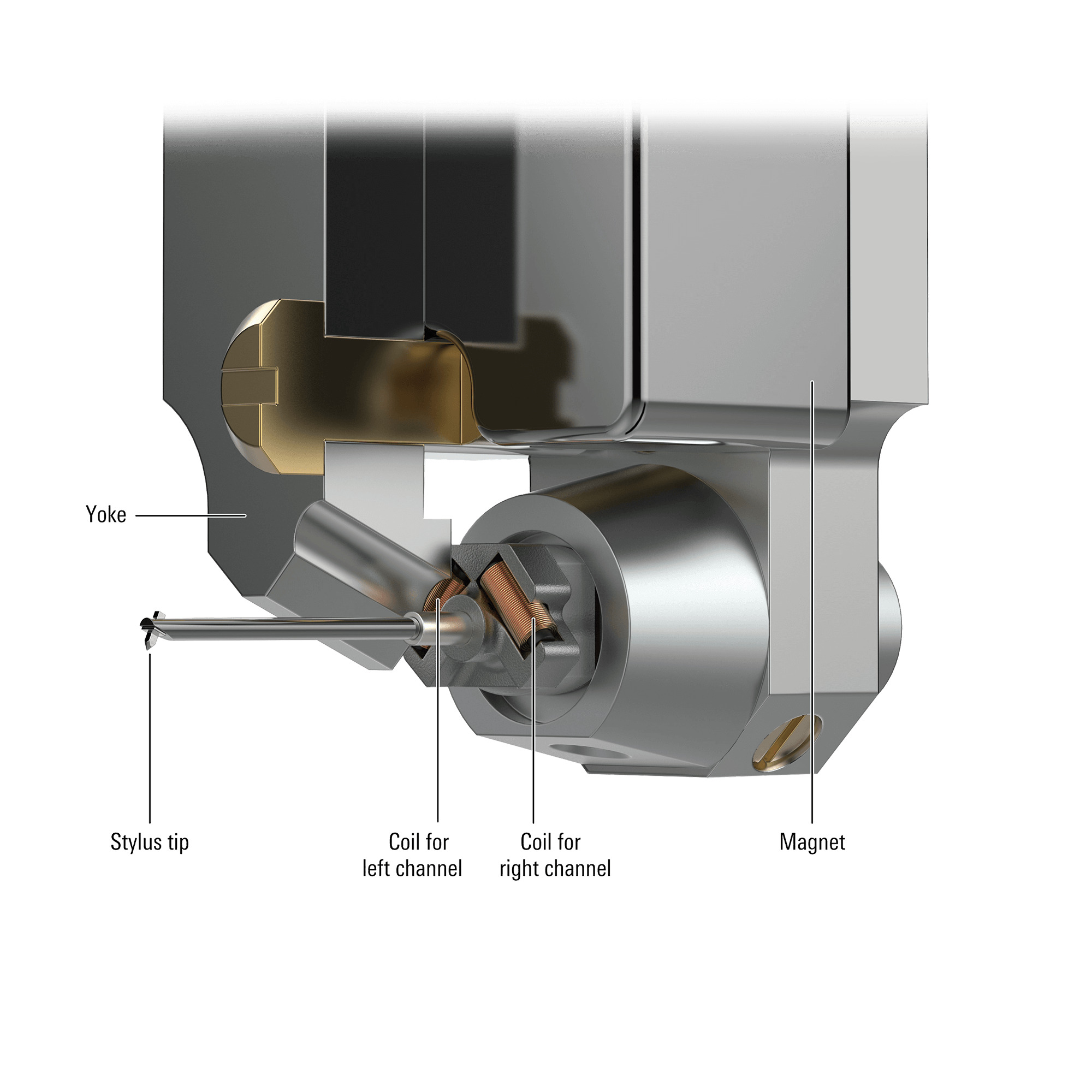

• Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localization and minimal distortion
• Special line contact stylus ensures faithful reproduction of the music signal, and the 0.28 mm diameter solid boron cantilever provides excellent response characteristics
• Neodymium magnet and permendur yoke significantly increase magnetic energy
• Specially designed magnetic circuit provides an output voltage of 0.5 mV (1 kHz, 5 cm/sec)
• PCOCC coils ensure high-fidelity transmission
• Machined aluminum base supports both the magnetic circuit and the vibration system, ensuring excellent playback stability
• Hybrid body of machined aluminum and high-rigidity plastic reduces undesirable parasitic resonance
• Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm

Specifications

• Frequency Response     20-50,000 Hz
• Channel Separation     30 (dB at 1 kHz)
• Vertical Tracking Angle     20°
• Vertical Tracking Force     1.6-2.0 g (1.8 g standard)
• Stylus Construction     Nude
• Recommended Load Impedance     Min. 100 ohms (when head amplifier connected)
• Coil Impedance     12 ohms (1 kHz)
• DC Resistance     12 ohms
• Coil Inductance     25 µH (1 kHz)
• Output Voltage     0.5 mV (1 kHz, 5 cm/sec.)
• Output Channel Balance     0.5 dB (1 kHz)
• Stylus Shape     Special line contact
• Cantilever     0.28 mm diameter solid boron
• Static Compliance     25 x 10-6 cm/dyne
• Dynamic Compliance     15 x 10-6 cm/dyne (100 Hz)
• Mounting     Half-inch
• Cartridge Weight     8.5 g (0.30 oz)
• Dimensions     17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D
• Accessories Included     Non-magnetic screwdriver; 2 washers; cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2); protector; brush
• Threaded Hole     M2.6 x 2
• Notes     Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
