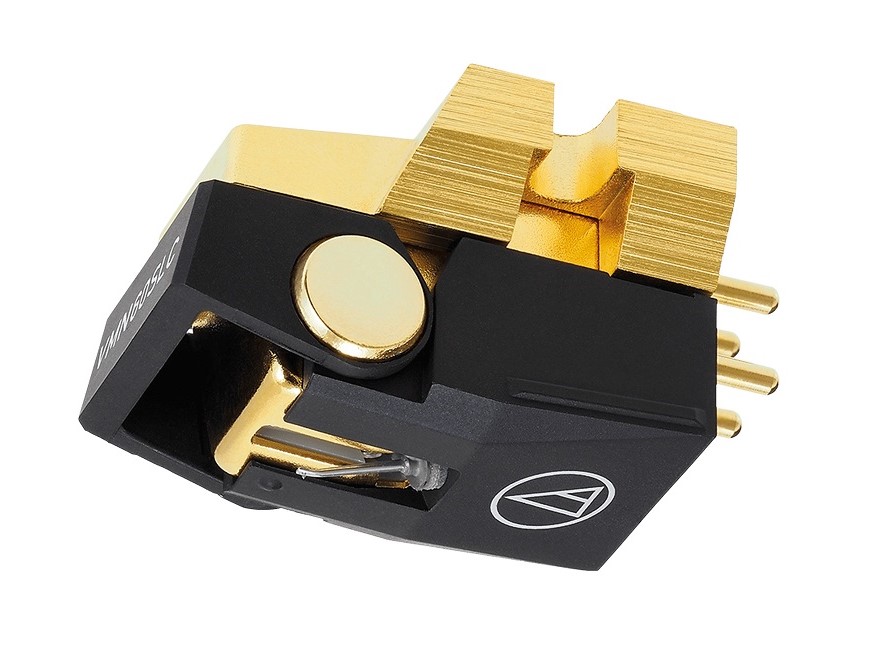

Η AudioTechnica VM750SLC ειναι κεφαλη διπλου μαγνητη, για πικαπ με Nude Rectangular Shank βελονα. Εξοδος 4mV.

Δυνατοτητα δοσεων.

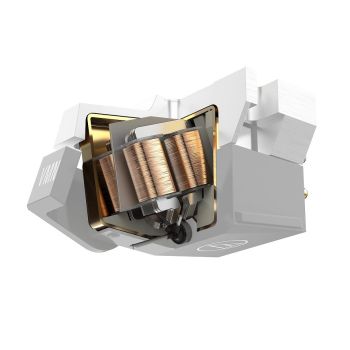

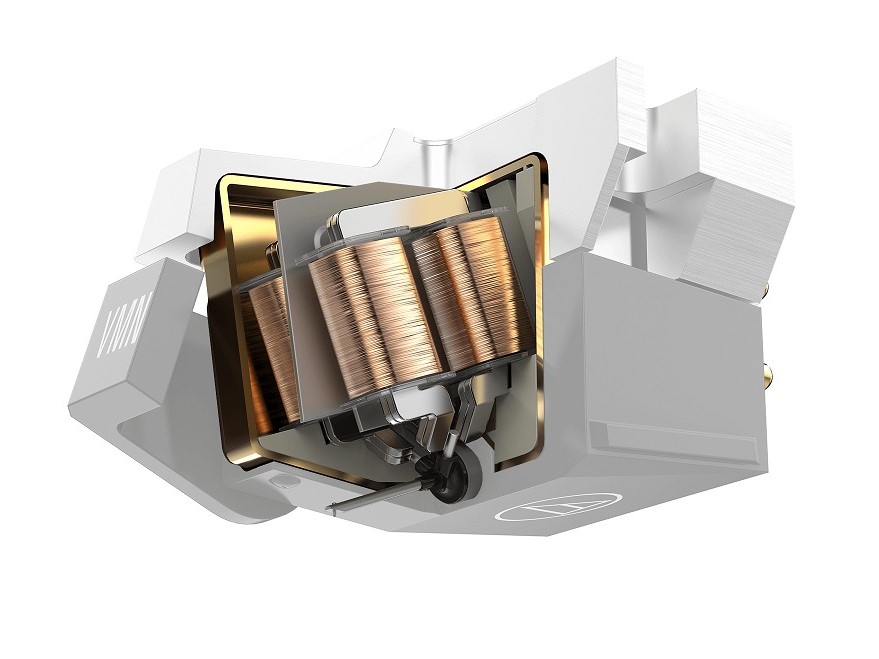

The VM760SLC special line contact stylus cartridge is the flagship model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM760SLC is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s ultra-lightweight special line contact stylus allows it to trace the record groove with incredible accuracy and minimum abrasion, resulting in nuanced audio reproduction, low distortion and low record wear. Includes mounting hardware.

Specifications

• Frequency Response     20 - 30,000Hz
• Channel Separation     30dB (1kHz)
• Vertical Tracking Angle     23o
• Vertical Tracking Force     1.8 to 2.2g (2.0g standard)
• Stylus Construction     Nude Rectangular Shank
• Recommended Load Impedance     47,000Ω
• Coil Impedance     2,700Ω (1kHz)
• Output Voltage     4.0mV (1kHz, 5cm/sec.)
• Output Channel Balance     1.0dB (1kHz)
• Stylus Shape     Special Line Contact
• Cantilever     Aluminium Tapered Pipe
• Static Compliance     40 x 10-6 cm/dyne
• Dynamic Compliance     10 x 10-6 cm/dyne (100Hz)
• Mounting     1/2” centres
• Dimensions     17.3 (H) x 17.0 (W) x 28.2 (L) mm
• Accessories Included     Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1
• Recommended Load Capacitance     100 – 200pF
• Replacement Stylus     VMN60SLC
• Stylus Size     0.28 x 1.5 mil
• Type     VM Type
• Weight     8.0g

Compatible Stylus

• AudioTechnica Stylus VMN10CB
• AudioTechnica Stylus VMN20EB
• AudioTechnica Stylus VMN30EN
• AudioTechnica Stylus VMN40ML
• AudioTechnica Stylus VMN50SH
• AudioTechnica Stylus VMN60SLC
• AudioTechnica Stylus VMN70SP 78 rpm
