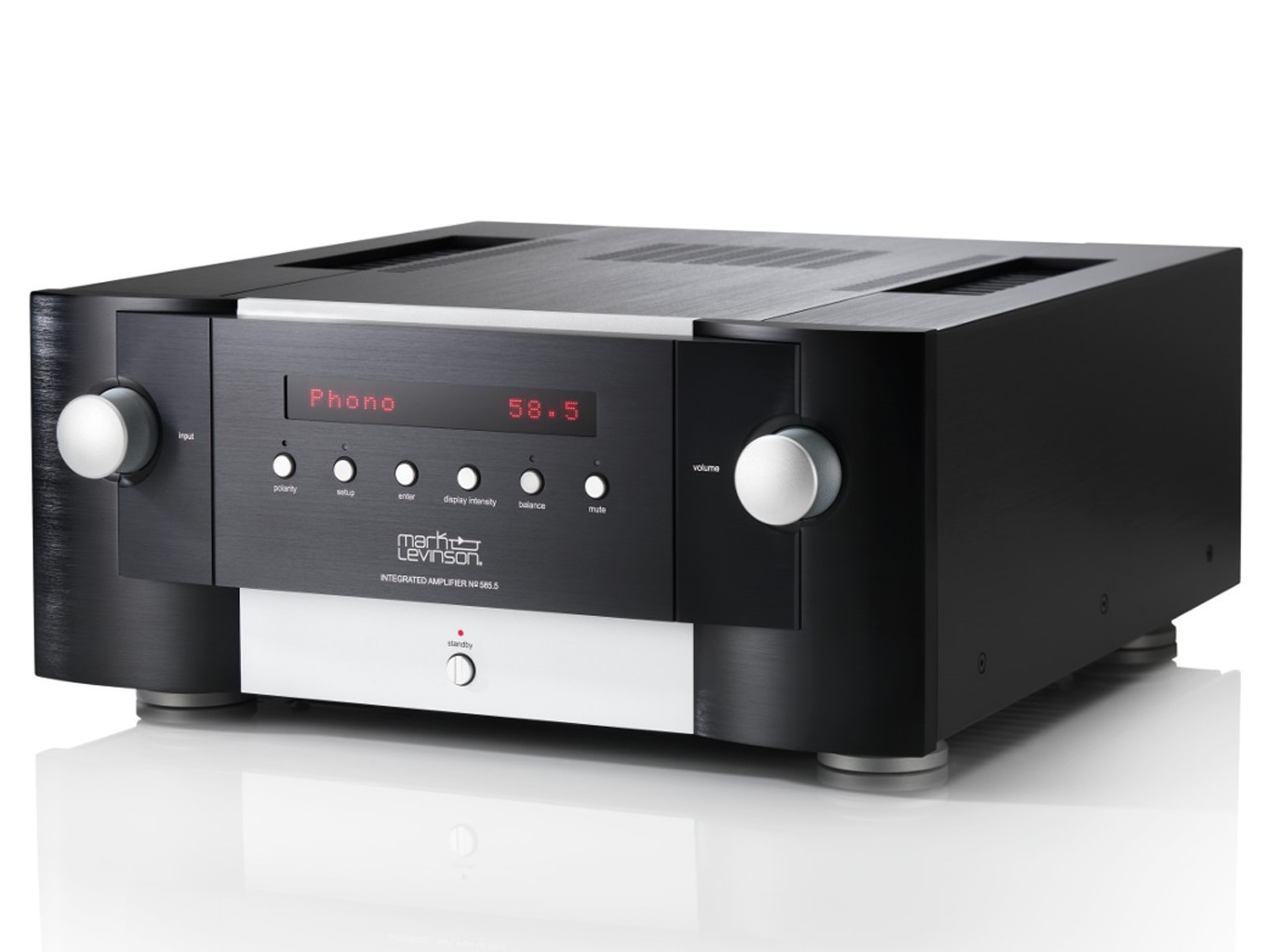

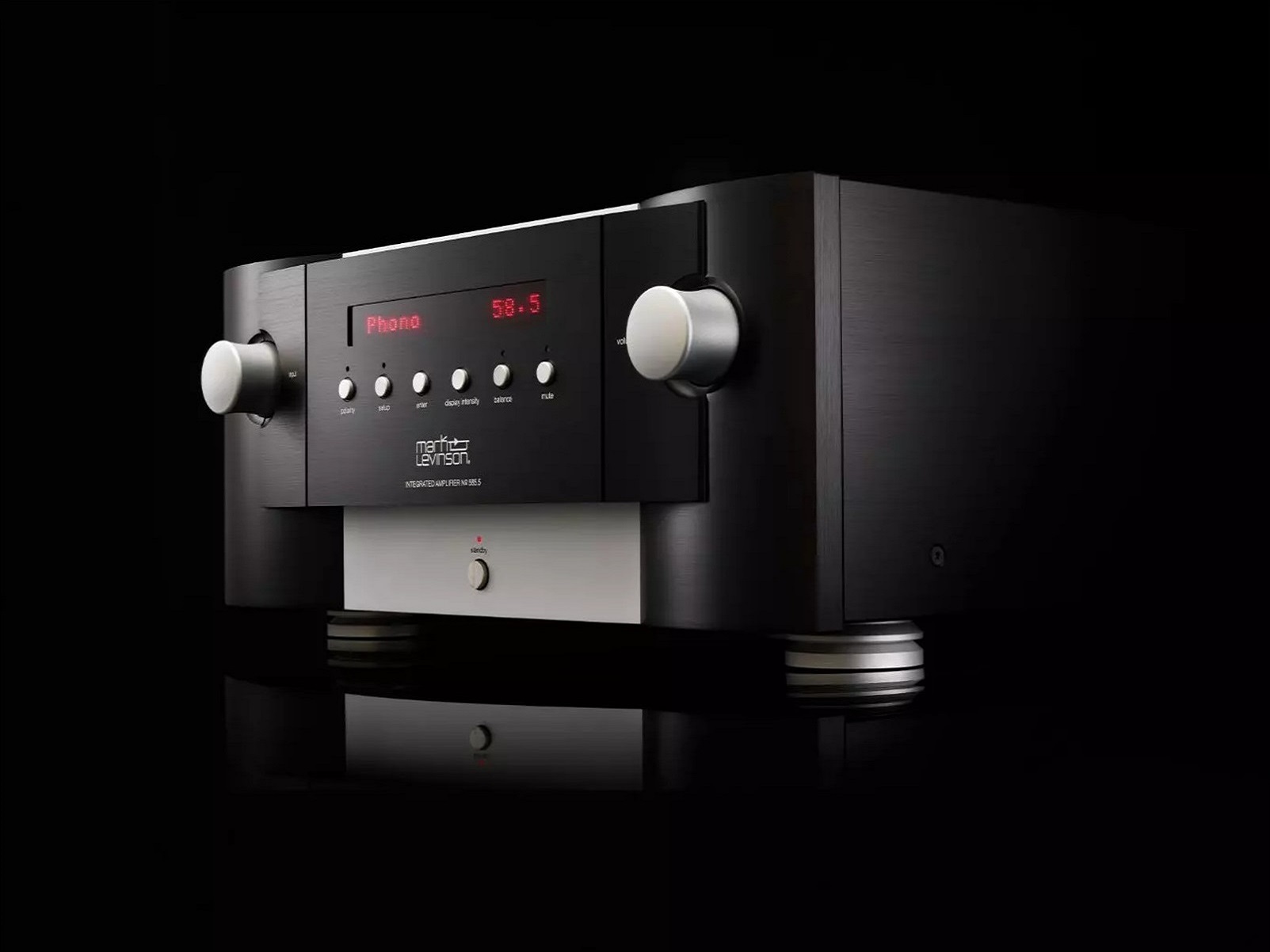

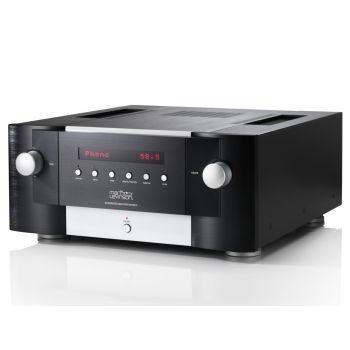

Ο Mark Levinson No 585.5 ειναι δικαναλος ενισχυτης, ισχυος 2x200 wrms at 8Ω. Διαθετει ενσωματωμενο DAC.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

Features

• Pure Path Phono preamp — a discrete design with no op-amps and operates exclusively in class A throughout
• High resolution sound from class-A/B amps
• Fixed-gain moving magnet (MM) section with 5 capacitive cartridge-loading settings
• Discrete analog circuitry throughout
• Moving coil (MC) section with three gain settings and 10 resistive cartridge-loading settings
• Ultrasonic filter intelligently compensates for rumble and warping
• 32-bit/192khz performance, including DSD over PCM via USB 80Hz high-pass option allows proper operation of a 2.1-channel system
• Designed and handcrafted in the USA

Specifications

Design:

• Fully Balanced Differential Class A/B Integrated Amplifier
• Dual Mono Architecture

Amplifier Section:

• Power Output: 200W RMS per Channel, 8 ?, 20Hz – 20kHz
• Frequency Response: 20 Hz – 20 kHz +/-0.13 dB; 2Hz – 250kHz, +0.2dB/–3dB
• THD: <0.01% at 1 kHz, 200W, 8 Ω; <0.1% @ 20kHz, 200W, 8 Ω
• Signal-to-Noise Ratio: >98dB (20Hz – 20kHz, unweighted); >103dB (20Hz – 20kHz, A-wtd), referred to full output – maximum volume setting
• Damping Factor: >400 @ 20Hz, Referred to 8 Ω
• Speaker Out Via 1 Pr “Hurricane” Binding Posts

Phono Stage:

• RIAA Frequency Response: 20Hz to 20kHz, ±0.3dB
• Infrasonic Filter Defeatable, 15Hz, 2nd order (12dB/octave)
• Moving Magnet Mode:
  • Input Resistance: 47k?
  • Input Capacitance: selectable; 50, 100, 150, 200, or 680pF
  • Gain: 40dB @ 1kHz
  • THD+N, 20Hz to 20kHz, 2VRMS output: <0.03%
• Moving Coil Mode:
  • Input Resistance: Selectable; 20, 33, 50, 66, 100, 200, 330, 500, 1000, or 47k
  • Input Capacitance: 50pF
  • Gain: Selectable; 50, 60, or 70dB @ 1kHz
  • THD+N, 20Hz to 20kHz, 2VRMS output: <0.02%, 50 or 60dB settings, <0.04%, 70db setting

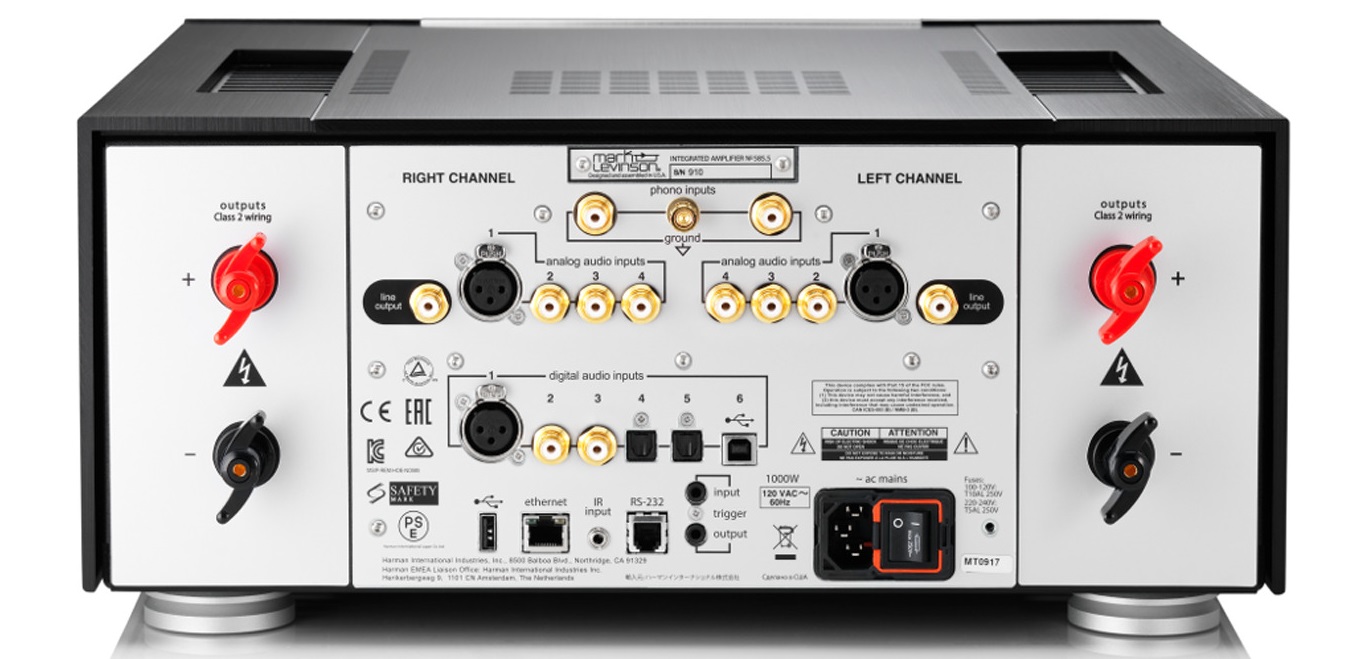

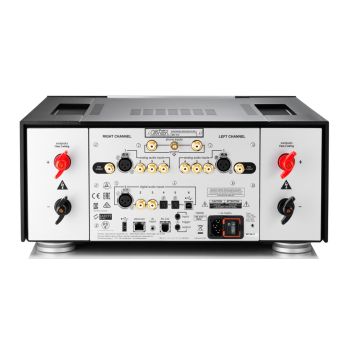

Preamplifier Section:

• Analog Inputs: 1 Balanced XLR, 3 Unbalanced RCA
• Input Impedance: >45k Ω (RCA & XLR)
• Digital Inputs: 1 AES/EBU (XLR); 2 Coaxial S/PDIF (RCA); 2 Optical (Tos-Link); 1 Asynchronous USB (USB-B)
• Outputs: 1 Unbalanced RCA Line Out

DAC Board – same as N^o 585:

• DAC output voltage @ full scale (0dBFS): 3.7VRMS
• DAC frequency response: 20Hz to 20kHz, +0 / ¬–0.2dB
• DAC THD, full scale (0dBFS): <0.0001% @ 1kHz, <0.0003% @ 20kHz
• DAC SNR (referred to 3.7VRMS / 0dBFS output): >120dB (A-weighted)
• PCM sample rates/bit depth: 32, 44.1, 48, 88.2, 96, 176.4, or 192kHz; up to 32 bits
• DSD: Native or DoP (DSD over PCM), single- and double-speed (2.8 and 5.6MHz)
