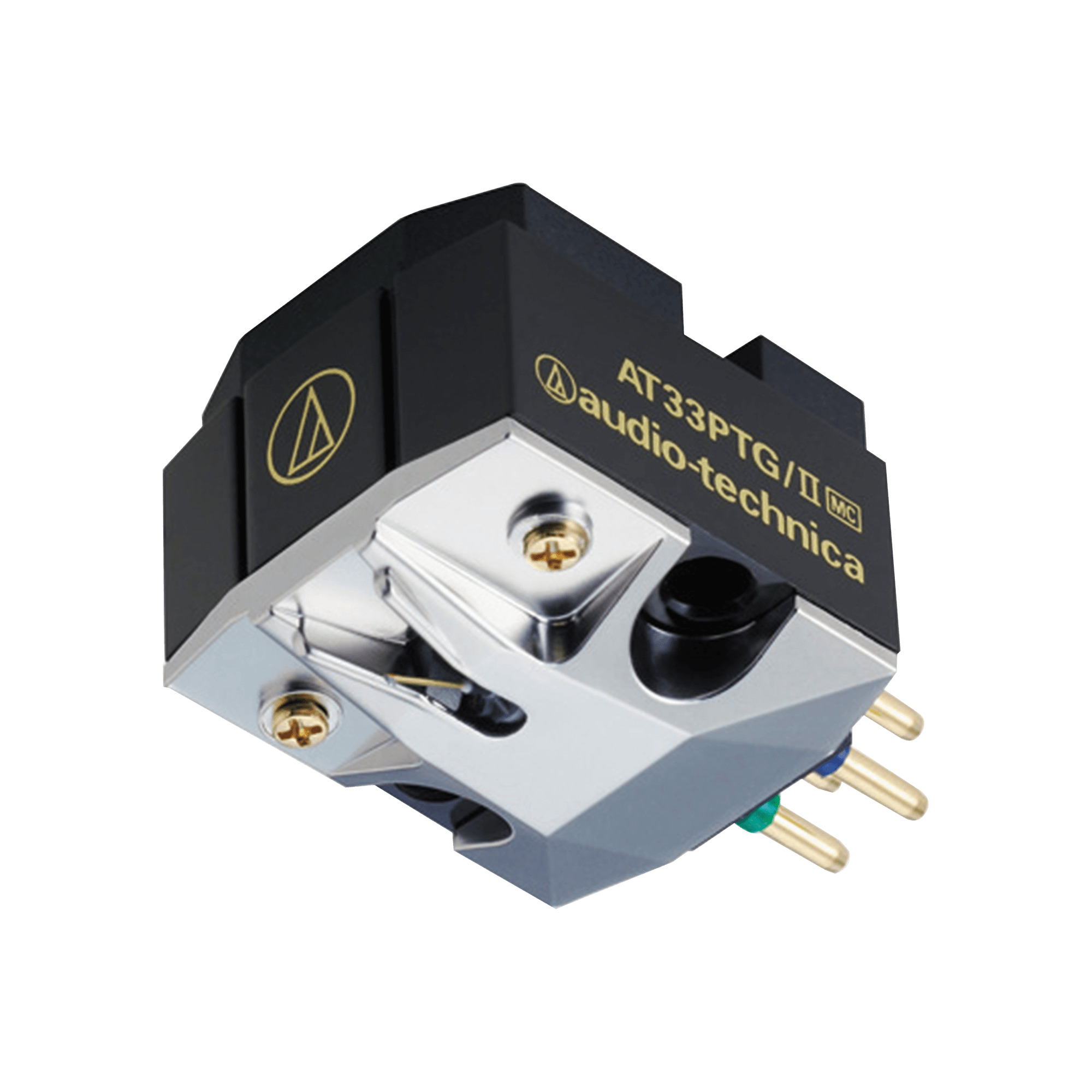

Η Audio-Technica AT-33PTG/II ειναι κεφαλη κινητου πηνιου (Dual Moving Coil), χαμηλης εξοδου, με βελονα microlinear. Εξοδος 0.3mV

Advanced nude tapered boron and weight reductionThis model succeeds in thinning down and shortening the cantilever, compared to the AT33PTG. The coil impedance is also refined from 17Ω to 10Ω. We realized significant weight reduction of the vibration system and successfully improved the basic performance and sound quality of the cartridge. High performance and long-life Microlinear stylusMicrolinear (ML) is a specially polished line contact stylus. This has better high range performance than the conical or elliptical stylus due to its small curvature radius and realizes low distortion and expanding high range reproduction even when playing at the inner circumference of records. And the constancy of the line contact shape is one of its main features with an average product lifetime of around 1000 hours.

Specifications

• Frequency Response     15 - 50,000Hz
• Channel Separation     30dB (1kHz)
• Vertical Tracking Angle     23°
• Vertical Tracking Force     1.8 to 2.2 g (standard 2.0 g)
• Stylus Construction     Nude Square Shank
• Recommended Load Impedance     Min 100Ω
• Coil Impedance     10Ω (1kHz)
• DC Resistance     10Ω
• Coil Inductance     22µH (1kHz)
• Output Voltage     0.3mV (1kHz and 5cm/sec.)
• Output Channel Balance     1dB (1kHz)
• Stylus Shape     Microlinear
• Cantilever     Gold-plated solid boron
• Static Compliance     40×10-6cm/dyne
• Dynamic Compliance     10×10-6cm/dyne (100Hz)
• Mounting     1/2" Centers
• Dimensions     H16×W16.6×D26.5mm
• Accessories Included     1 non magnetic screw driver; 2 washers; 2 Nuts; 2 x 13 mm mounting screws; 2 x 19 mm mounting screws; 1 plastic protector; 1 set of PCOCC Lead Wires(AT6101)
• Body Material     Aluminium/Synthetic Resin
• Stylus Curvature Radius     Micro linear
• Terminal Pins     Brass
• Type     Dual Moving Coil
• Weight     6.9g
