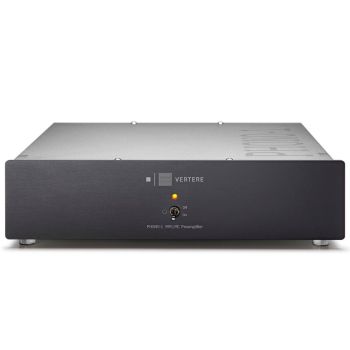

Το Vertere Phono-1 mkII L ειναι phono stage MM και MC, κατασκευασμενο me εξαιρετικης ποιοτητας υλικα. Διαθετει τεραστιo αριθμος επιλογων παραμετροποιησης, προκειμενου να ταιριαξει απολυτα σε οποιαδηποτε κεφαλη.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

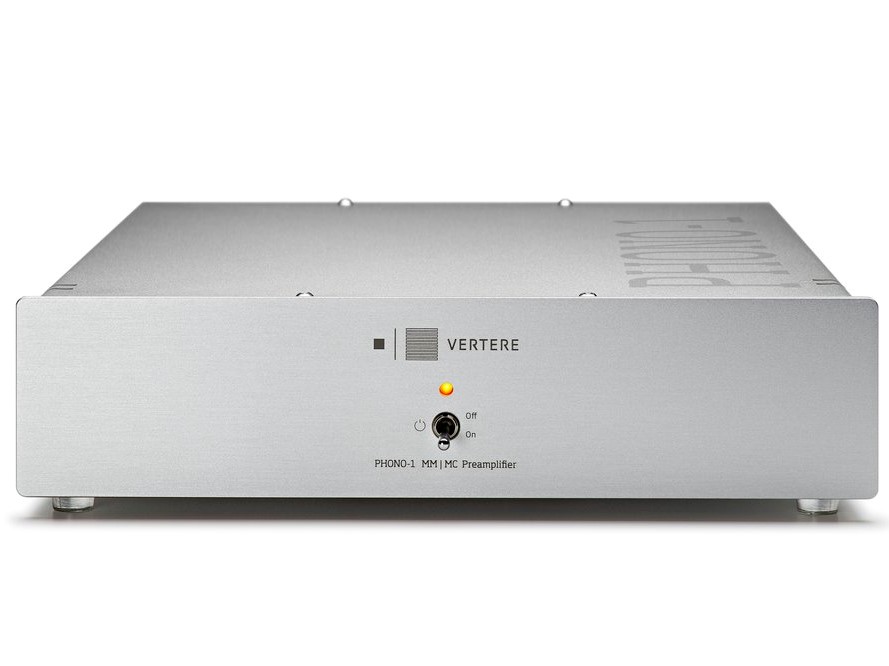

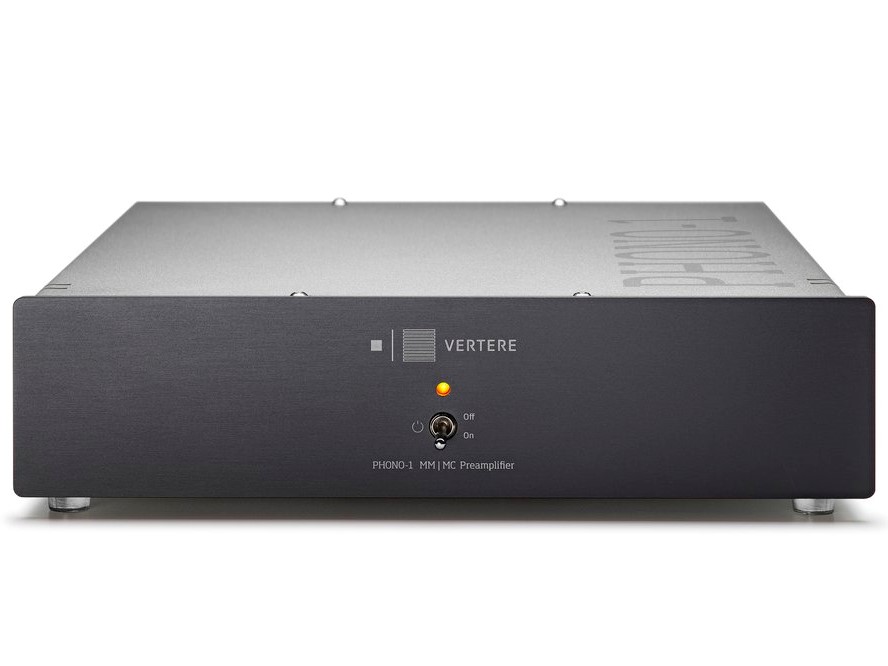

The new MC MM Preamplifier PHONO-1 MkII L gets the best from any high-quality record player, with maximum dynamic range and supreme detail resolution. With more than 10 gain settings, 15 resistance and 9 capacitance settings, PHONO-1 MkII L leaves nothing to chance. It makes the perfect match for almost any Moving Coil or Moving Magnet cartridge.

Features

• Realise the potential of any high-quality record player
• Superb dynamics and detail with extremely accurate RIAA linearisation
• Perfect level and load matching for Moving Coil and Moving Magnet cartridges
• Brings continuous enjoyment when playing records, without exception

Technology

• Gold Plated PCB Assembly New ‘L’ shaped high-quality gold plated PCBs for the main phono circuit and the mains power transformer ensure optimised grounding and power distribution. Stainless steel shield ensures that any unwanted interference is kept well away from the audio signal. Combined with the use of high-quality components and special solder, guarantee consistent optimum performance for the long term.
• Double Shielded Main Circuit Vertere’s PHONO-1 MM-MC Preamplifier utilises stainless steel shields to further enhance isolation of the RIAA and preamplifier circuits. All power supply components and circuits are outside of the main cover shield and away from any signal path.

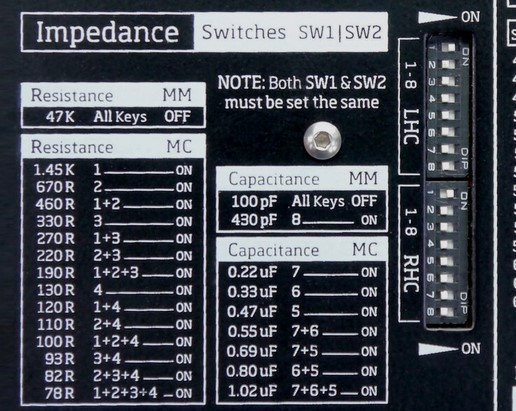

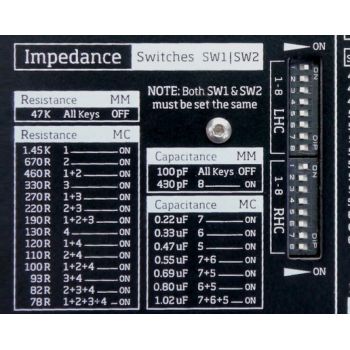

• Switchable Input Loading PHONO-1 MkII L has two switch banks, now easily accessible from the underside of the unit, that allow 15 resistance and 9 capacitance settings for left and right channels. Perfect load matching is crucial to maximising performance, for both Moving Coil and Moving Magnet cartridges – and in this respect PHONO-1 leaves nothing to chance.

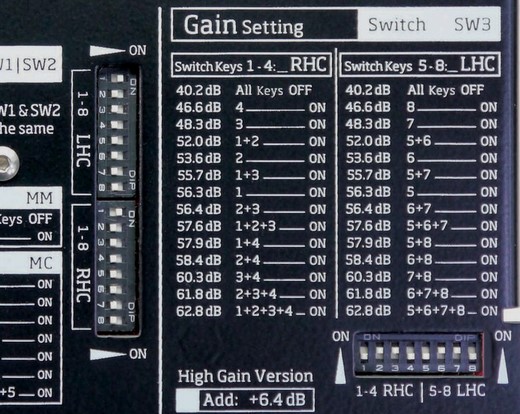

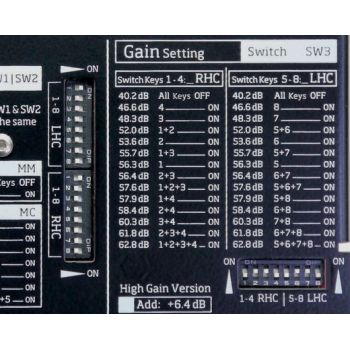

• Switchable Gain Setting Another switch bank, also easily accessible from the underside of the unit, offers no less than 10 gain settings to provide the best level matching, within the gain range provided. This ensures minimal level change between different sources used in the system.

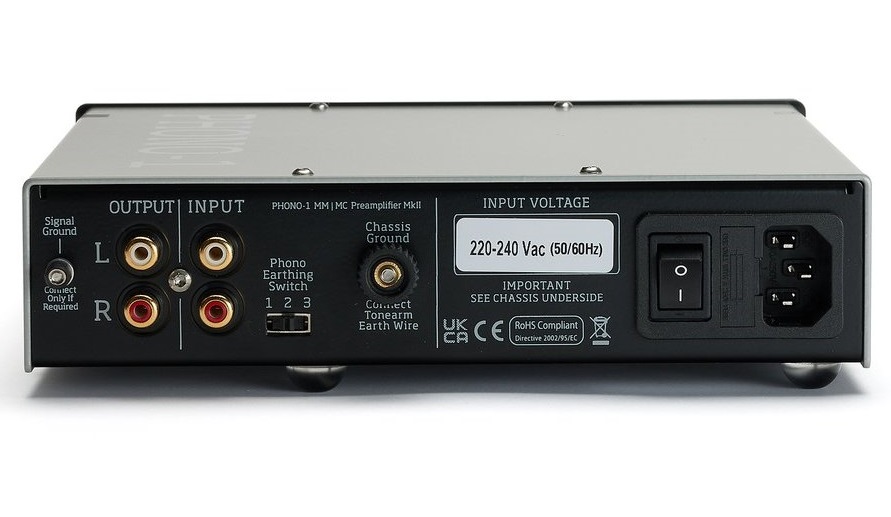

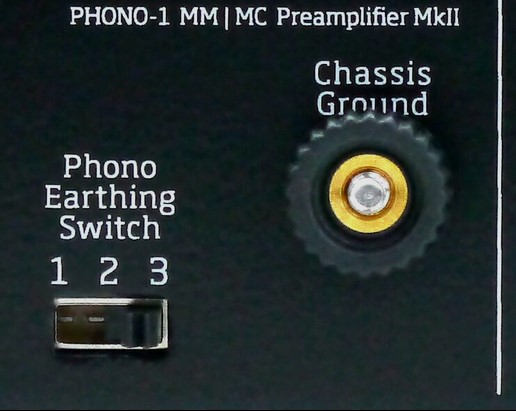

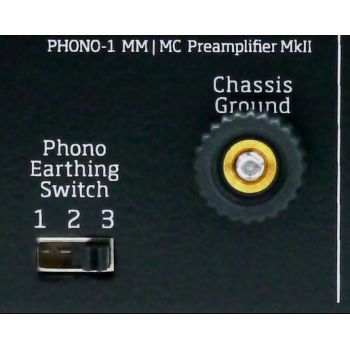

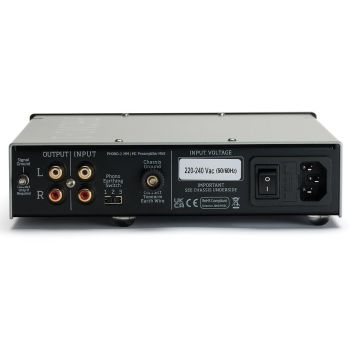

• Chassis Ground and PCB Earth Switch A 3-way switch provided at the back of PHONO-1 gives the options of ‘Hard Ground’, ‘Ground Lift’ or ‘Soft Ground’ connection of the preamplifier and the chassis, to minimise any hum that may be introduced between the PHONO-1 and the main amplifier.

Specifications

• Type MC/MM Preamplifier
• Main Phono Circuit on Separate Gold Plated PCB
• Power Supply Linear,  Int. Switchable Transformer on Separate Gold Plated PCB
• Gain Settings 40.2dB to 62.8dB In 10 Steps – See Manual, High Gain version - Add 6.4dB to all settings
• Input Impedance Settings Resistance 47k for MM 78R to 47K for MC - in 15 Steps - See Manual
• Capacitance 100pF & 470pF for MM, 100pF to 1.02uF for MC – In 9 Steps – See Manual
• Frequency Response 20Hz – 20kHz +/- 0.2dB
• Noise < -78dB – AWD
• THD-N 0.03%

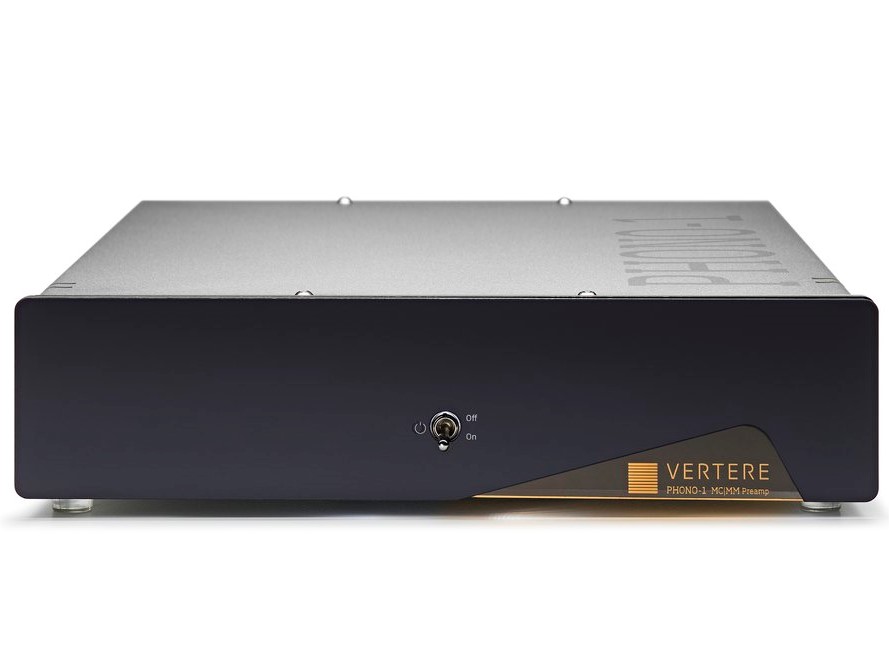

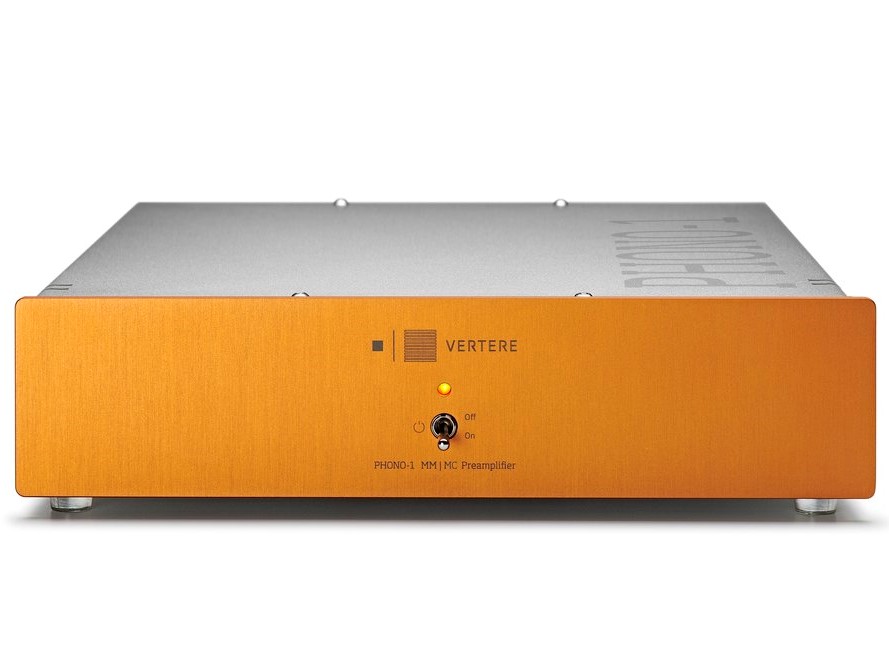

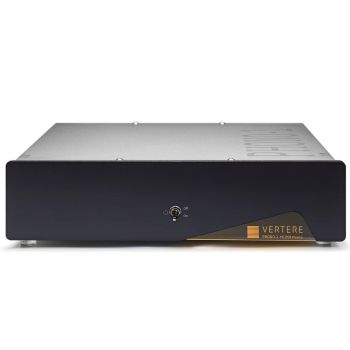

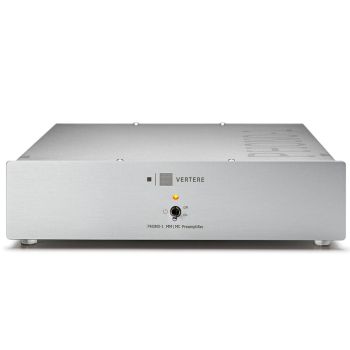

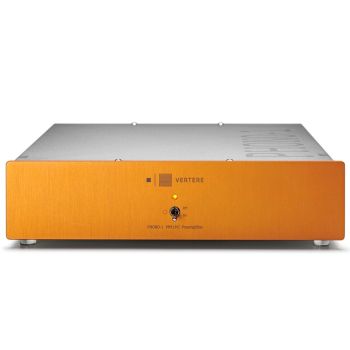

• Finish Front Panel Options: Vertere Orange, Silver, Black, DG-1 Gloss Black
• Dimensions 210 x 235 x 55mm W x D x H (Incl. Switches & Feet)
• Weight 2.00Kg
