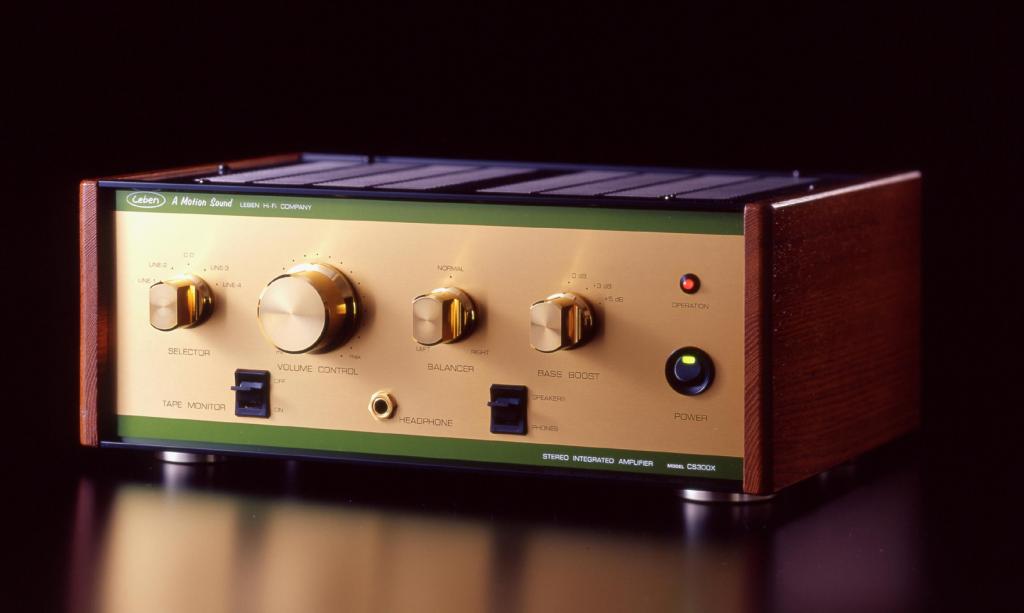

Leben CS-300XS
O Leben CS-300XS ειναι λοκληρωμενος δικαναλος ενισχυτης με λυχνιες , 2χ15wrms με EL84 Sovtek.
3650.00€
Άμεση Διαθεσιμότητα
ΔΩΡΕΑΝ ΑΠΟΣΤΟΛΗ ΣΕ ΟΛΗ ΤΗΝ ΕΛΛΑΔΑ
O Leben CS-300XS ειναι λοκληρωμενος δικαναλος ενισχυτης με λυχνιες , 2χ15wrms με EL84 Sovtek.
Small and powerfull tube EL84 made by Sovtek/Russia
- CS-300X(S) is equipped with SOVTEK Tube EL-84 which has been welknown by audiophiles for its high sound quality against its small size.
- A high input sensitivity of EL84 does not require a complicated circuit and accordingly, it can create a low distortion output signal.
HIGHEST-END AUDIO GRADE COMPONENTS
-
RESISTORS: Precision Industrial Grade +/-1%
-
FIRST-STAGE BY-PASS CONDENSOR: An ultimate audio condensor "OS Condensor" developped by "SANYO"
-
LAST-STAGE BY-PASS CONDENSOR: "Fine-Gold" by "NICHICON"
-
JOINT CONDENSOR: "Metalized Polypropylene Condensor" with "Mesh-Shielding".
-
NF OVERSHOOT PREVENTION CONDENSOR: Ceramic Conderser.
-
CATHODE RESISTOR: 4W type.(Instead of 3W type)
-
OUTPUT TRANSFORMER: Newly developped Transformer with wider range for high frequency.
-
WBT type binding post.(From April/05 delivery onward)/li
OTHER LUXURIOUS PARTS
-
Tube Shield-Base: 24K gold plated.
-
SIDE-WOOD PANEL: Canadian White-Ash".
FULL FUNCTIONS FOR INTEGRATED AMP.
-
TAPE MONITOR.
-
HEADPHONE OUTPUT.
-

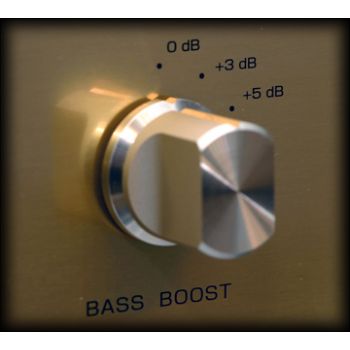

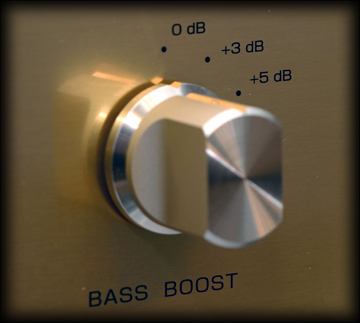

BASS BOOST SWITCH
-
SPEAKER/HEADPHONE SELECTOR.
-
VARIABLE OUTPUT IMPEDANCE: 4/6/8 OHMS.
-
Operation Lamp Indicator.
-
On-Switch Power Indicator LED.
CS-300X(S) SPECIFICATIONS
| TUBES EQUIPPED | EL84(SOVTEK) X 4 12AX7A(Sovtek) X 2 |
|---|---|
| OUTPUT POWER | 15W X 2 |
| FREQUENCY RESPONSE | 15Hz - 100KHz (-2 dB) |
| DISTORTION | 0.7%(10W) |
| INPUT SENSITIVITY | 600mV |
| INPUT IMPEDANCE | 100K Ohms |
| OUTPUT IMPEDANCE | 4/6/8 Ohms (Selectable) |
| POWER CONSUMPTION | 82W |
| WEIGHT | 10.5 Kgs. |
| DIMENSIONS | 360 (W) X 270 (D) X 140 (H) mm |
| ATTACHMENT | Detachable AC Power Cable x 1 |
