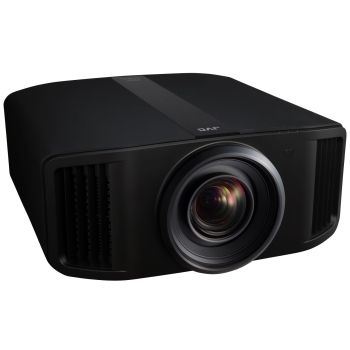

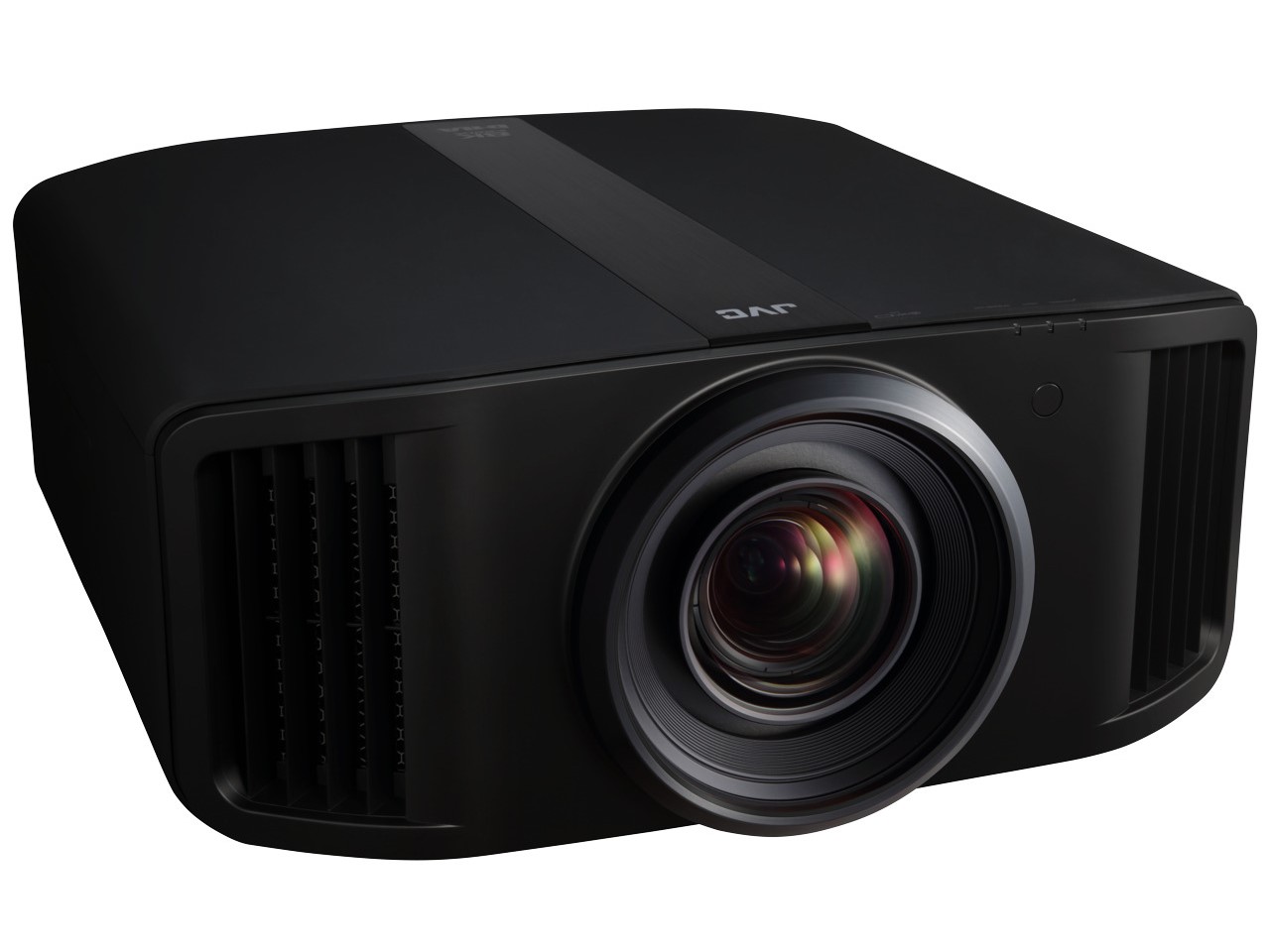

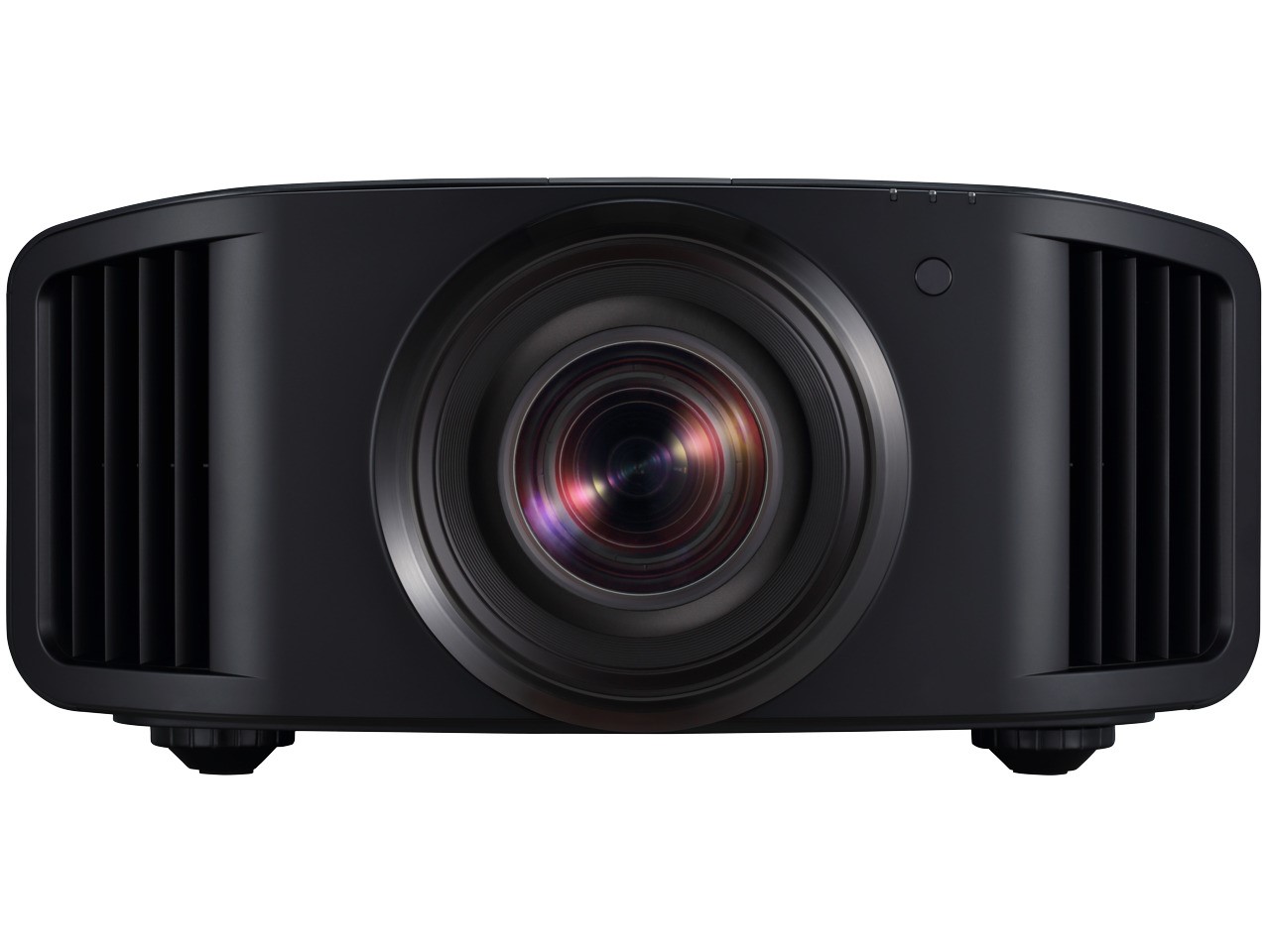

Ο JVC DLA-NZ900 ειναι ενας βιντεοπροβολεας 4096x2160 pixels (native 4K), φωτεινοτητας 3300 lumens, εφοδιασμενος με συστημα μετατοπισης pixels για εικονικο 8Κ (e-shiftX 8K). Υποδοχη σηματων 8K/60Hz ή 4K/120Hz.

Εγγυηση Αντιπροσωπειας LEC Hellas. Δυνατοτητα δοσεων.

Gen3 0.69-inch Native 4K D-ILA Devices (x3) / 150,000:1 native contrast, New BLU-Escent Laser 3,300-lumen, Gen2 "8K/e-shiftX" , Gen2 Frame Adapt HDR with Deeper Blacks, New Picture mode “Vivid”.

Specifications

• Device
  • D-ILA Technology Yes
  • Chip Type 3rd Generation 0.69-inch 4K D-ILA device
  • Native Resolution 4096 x 2160
  • Number Of Chips 3
  • 8K/e-shiftX Yes
  • Display Resolution 8192 x 4320
• Light Source
  • Laser Yes
  • Type New BLU-Escent Laser Diode
  • Life Time (Standard Mode) 20000 hours
• Picture
  • Brightness 3300 lm
  • Dynamic Contrast ∞ : 1
  • Native Contrast 150000 : 1
  • Dynamic Light Power control Yes
  • Modes Mode 1 (gentle), Mode 2 (strong), Off
  • Manual Aperture Yes
  • Range -15 (stops down) to 0 (opens up)
  • DCI-P3 Color Gamut Yes
  • 100% REC 709 Yes
  • Color Bit Depth 12 bit
  • ISFccc Certification Yes
• HDR
  • HDR10 Yes
  • HDR10+ Yes
  • Frame Adapt HDR Yes
  • Theater Optimizer Yes
  • HLG Yes
  • Auto Tone Mapping Yes
  • Mastering Info Display Yes
  • Info data MaxCLL and MaxFALL mastering data
  • HDR Picture Modes BT.709 / BT.2020 / DCI / HDR
• Lens
  • Zoom 2 x
  • Throw Ratio 1.35-2.75:1
  • Diameter 100 mm
  • Material All-glass
  • Build 18-element, 16-group in full aluminium lens barrel.
  • Lens Shift Yes
  • Range Horizontal ± 43 %
  • Range Vertical ± 100 %
  • Motorized Zoom Yes
  • Motorized Shift Yes
  • Motorized Focus Yes
  • Projection Display size (diagonal) 60 - 300 inch
  • Memory Function Yes
  • Number of user presets 10
  • Lens Cover Yes
• HDMI
  • HDMI Yes
  • Number of Inputs 2
  • Data Rate 48 Gbps
  • HDCP Version 2.3
  • 8K60P signal input Yes
  • 4K120p signal input Yes
  • 4K60P signal input Yes
  • Video Signal range 480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 7680 x 4320p 60/ 50/ 30/25 /24
  • PC Signal range VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / WSXGA+ / UXGA / WUXGA / WQHD (60) / WQHD (120)
  • Input Level Adjustment Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
  • Color Space Range Auto/ YCbCr4444 / YCbCr422 / RGB
  • EDID Modes A and B (older hardware may need to use B settings)

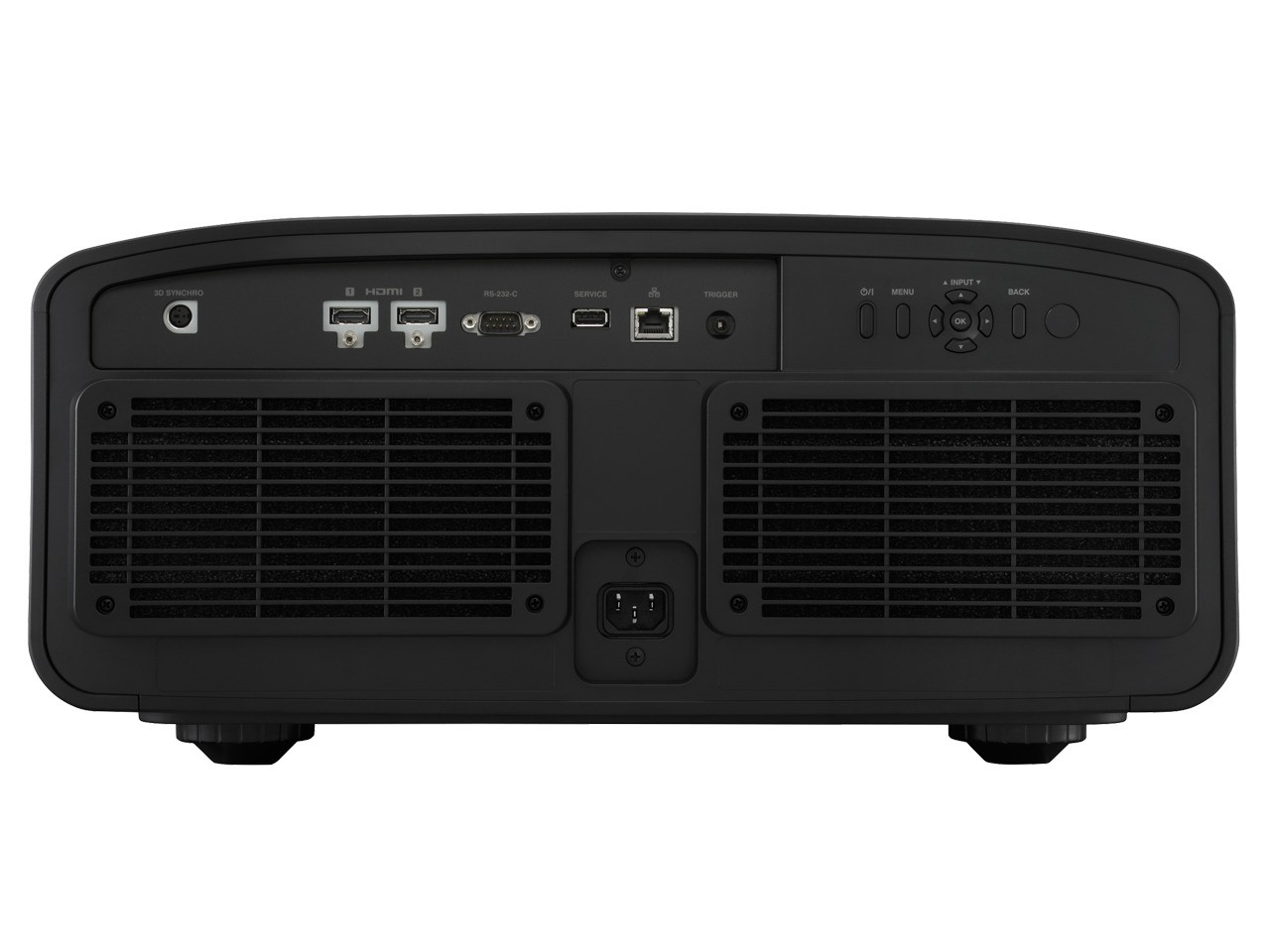

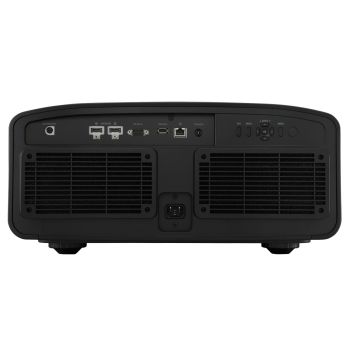

• Connections
  • Trigger out Yes
  • Connector Mini-Jack (3,5mm)
  • Power DC 12V / 100mA
  • 3D Synchro Yes
  • Connector Mini DIN 3-pin
  • LAN Yes
  • Connector RJ45
  • RS-232 Yes
  • Connector D-sub 9-pin
  • Service Yes
  • Connector USB (Type A) for firmware update or backup
• 3D
  • 3D Capability Yes
  • 3D Versions Frame Packing, Side-by-Side, Top & Bottom
  • Frame Packing Resolutions 720p 60/50, 1080p 24
  • Side-by-Side Resolutions 720p 60/50, 1080p 60/50/24, 1080i 60/50
  • Top & Bottom Resolution 720p 60/50, 1080p/24
  • 3D Emitter (Optional) Yes, PK-EM2
  • 3D Glasses (Optional) Yes, PK-AG3
• Picture Settings
  • Picture Modes Natural, Cinema, Film, Vivid, HDR10+, Frame Adapt HDR, HDR10, HLG, Pan_PQ, 6 User modes
  • Color Temperatures Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
  • Gamma Processing Depth 12 bit
  • Gamma Adjust HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Film 1, Film 2, Pana_PQ, 3 Custom modes
  • Color Management 6-Axis adjustable CMS
  • MPC Yes
  • Filmmaker Mode Yes
  • Low Latency Mode Yes
  • Clear Motion Drive Yes
  • Motion Enhance Yes
  • Auto Calibration Yes
  • Optional Probe needed Yes
  • Installation Mode Yes
  • Number of modes 8
  • Included settings Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect
  • Anamorphic Modes 4 Modes (A, B, C, D)
  • Control4 SDDP Yes
• Power & Environment
  • Power Requirement AC100-240V, 50/60Hz
  • Projector in Use 440W
  • Standby Eco-mode: 0.3W
  • Network Standby 1.5W (LAN)
  • Fan Noise 24 dB
  • Eco Mode Yes
  • Standby Timer Yes
  • Operating Temperature 5°C to 35°C
  • Operating Humidity 20% to 80%
  • Installation Angle Horizontal +/- 5 degree / Vertical +/- 10 degree
  • Installation Height Below 2,000 m
• In the box

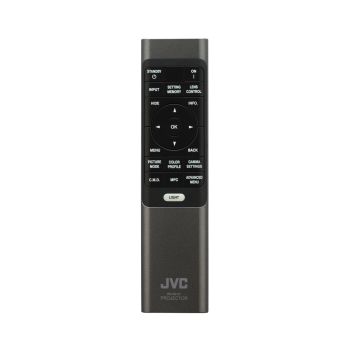

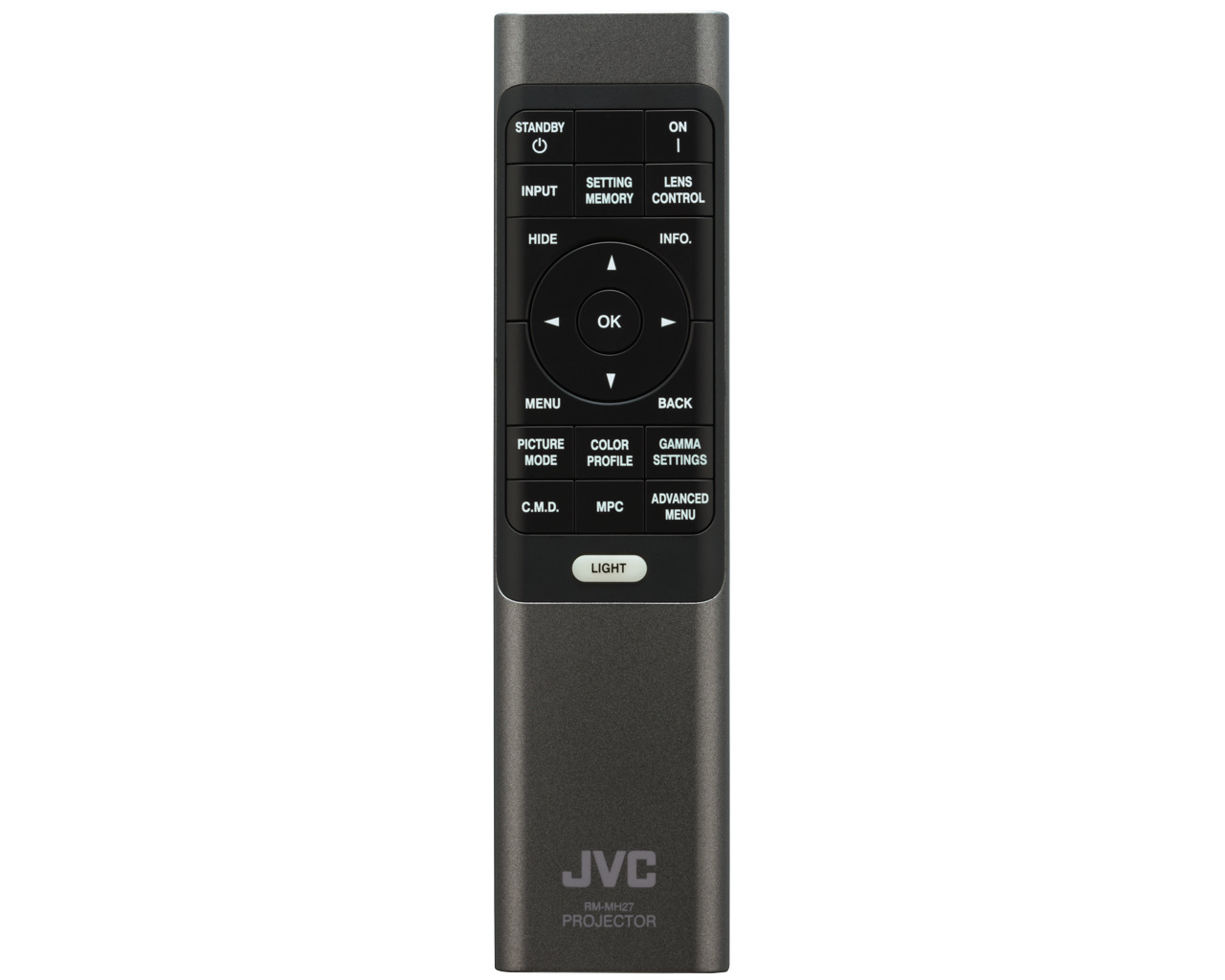

  • Remote Control Yes, RM-MH27
  • User Manual Yes
  • Power Cord Yes
  • Batteries Yes, 2 x AAA-size batteries
• Dimensions & Weight
  • Product Dimensions (WxHxD) 19-11/16 x 9-7/32 x 20-13/16 (inch)
  • Product Weight 55.7 Lb
