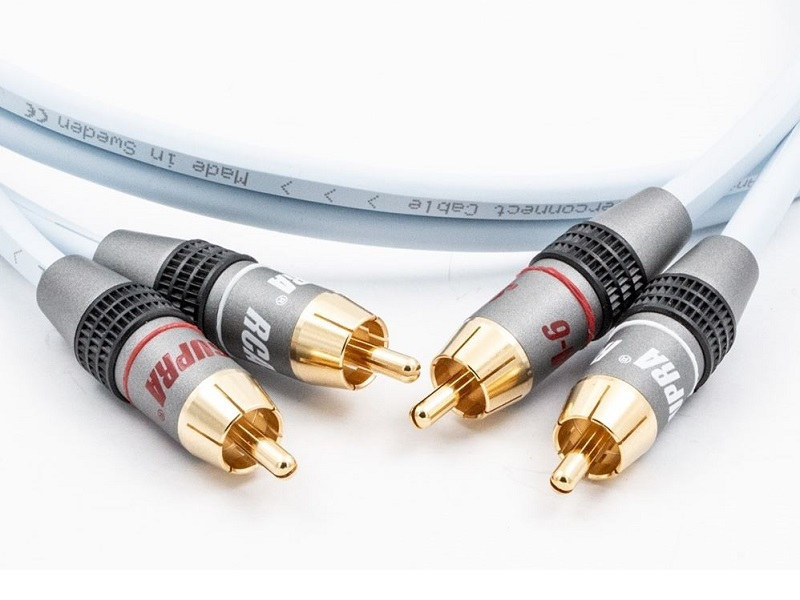

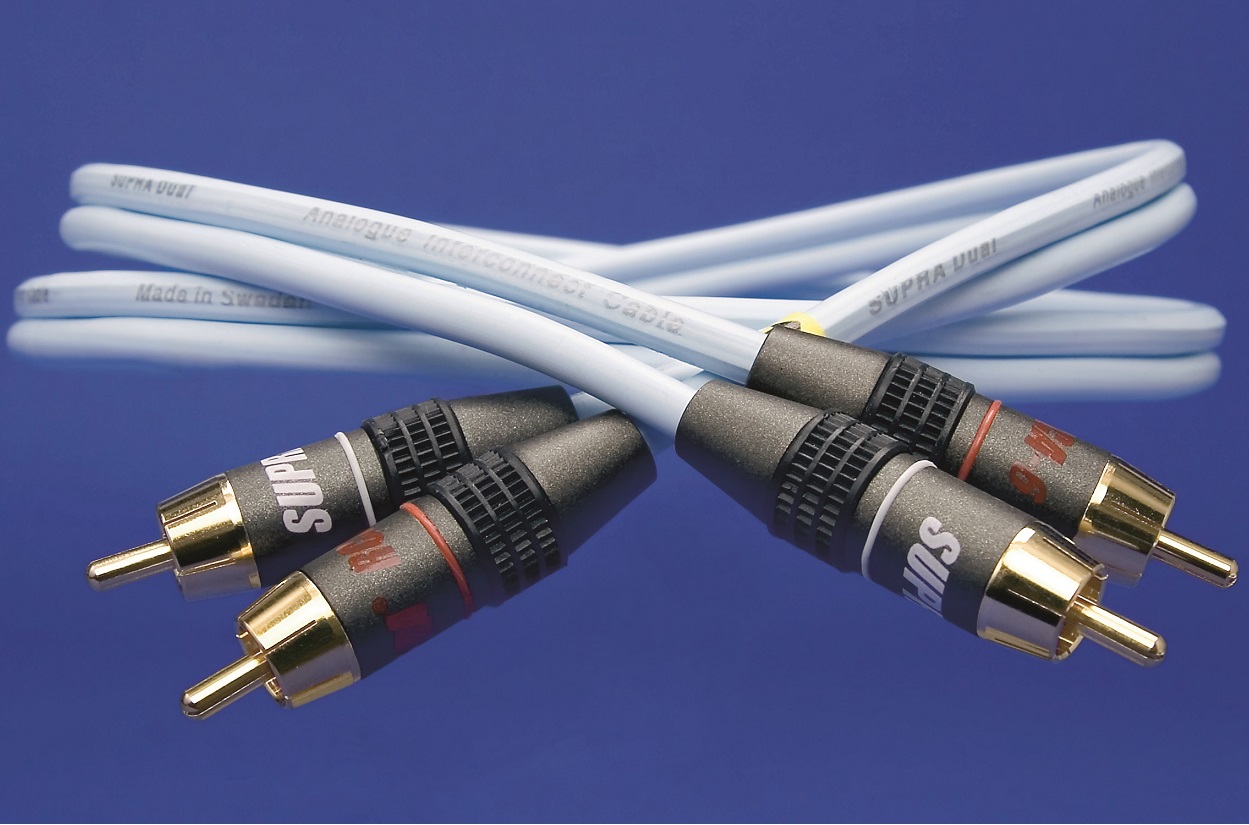

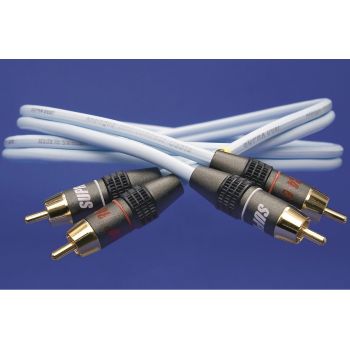

Το Supra Dual ειναι αναλογικο interconnect με ακροδεκτες τυπου RCA . Supra Dual is a simple figure-eight style cable comprising two separate indidividually shielded tin-plated OFC conductors.
Electrical properties
Resistance | 72 | ? / km |
Capacitance | 52 | pF / m |
Characteristic impedance | n/a | ? |
Velocity factor | 0.66 | x C (speed of light) |
Number of leads, totally (specified) | 6 (+, - and drain x 2 channels) | pieces |
Lead area | 0.24 | mm2 |
Number of strands per lead | 19 | pieces |
Strand dimension | Ø 0.127 | mm |
Lead material | Tin plated, oxygen-free, 5N copper | |
Di-electric (insulation) | PE | |
Shield | 2 (Individual aluminized PET foil per each channel ) | pieces |
Jacket | Age and heat resistant PVC | |
Outer dimension | 2 x Ø 5.5 | mm |
Weight | 70 | g/m |
Cable length per bobbin | 100 | m |
