Ο Mark Levinson No 5302 ειναι τελικος ενισχυτης 2x 135 watts at 8 ohms.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

Build your system on the ultimate bedrock

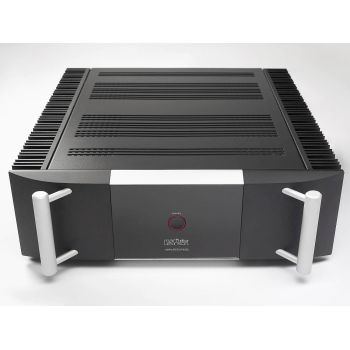

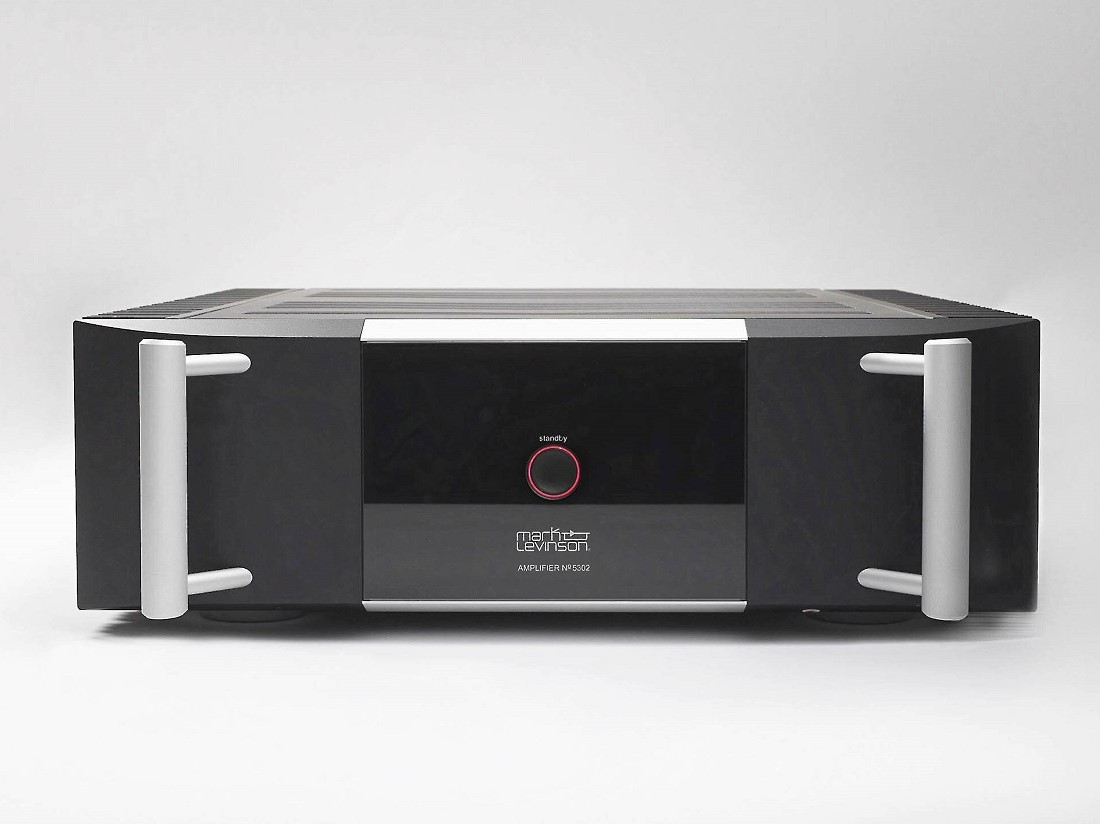

The Mark Levinson No.5302 features a beautiful curved aluminum and glass front panel. Its 1"-thick aluminum chassis flows seamlessly into an elegant glass display with a single standby button in the center. Two solid aluminum handles on the front and massive heat sinks on each side give it the visual symmetry of a modern concert pavilion.

Refined industrial cosmetic design is a Mark Levinson hallmark. But in this case, it's functionally useful, too. Those handles will be come in handy when moving all 70 pounds of this discrete, direct-coupled, dual monaural Class AB amplifier. And those heat sinks will keep it running cool.

High-current output
The '5302's voltage gain stage topology descends directly from Mark Levinson's revered No.534 amplifier. The foundation is a beastly 1100 VA toroidal transformer with individual secondary windings for both channels. From there, four 10,000 microfarad capacitors per channel deliver lots of high-current power — 135 watts x 2 into 8 ohms, and 270 watts x 2 into 4 ohms, with stable operation down to 2 ohms. In plain terms, it can cleanly power practically any speaker set you choose.

Specifications

• dual monaural Class AB amplifier
• 135 watts x 2 into 8 ohms (20-20,000 Hz) at <0.35% THD
• 270 watts x 2 into 4 ohms
• bridged mono mode: 275 watts into 8 ohms, 550 watts into 4 ohms
• total harmonic distortion, stereo mode into 8 ohms: <0.04% at 1kHz; <0.35% at 20kHz
• 1100 VA (Volt-Amp) toroidal transformer
• aluminum infrared (IR) remote included
• No.5000 Series signature curved aluminum and glass front panel design
• solid aluminum handles

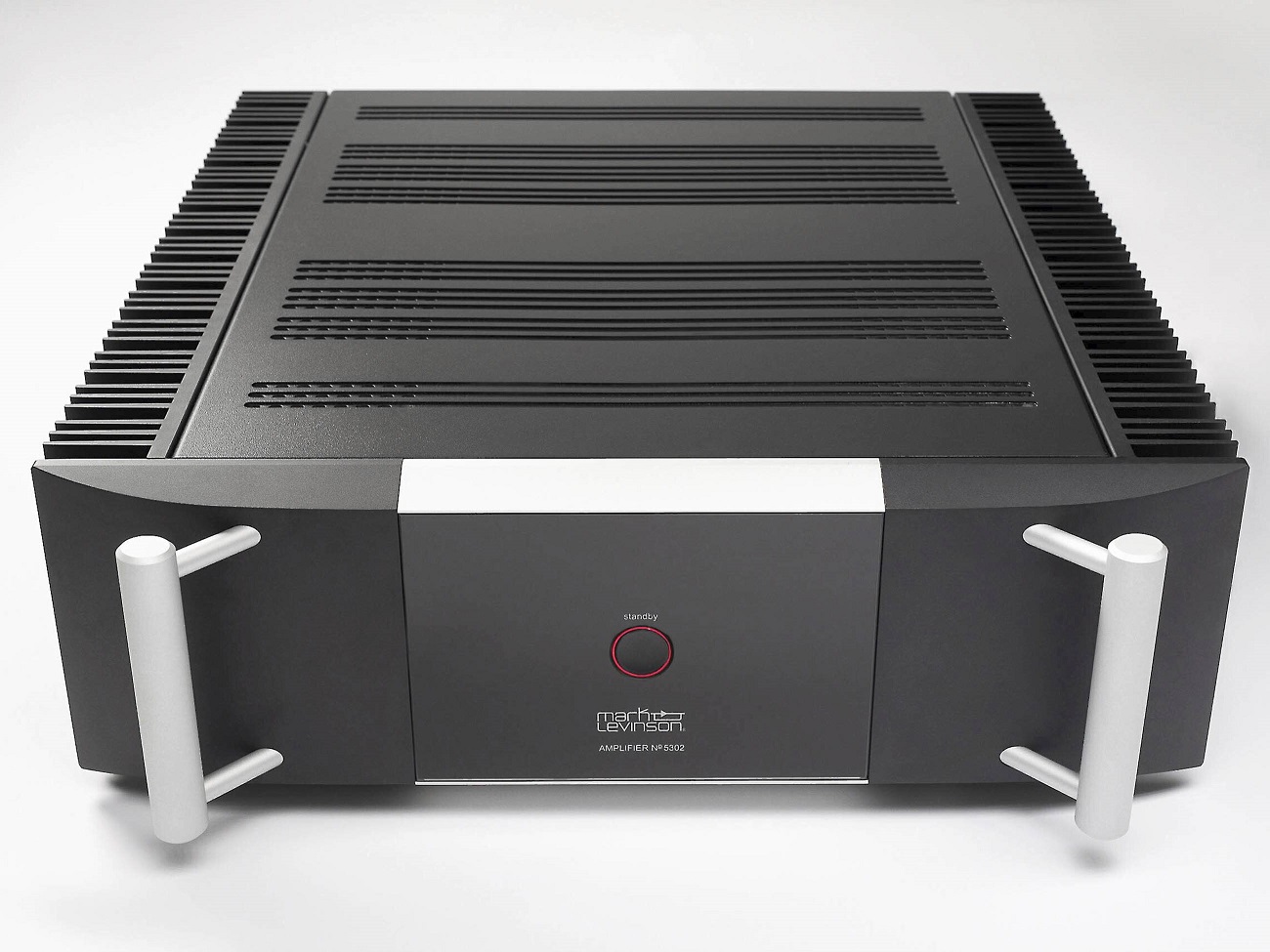

• massive heat sinks on each side
• one large standby button with light ring that indicates power states

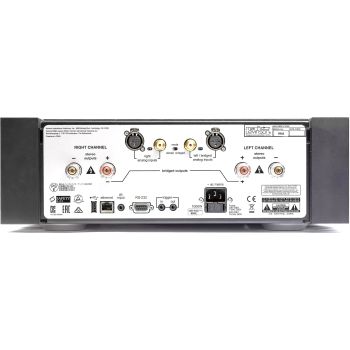

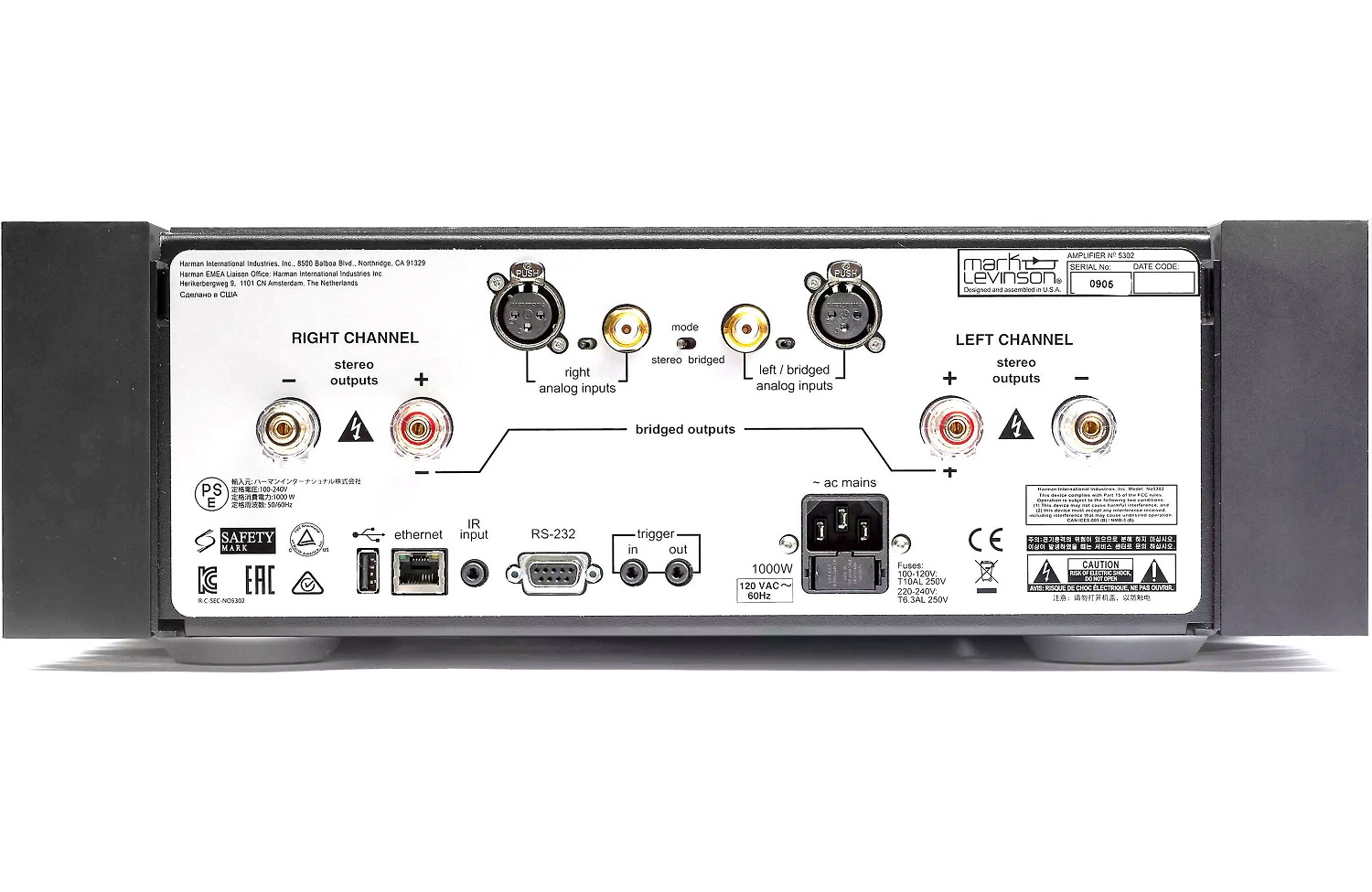

Connections:

• 1 pair balanced line-level XLR inputs
• 1 pair single-ended line-level RCA inputs
• 3-way binding post speaker terminals accept bare wire (up to 10-gauge), single banana plugs, and spade lugs
• rear-panel USB Type-A port for firmware updates
• control ports include Ethernet (RJ-45), RS-232, 12V trigger input/output and IR input (3.5mm jack)

Dimensions:

• 17-1/4"W x 5 3/4"H x 20-3/4"D
• weight: 70 lbs.
