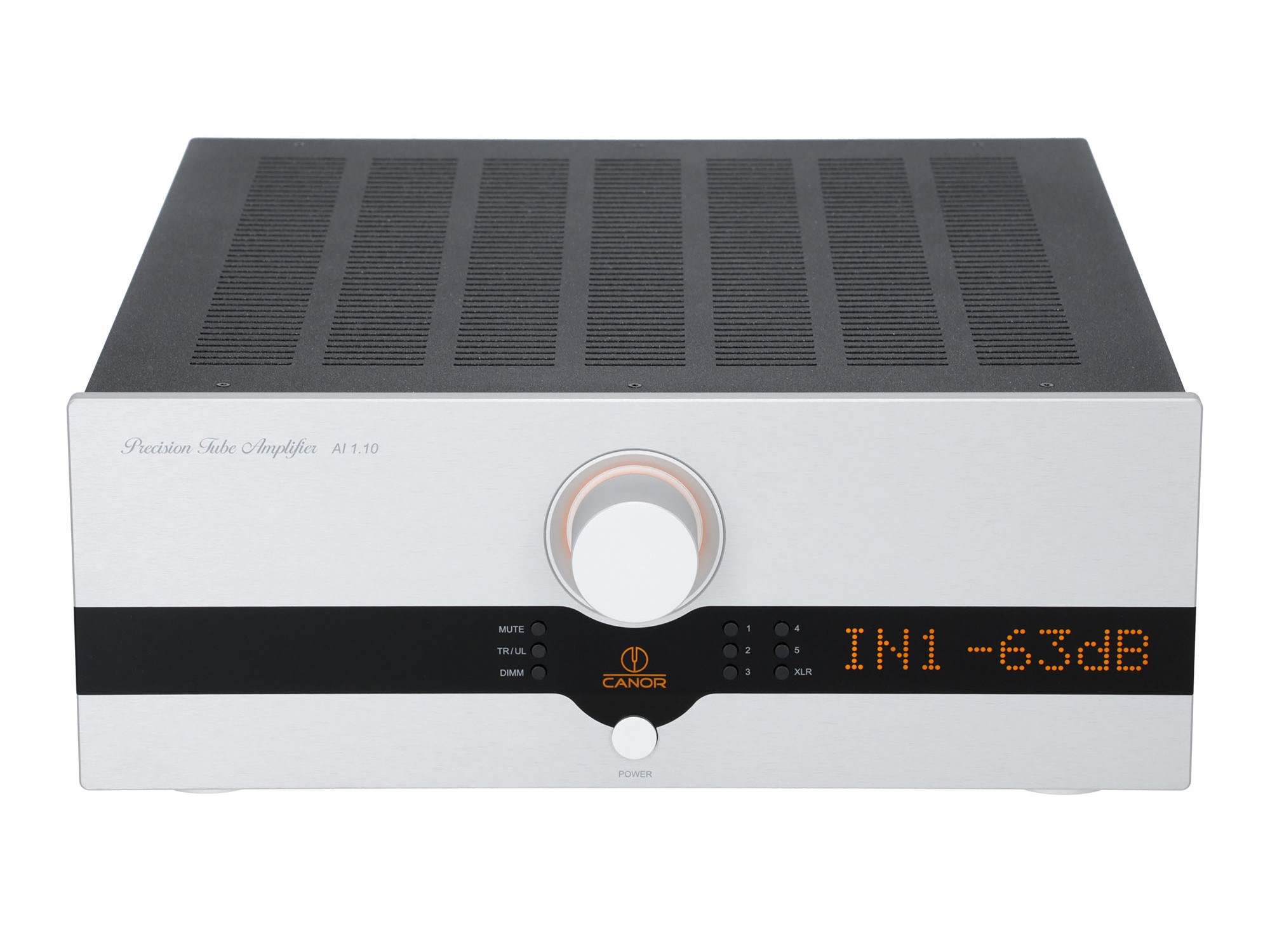

Ο Canor AI 1.10 ειναι ολοκληρωμενος ενισχυτης class-A με λυχνιες, ισχυος 2x20 watts/4-8Ω triode ή 2x40 watts/4-8Ω ultralinear.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

Features

• an integrated tube amplifier in class A with an output power of 2 x 40 W
• KT88 high-power tubes with autobias with a cathode feedback
• an option to immediately switch between triode and ultra-linear mode
• PCB’s utilize our premium CMT ™ technology
• perfect separation of channels by using a relay attenuator / standalone blocks for each channel/gain control by 1 dB and maximum attenuation of 63 dB
• the independently powered control part
• filter capacitors with high capacitance deliver energy to accurate and tight basses
• only use high-quality polypropylene capacitors have been used in the signal path
• absolute selection and tubes matching with above-average parameters
• an option of synchronous control enables the use of two amplifiers in a monoblock mode without the need of using an extra preamplifier and that is a Master/Slave mode with an output power of 80 W per channel

Specifications

• Stereo output power     2 x 40 W / 4, 8 Ω – ultra-linear, 2 x 20 W / 4, 8 Ω – triode
• Gain     30 dB (at 8 Ω), 28 dB (at 4 Ω)
• Inputs sensitivity     500 mV
• Frequency range     10 – 50 000 Hz -0,5 dB / 5 W
• Input impedance     30 kΩ

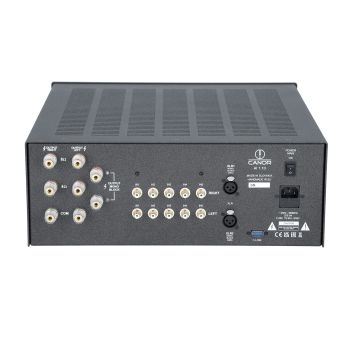

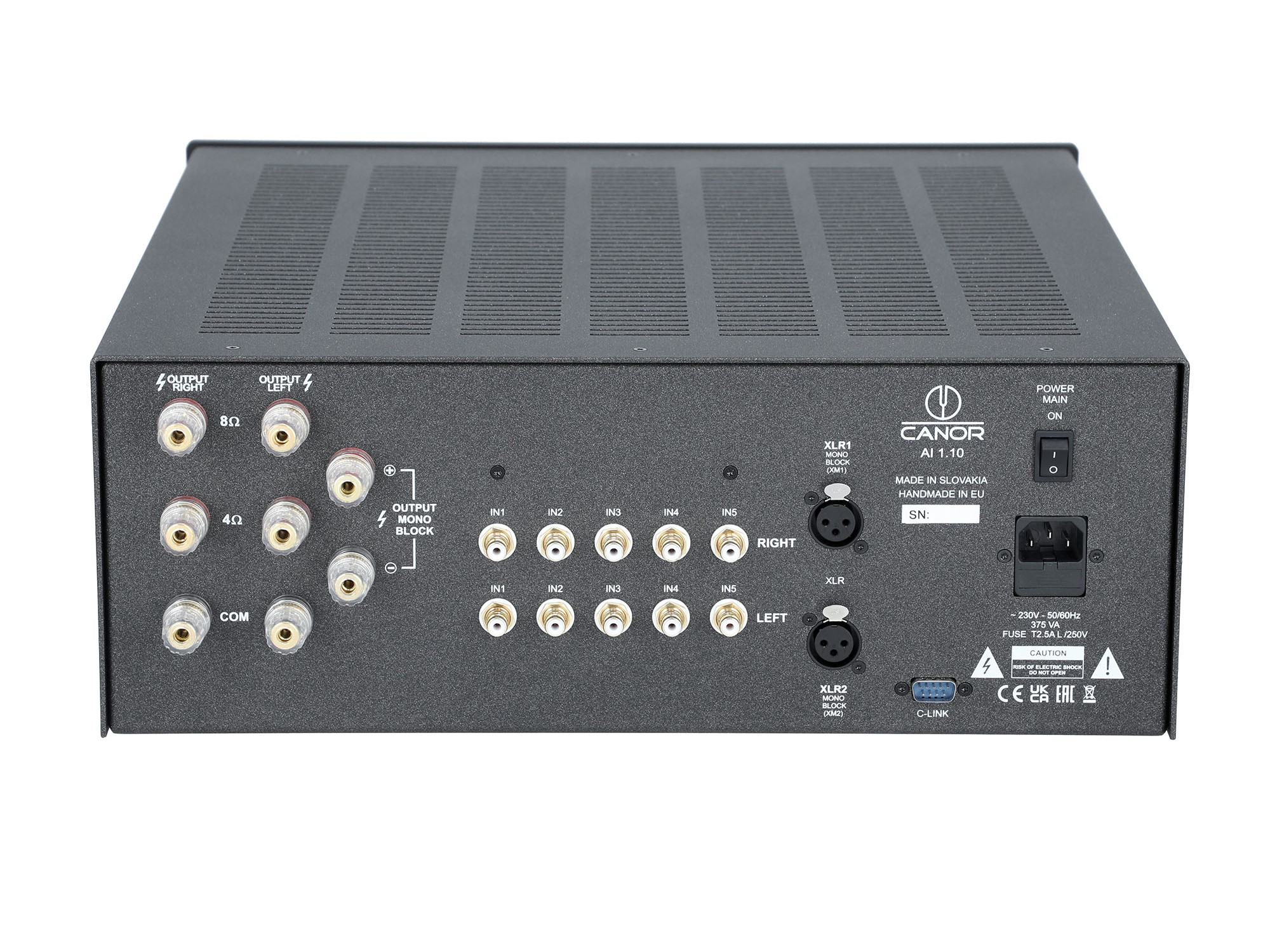

• Inputs     5 x RCA, 2 x XLR (XLR active only in monoblock connection)
• Total Harmonic Distortion     < 0,05% / 1 kHz, 5 W
• Signal-to-noise ratio     > 95 dB
• Signal-to-noise ratio monoblock     > 100 dB
• Filtration capacity     2200uF / 500V
• Damping factor at 4 Ω load at the output     9 (based on measured output impedance)
• Damping factor at 8 Ω load at the output     10,5 (based on measured output impedance)
• Tube complement     4 x KT88 / 1 x 12AX7 / 2 x 12AT7
• Power     230 V / 50 Hz / 375 VA
• Dimensions (w x h x d)     435 x 170 x 485 mm
• Weight (net)     26 kg
